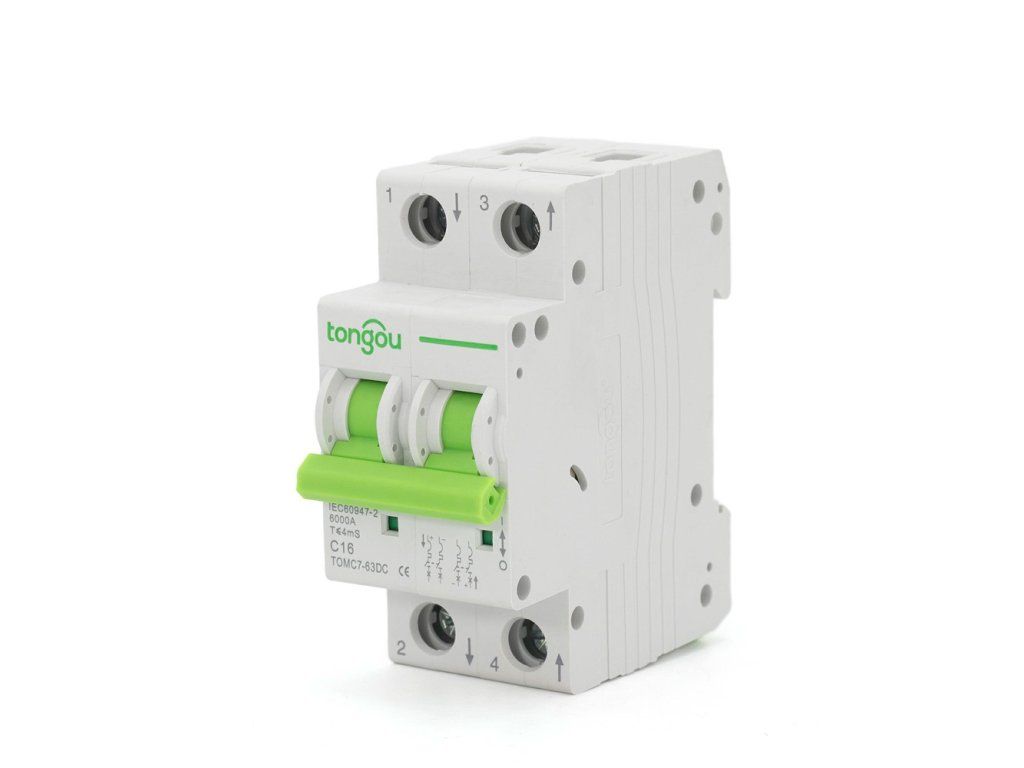

Circuit breaker DC 10A/C 2P Tongou TOMC7-63 for DIN rail

Product detailed description

Circuit breaker for DC voltage for use mainly in conjunction with photovoltaic panels. TECHNICAL SPECIFICATIONS: - Model: TOMC7-63/2/C63/DC - Number of poles: 2 - Rated working voltage: 440VDC - Maximum working voltage: 550VDC - Delay: 4ms - Applicable voltage range: 12-500VDC - Rated current: 10A - Tripping Characteristic: C - Rated short-circuit strength: 6kA - Rated impulse withstand voltage: 6.2kV - Electromechanical resistance: 6000 cycles - Connection capacity: rigid conductor up to 25mm2, flexible up to 16mm2 - Protection: IP20
