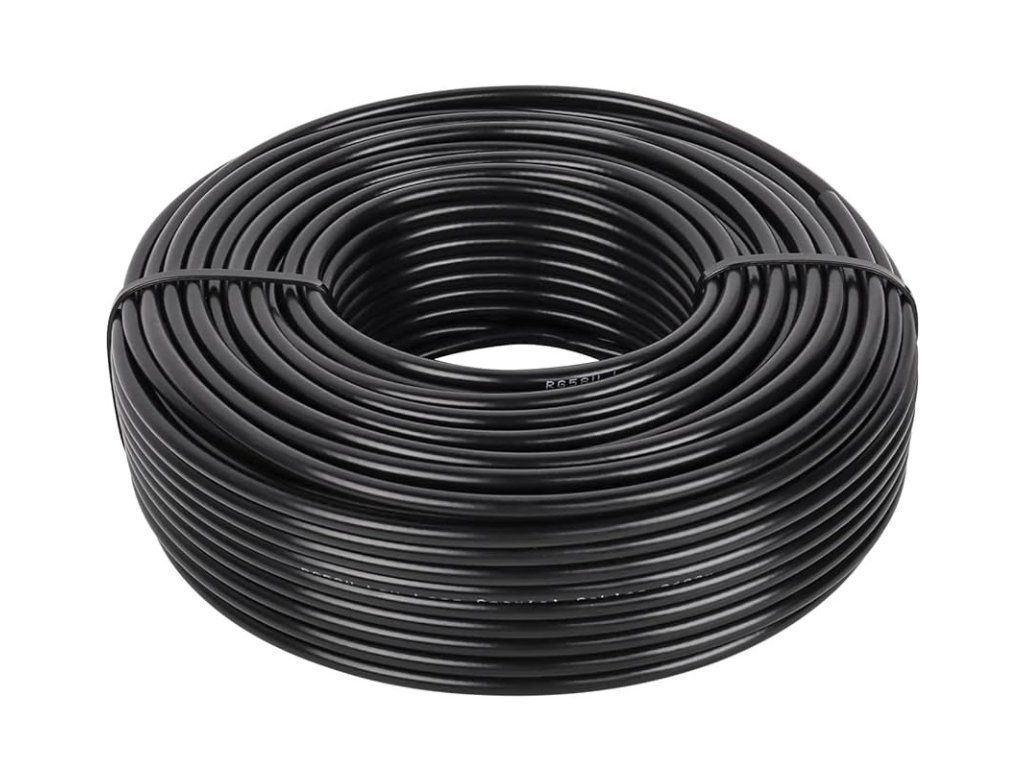

Coaxial cable RG58A-U CU, 50 ohm, 5mm, 100m black - LICNA

Product detailed description

5 mm diameter coaxial cable for indoor satellite and cable distribution. Colour black, impedance 50 ohm. 100 m pack. Product parameters: Name: RG58A-U CU (50 ohm) Impedance: 50 ohm Color: Black Design: Indoor Marked gauge Package: 100 m (coil) Inner conductor: 19×0.18mmCu Dielectric: PE 2,9mm Shielding: Al+48×0,12Cu Diameter through sheath: 5 mm Sheath material: PVC Cable type CU (Copper - copper conductor) 19×0,18mmCu+PE+Al+48×0,12Cu+external insulation Operating and storage temperature: -30°C to +70°C Attenuation at 50 MHz - 100m [dB]: 8.5 Attenuation at 1000 MHz - 100m [dB]: 36
