Complete kit PNI AP800C self-supporting gate, 6m, 800kg
Code: PNI-AP600CProduct detailed description

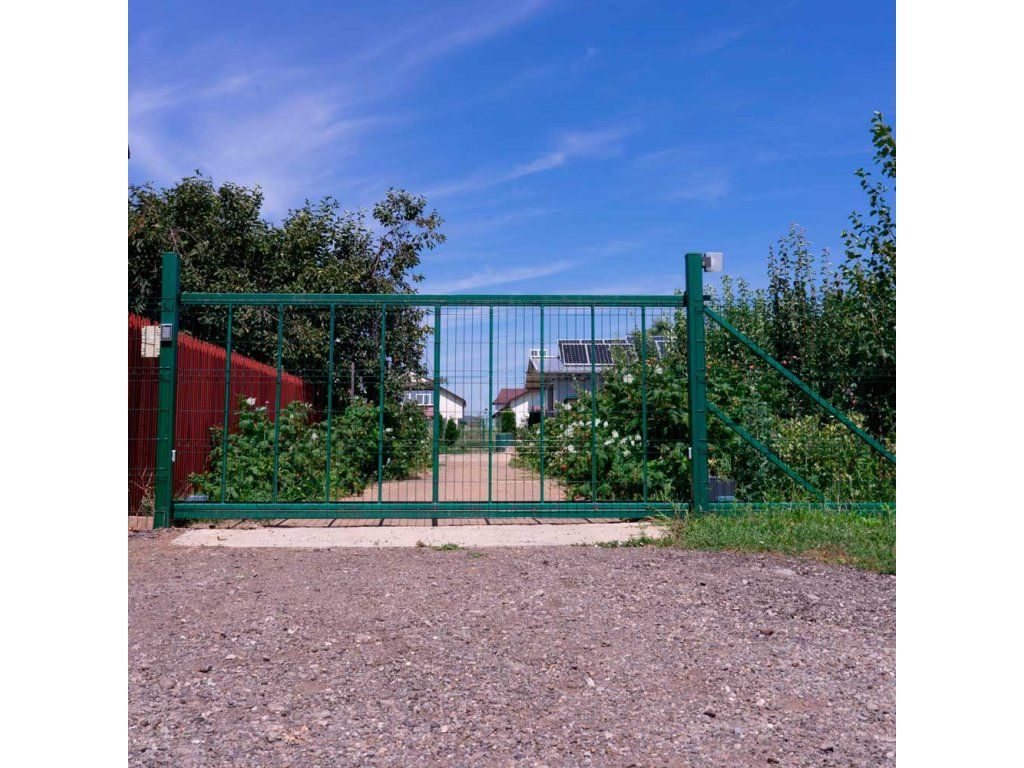

PNI AP800C | Heavy-Duty Cantilever Gate Automation System
Upgrade your property’s security and convenience with the PNI AP800C, a robust and reliable solution designed for self-supporting (cantilever) sliding gates. Engineered to handle heavy-use environments, this system combines power with intelligent safety features.
Technical Specifications
- Motor Power: 350W
- Maximum Gate Weight: 800 kg
- Rack Length: 6 meters (included)
- Opening Capacity: Optimized for a 4.5m opening with a 1.5m counterbalance tail.
- Note on Scaling: For larger installations, the counterbalance (tail) should follow a 1:3 ratio (e.g., a 7.5m opening requires a 2.5m tail).
Key Features

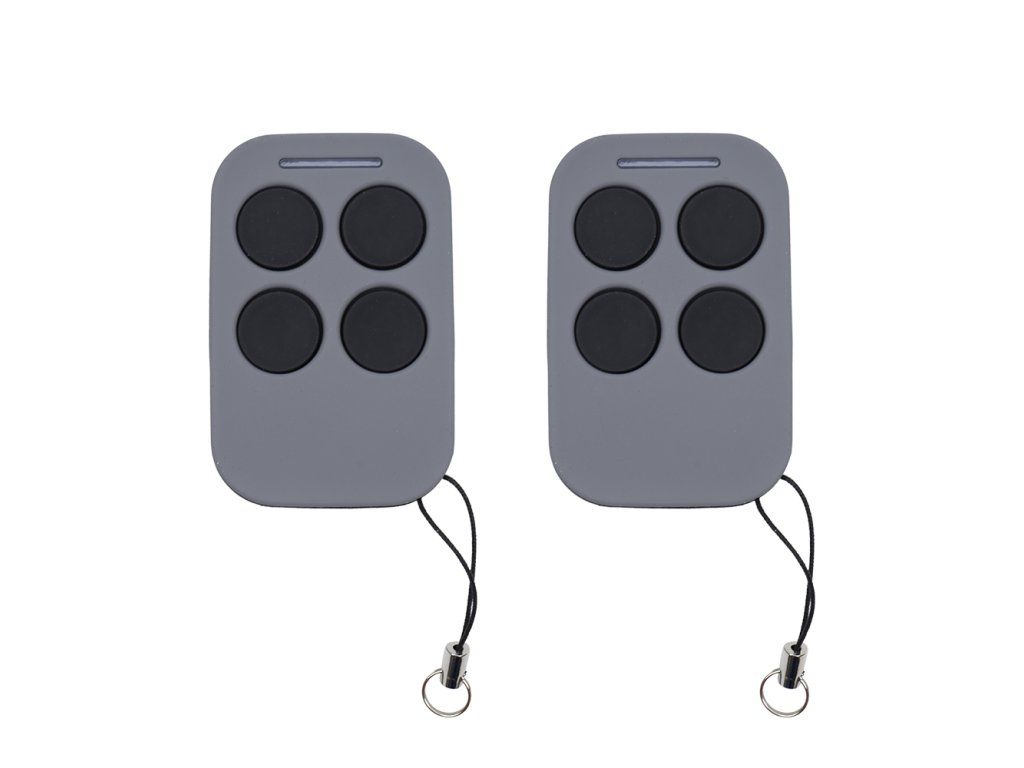

- Advanced Control & Access - operate your gate with ease using the included remote controls. For enhanced access management, the system is fully compatible with external accessories such as:
- Push buttons
- Access control keypads
- RFID readers
- Intelligent Safety & Obstacle Detection - Your safety is our priority. The PNI AP800C features an adjustable obstacle detection system with two sensitivity levels (High/Low). If the gate encounters an object while opening or closing, the motor stops instantly to prevent damage or injury.
- Programmable Auto-Close - Never worry about leaving the gate open again. You can program the system to close automatically after 10, 30, or 60 seconds.
- "Condominium Mode" (Smart Multi-User Access) - Ideal for shared residential complexes or busy commercial sites:
- During Opening: Commands from other remotes are ignored until the gate is fully open, preventing mechanical strain.
- During Closing: If a remote is pressed, the gate immediately stops and reverses to the fully open position to allow safe entry.

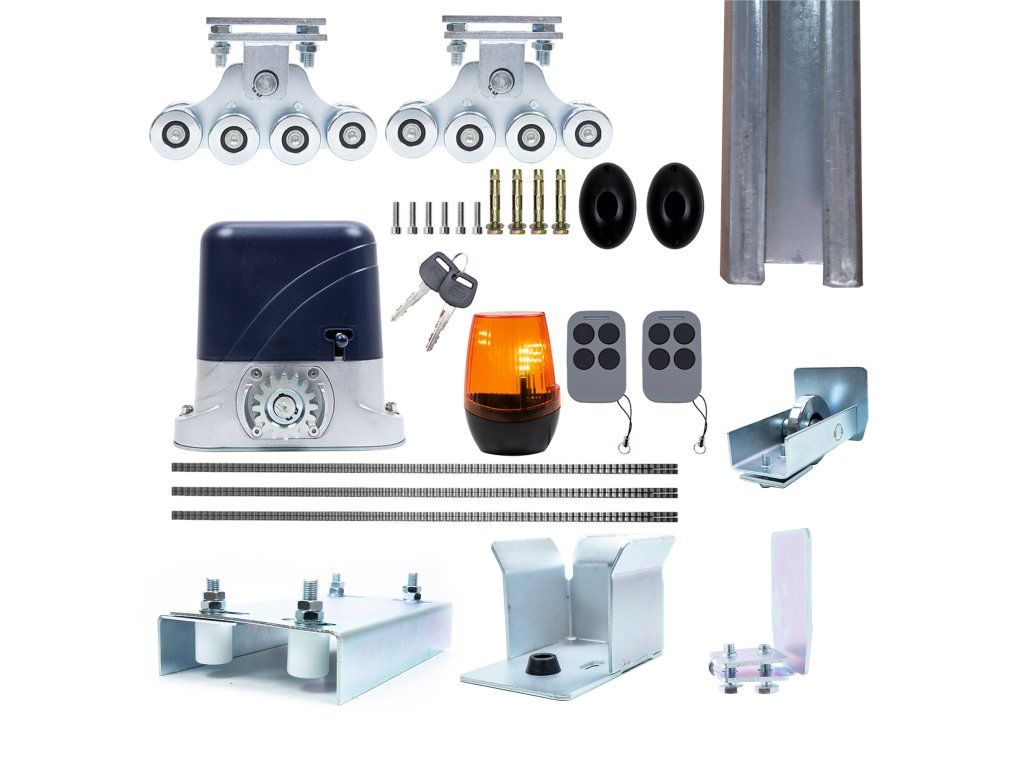

What’s in the Box?
The PNI AP800C Kit comes as a complete "ready-to-install" package:

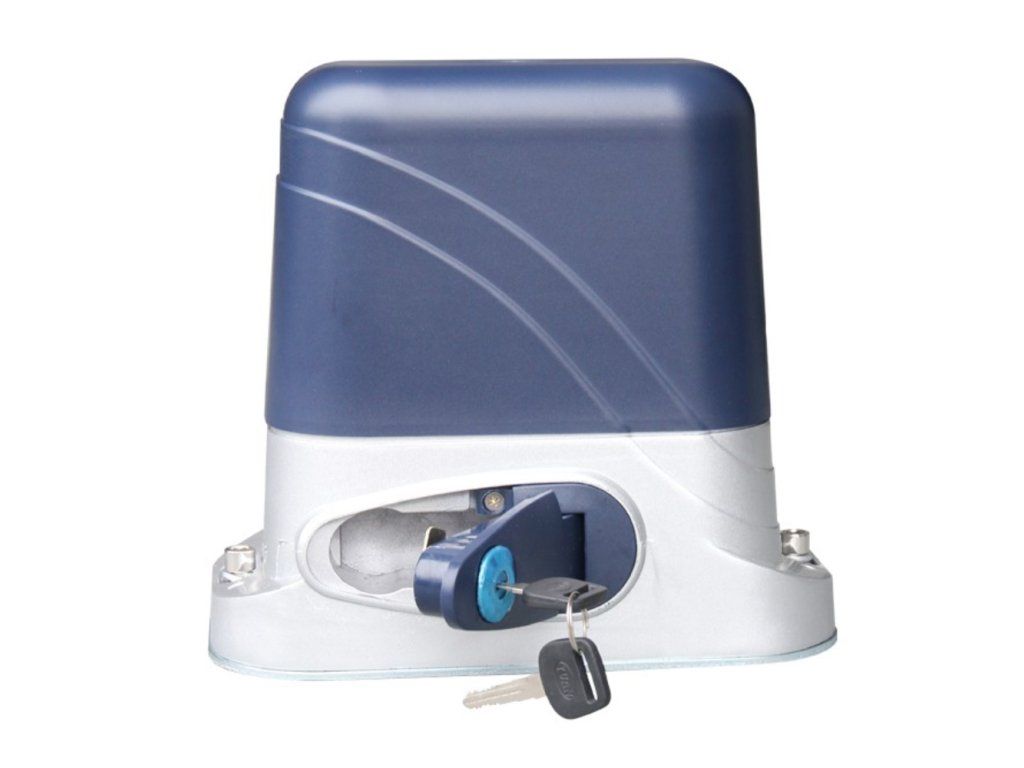

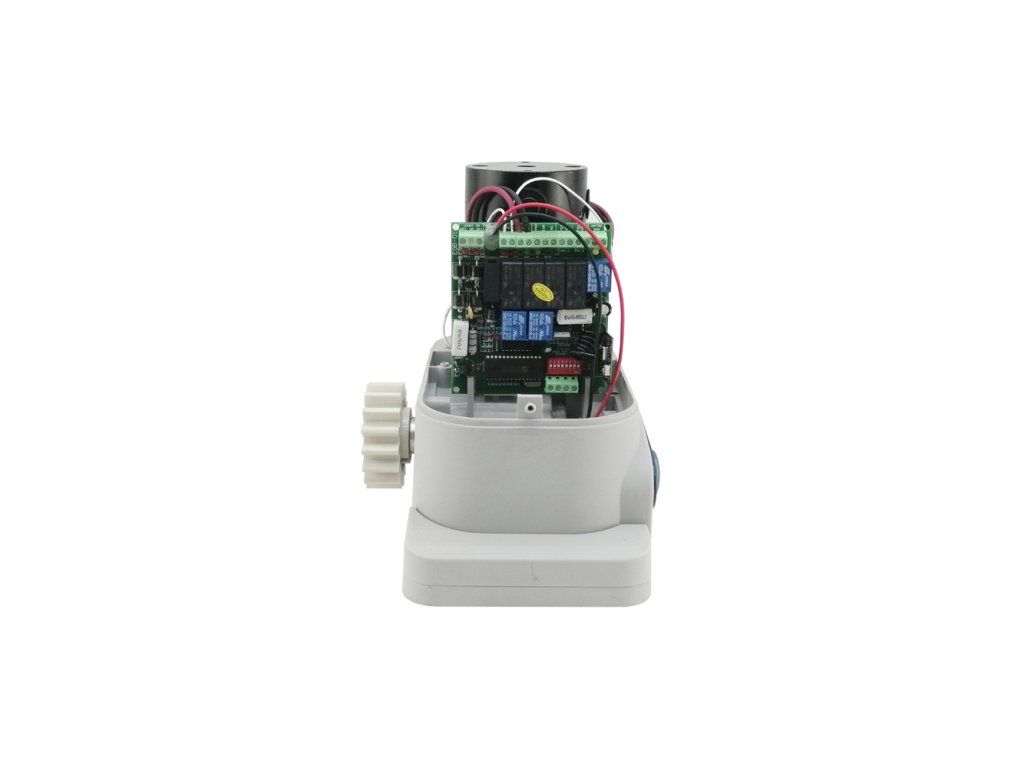

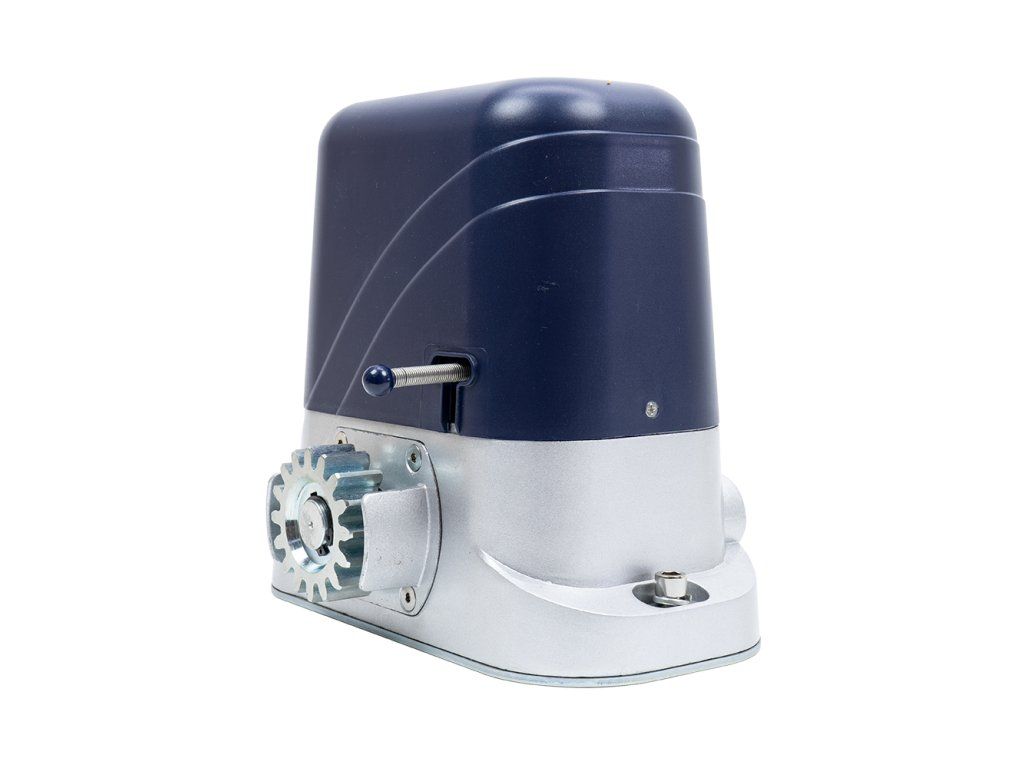

- 1x 350W High-Torque Motor

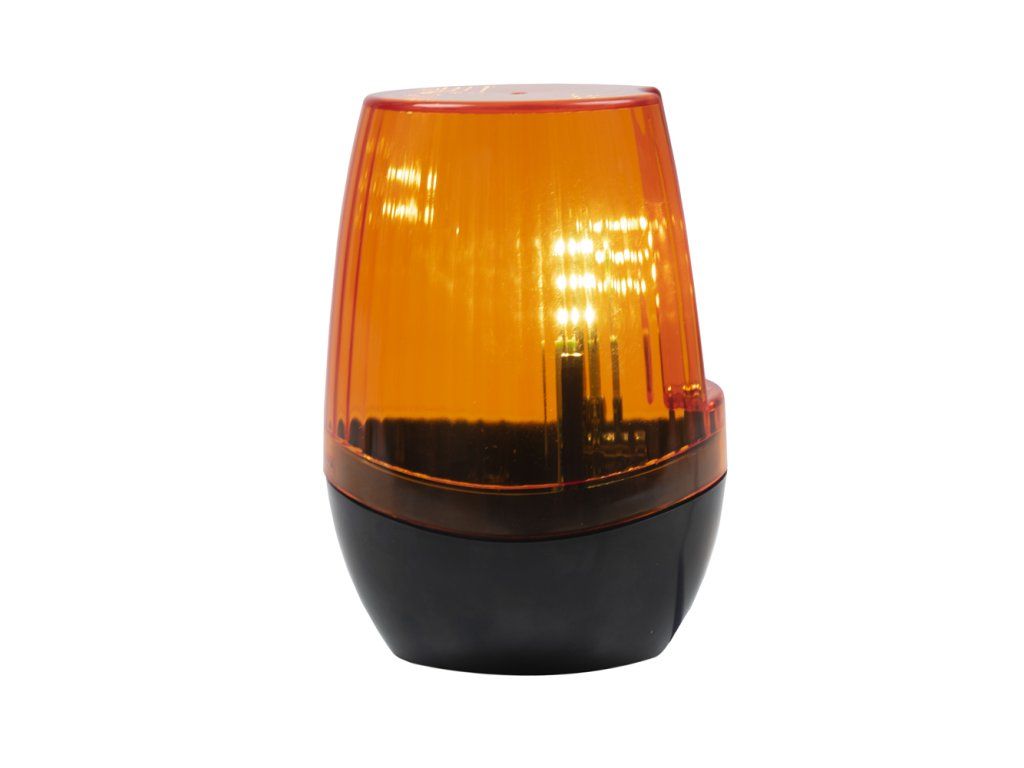

- 1x Warning Signal Light (Flashing)

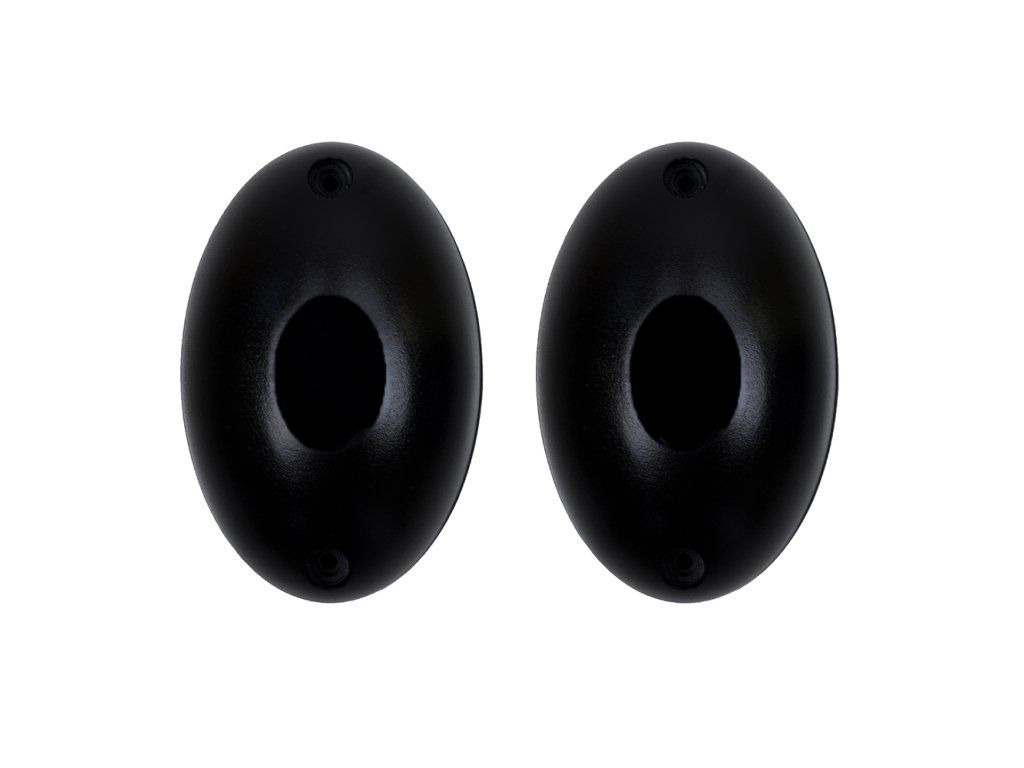

- 2x Safety Photocells (Infrared sensors)

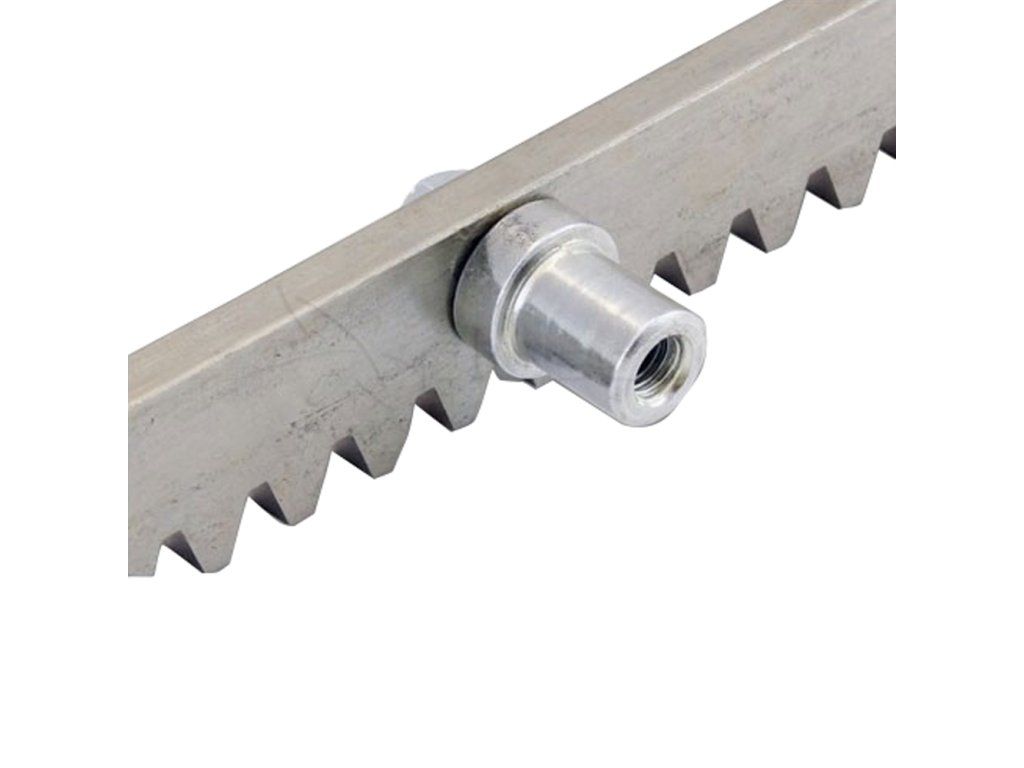

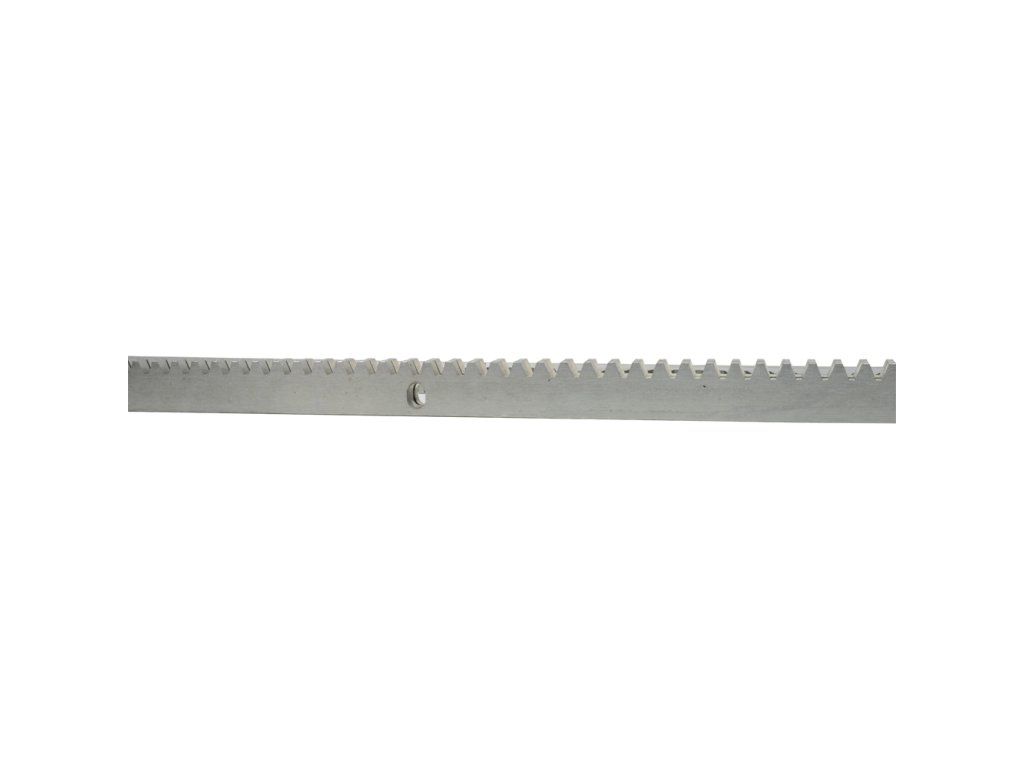

- 6m Heavy-Duty Gear Rack

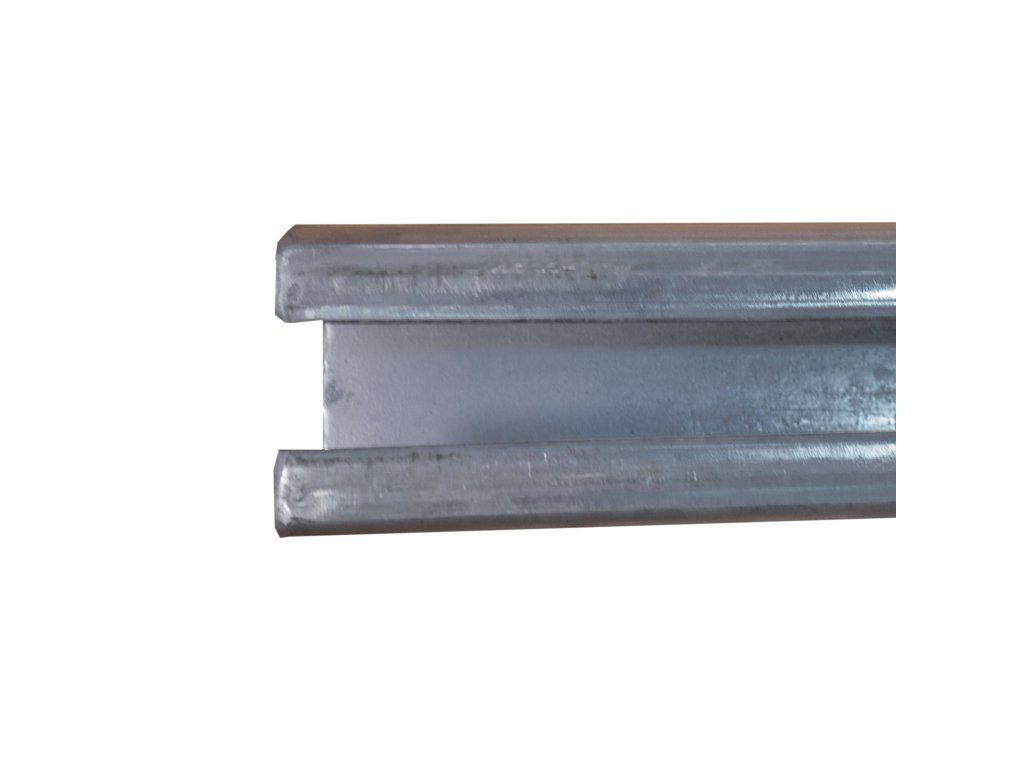

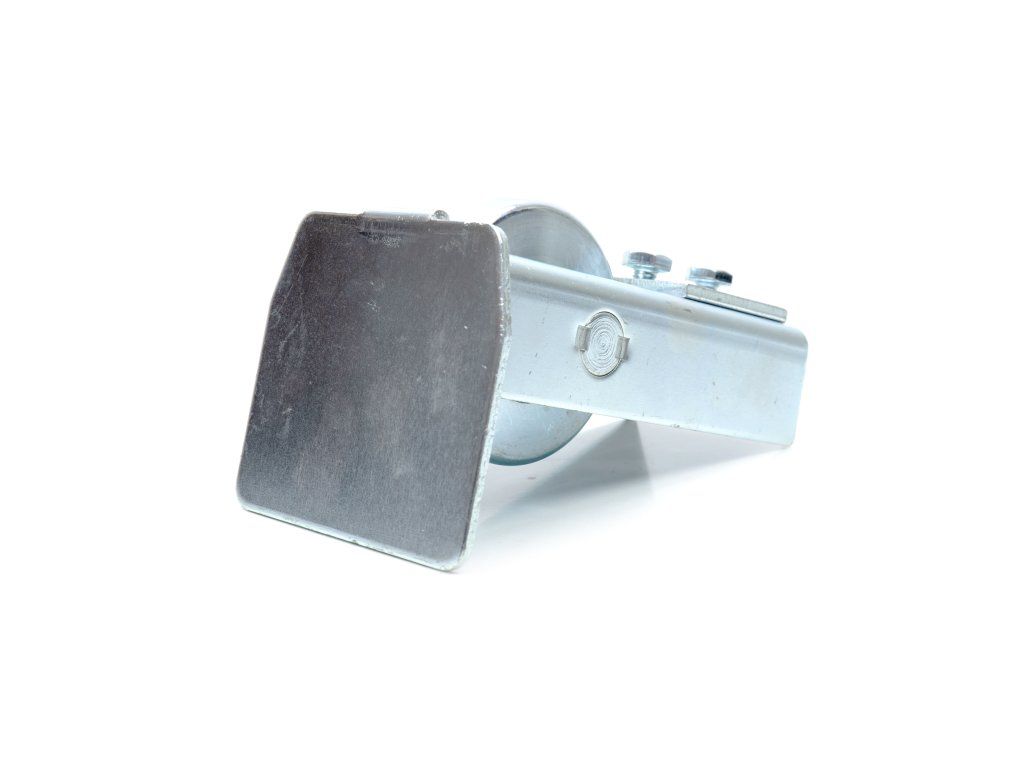

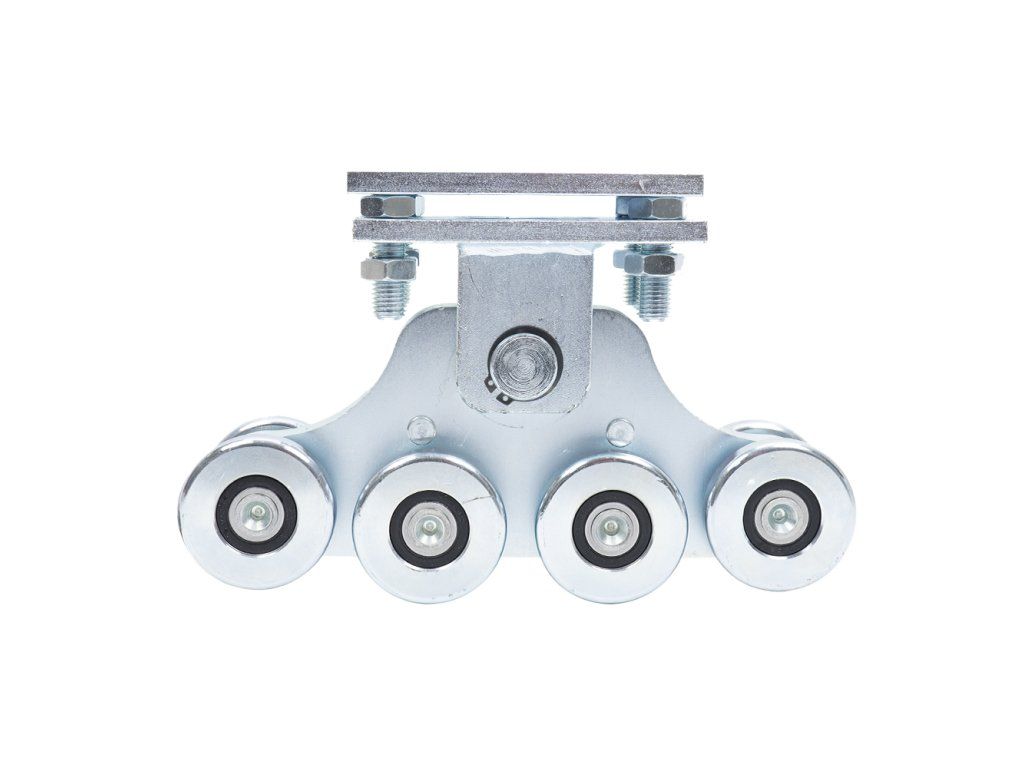

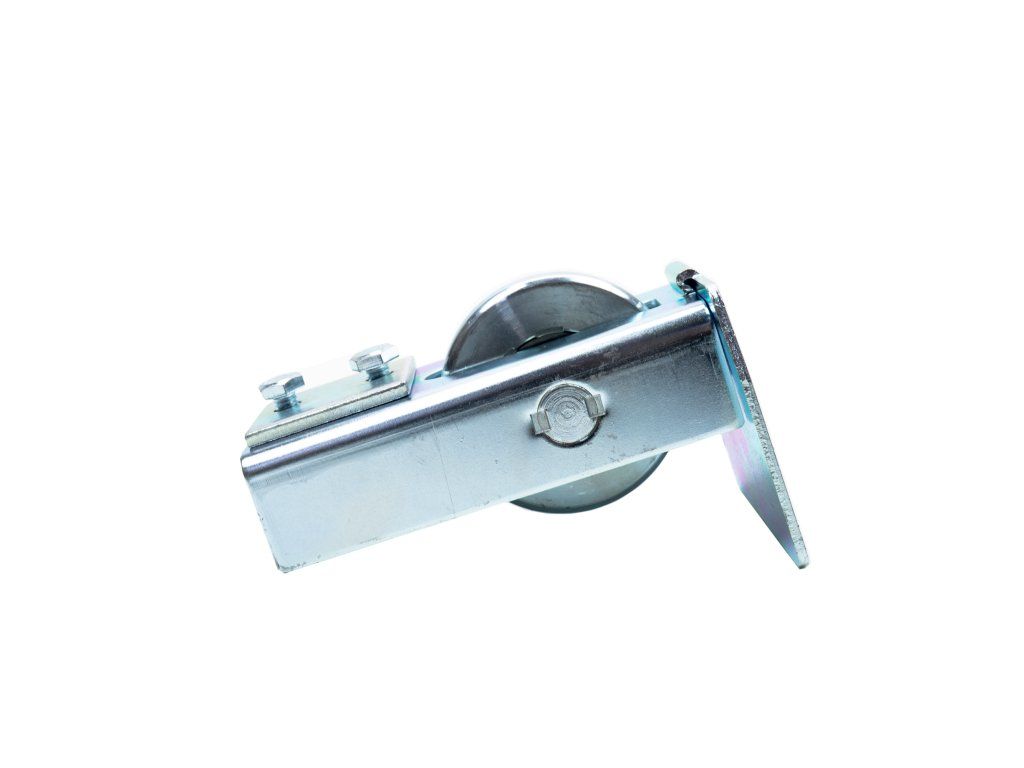

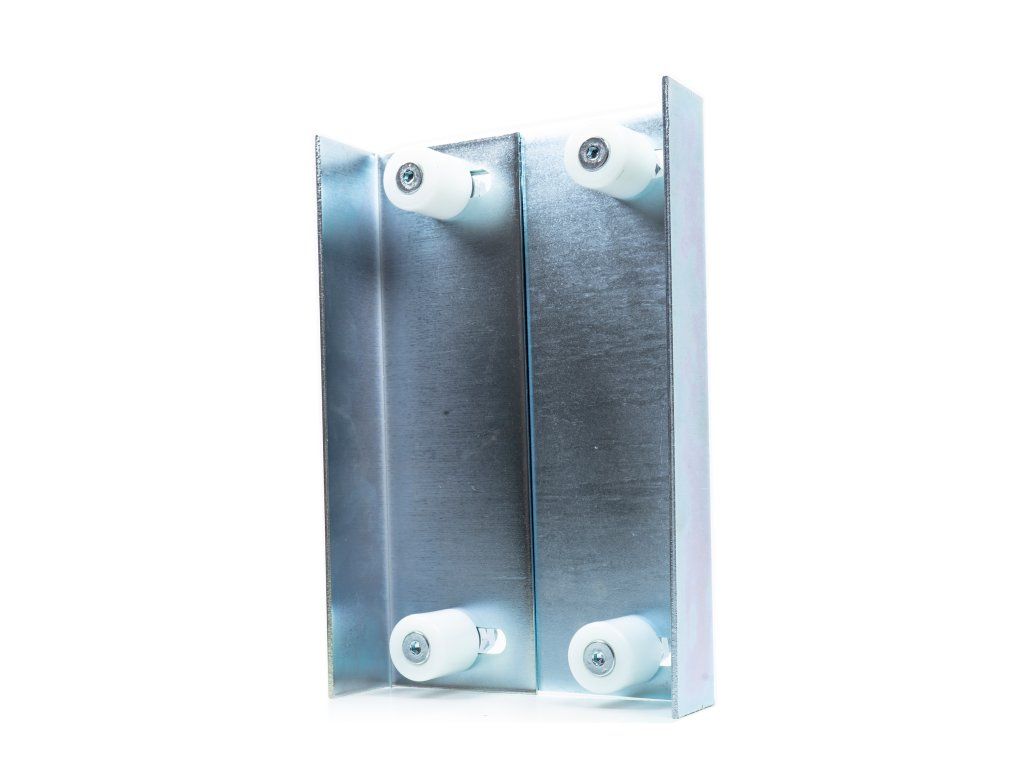

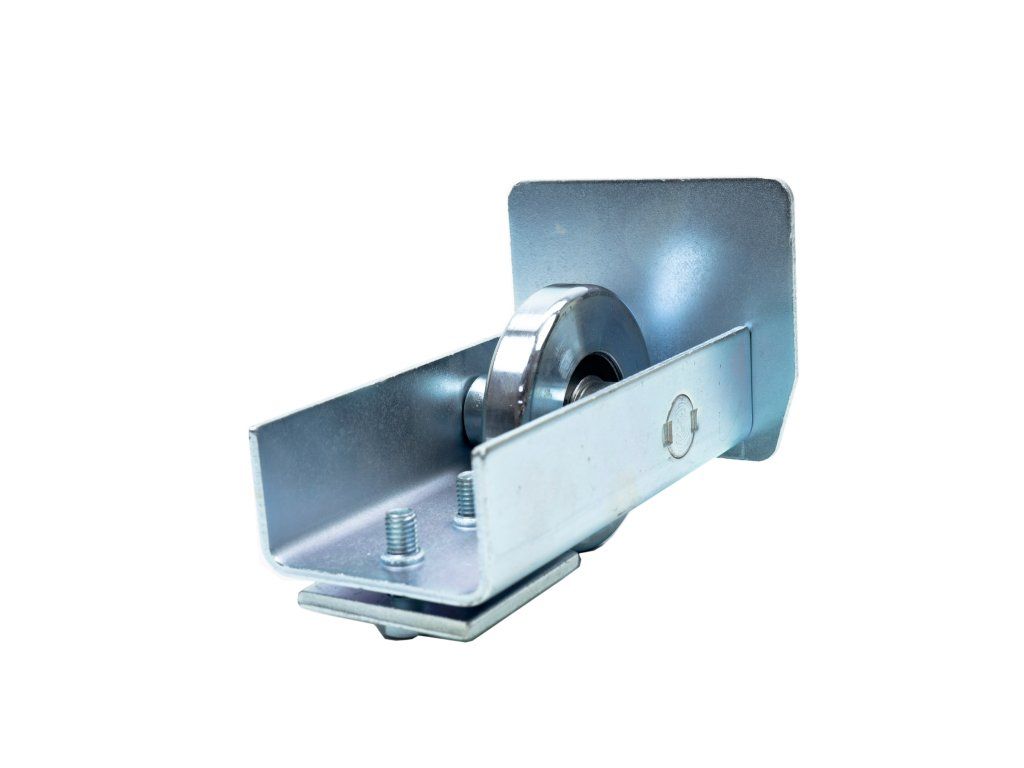

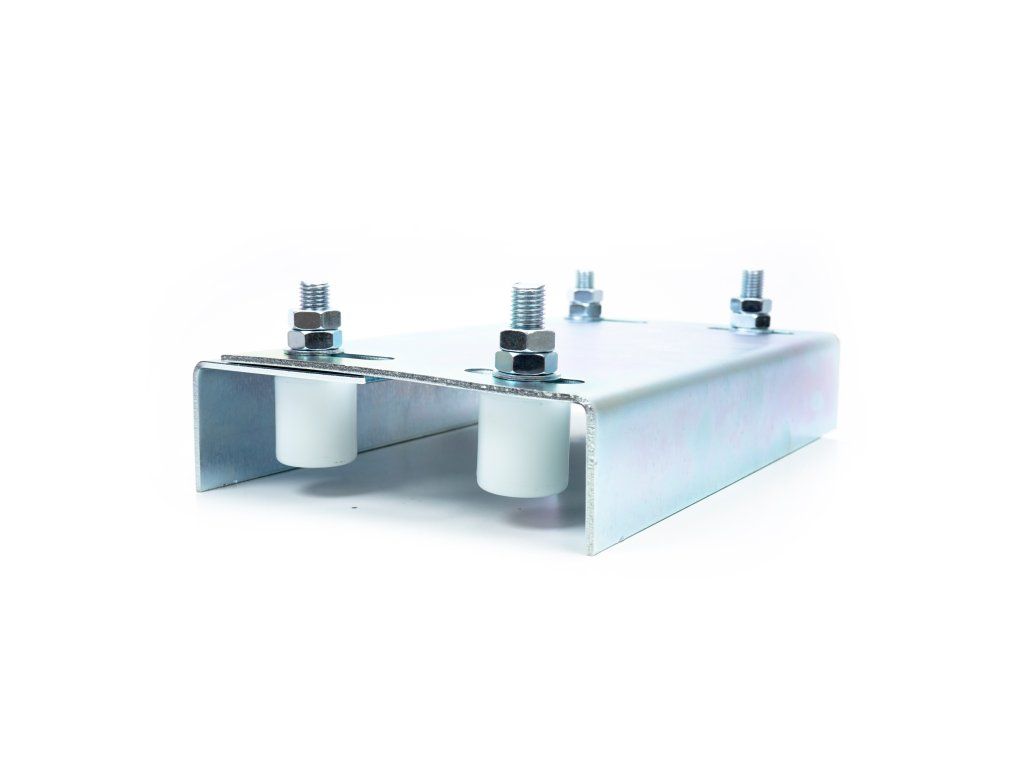

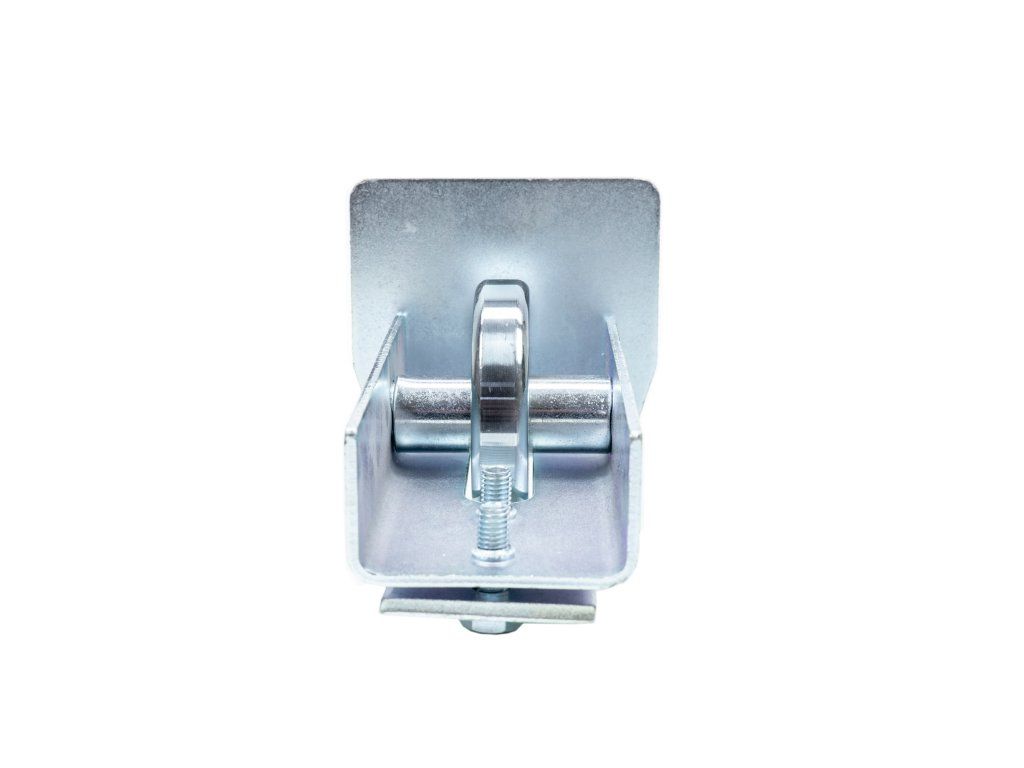

- 1x Professional Wheel Set (for cantilever systems)

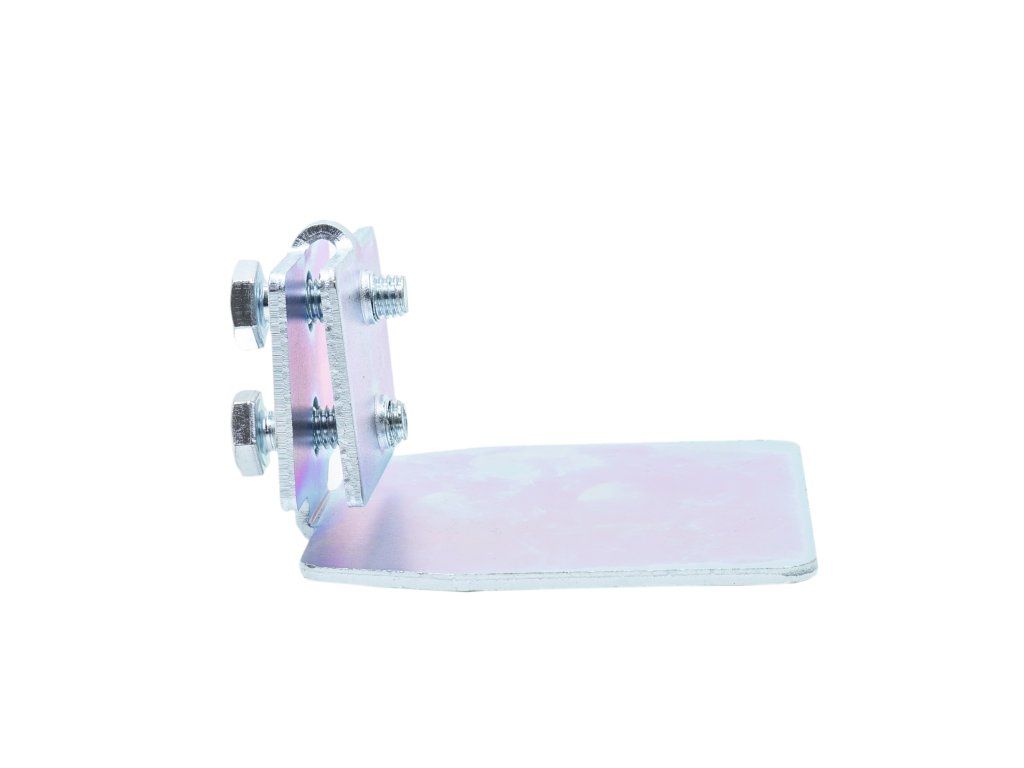

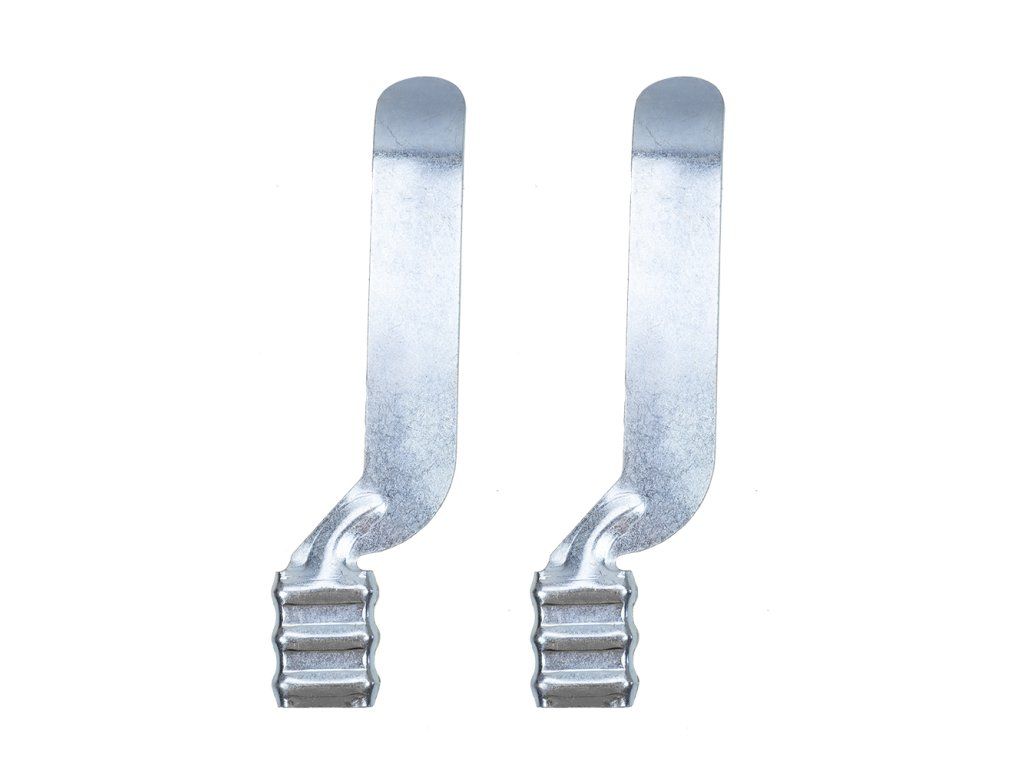

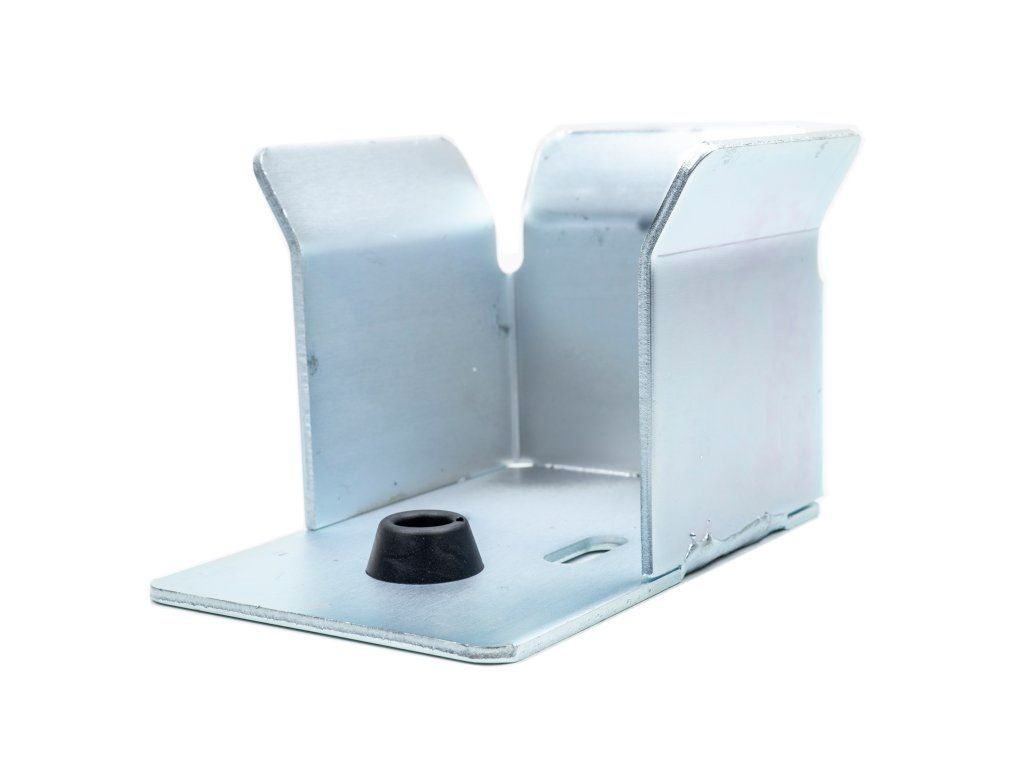

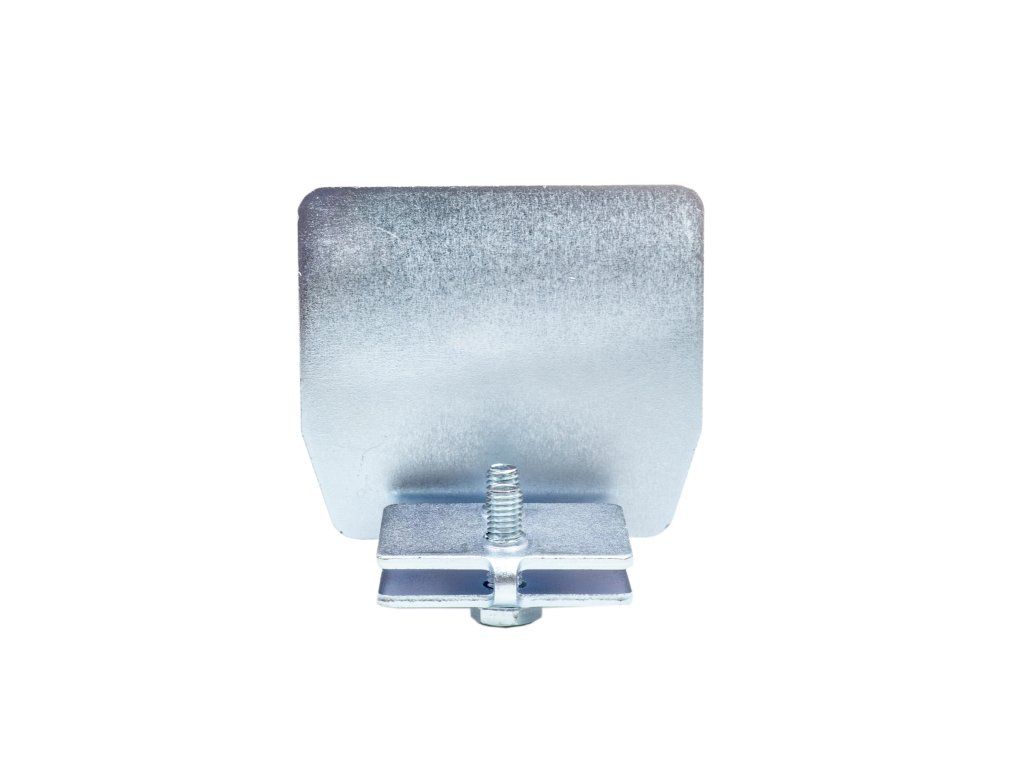

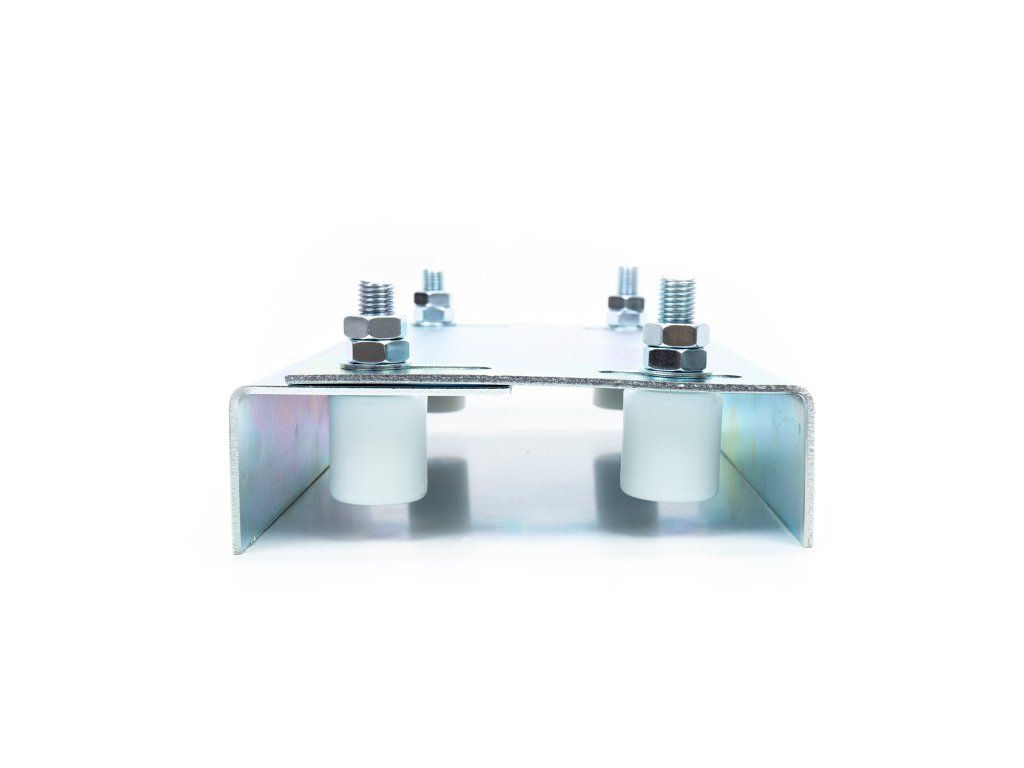

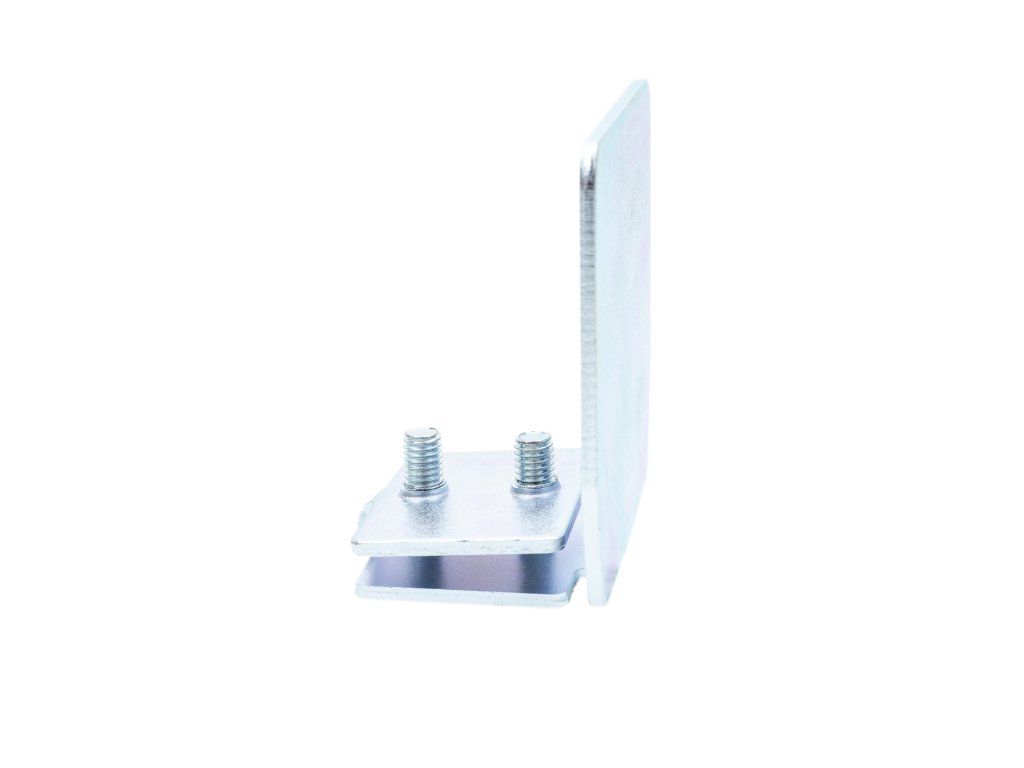

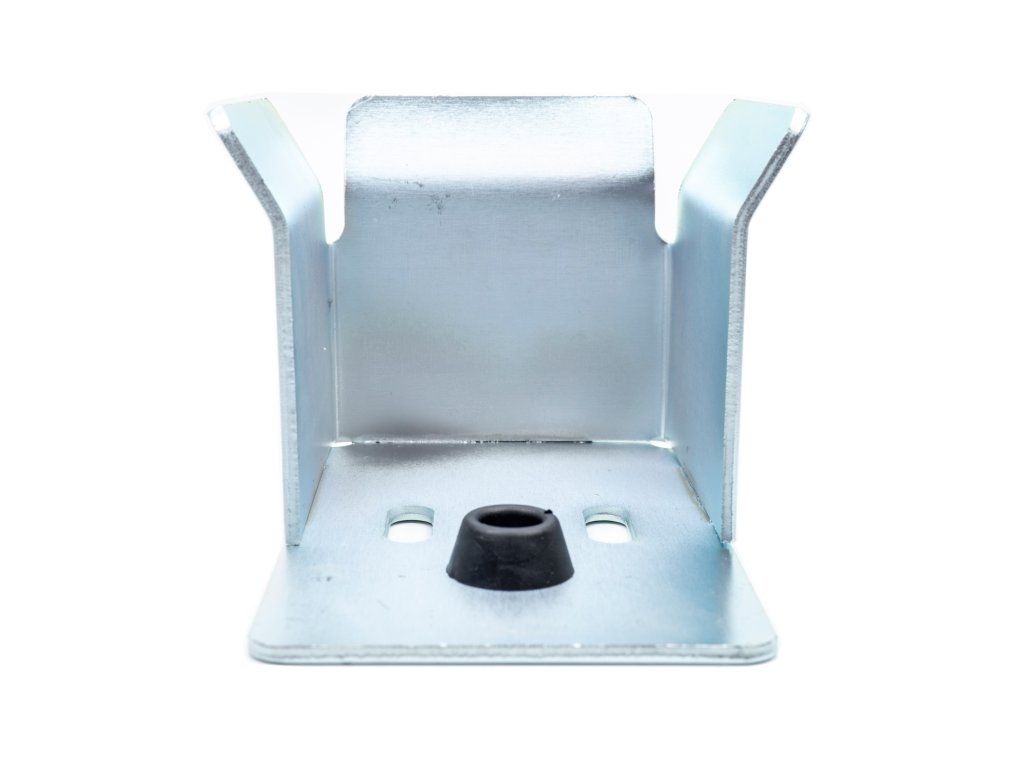

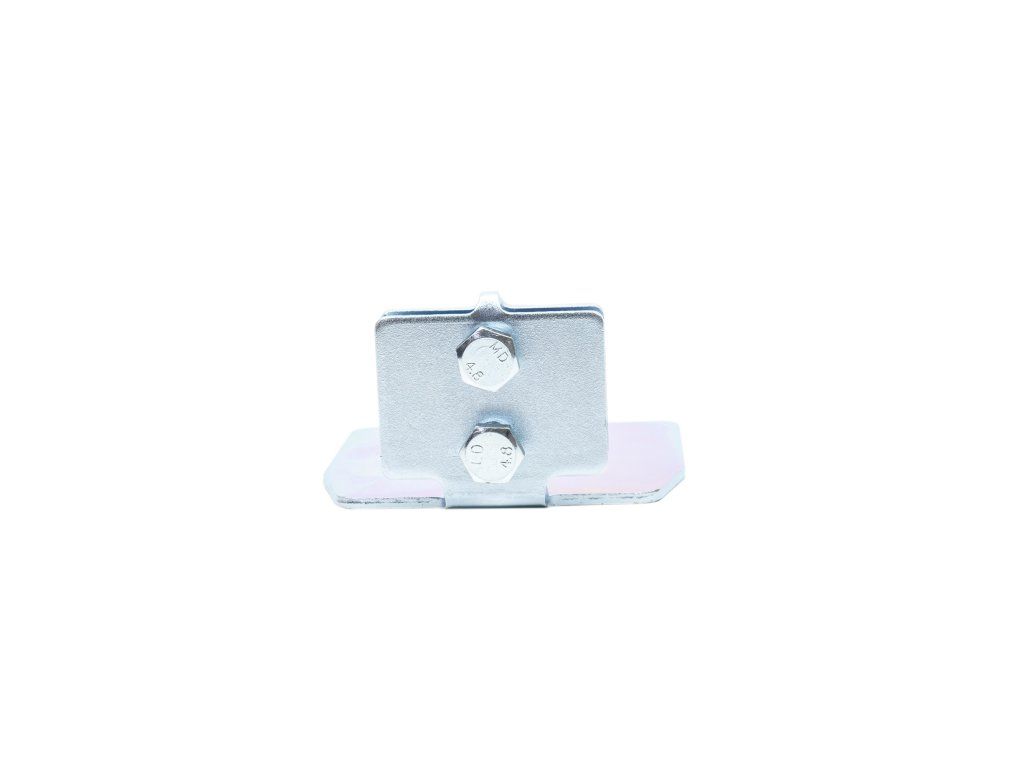

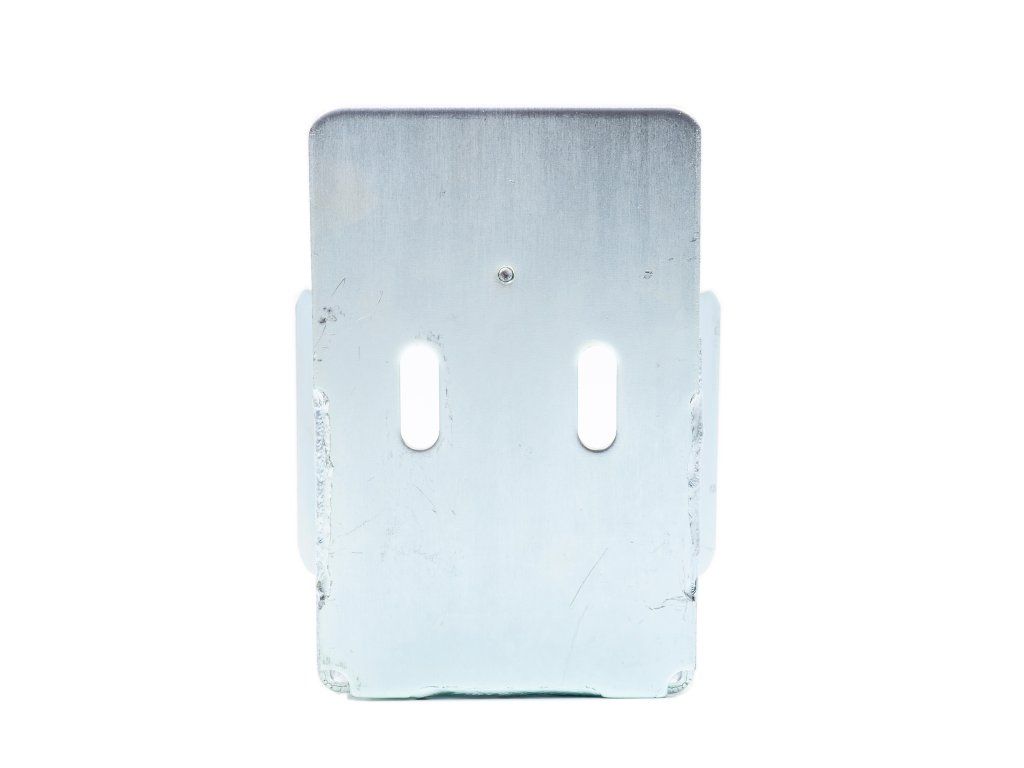

- 1x Full Mounting Hardware & Accessory Kit
Critical Installation Safety
To protect the sensitive electronics and mechanical integrity of the system, please observe the following:
- DO NOT weld while the gate is mounted on the roller sets (this can cause electrical arcing and damage the bearings).
- DO NOT weld once the motor is installed (the electrical surge will destroy the control board and internal wiring).
Additional parameters
| Category: | Sliding gate openers |
|---|---|
| Weight: | 147.338 kg |
| EAN: | 5949066519000 |
PNI-AP600C
