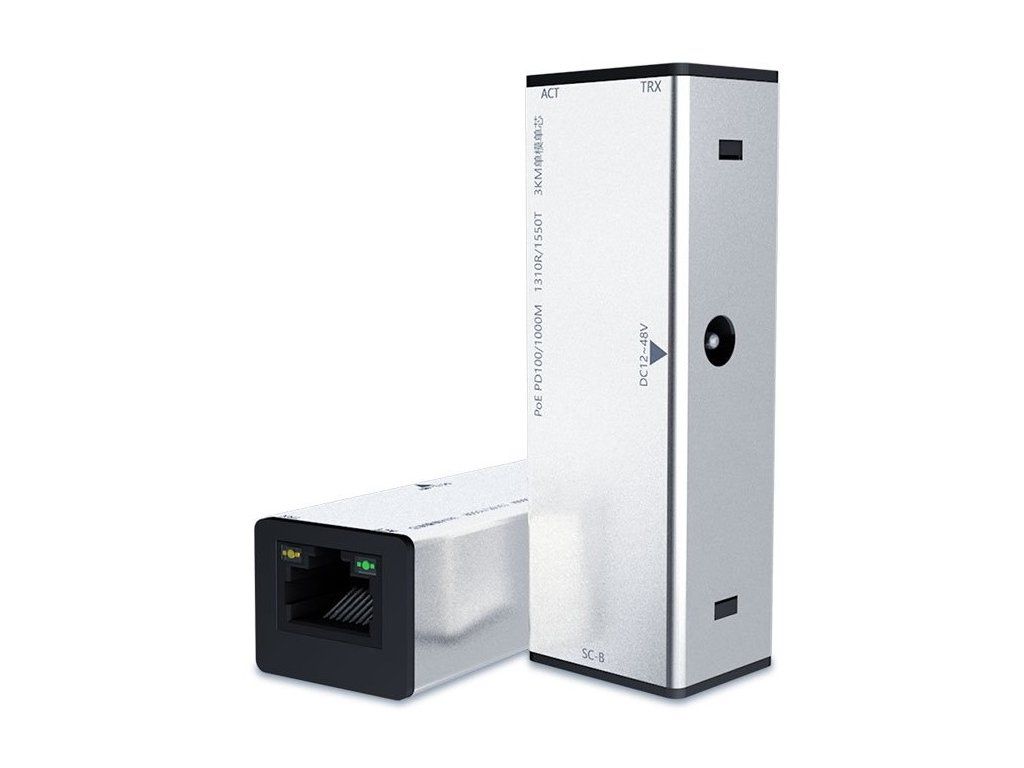

Conexpro GNT-P2913AB, PoE Singlemode optical converter, 1Gbps, kit

Product detailed description

With its design and aluminum construction, the Gigabit Singlemode WDM media converter kit is completely unique for distances up to 3 km and supports power supply via PoE and DC jack. The media converters are designed to transform signal from optical Singlemode fiber (9/125um) with 1x SC connector to metallic LAN cable with speed up to 10/100/1000 Mbps and vice versa. The converters support 1310/1550nm (A side) and 1550/1310nm (B side) wavelengths. Each converter can be powered via either a DC jack (12 to 48V DC) or 802.3af PoE. Only 2 converters without power adapters are included in the package. Specifications: Optics For Single Mode cable type Transmission speed 1 Gbps Wavelength - Tx/Rx [nm] 1310 / 1550, 1550 / 1310 Range [km] 3 Connectors and interfaces Optical connectors (1) SC LAN speed (1) 10/100/1000Mbps Optical interface (1) 1000Mbps Power Power over PoE 802.3af Power Type PoE, DC connector Max. power consumption [W] 3 Power supply via connector/socket 12 .. 48V DC Physical characteristics Operating temperature [°C] -30 to 60 Depth [mm] 80 Width [mm] 24 Height [mm] 20
