DAB.K - pumps with 2 opposed with orbits. wheels

CENTRIFUGAL PUMP WITH ONE IMPELLER

DAB.K

Centrifugal pumps with two opposing impellers

Two-stage horizontal pump with cast iron housing with two volutes separated by an intermediate volute
Radial impellers made of technopolymer A or technopolymer B
Mechanical seal: carbon/ceramic
Enclosed asynchronous motor cooled by external ventilation
Built-in motor thermal protection and capacitor for single-phase version
For three-phase motors, suitable motor overload protection must be used.
Motor protection rating: IP44
Insulation class: F
Made according to CEI 2-3 standard
Fluid temperature range:
-10 °C to +50 °C (K 35/40 - K 45/50 - K 35/100 - K 40/100 - K 55/100)
-15 °C to +110 °C (other models)
Pumped liquid: clean, free of solids or abrasives, non-aggressive, non-viscous, non-crystallising, chemically neutral, properties close to water
Operating range: flow rate from 1,2 to 30 m 3 /h with a displacement of up to 97 m.
Best sellers this week

Bestsellers

1 items total
269210 18932 image img high k tw

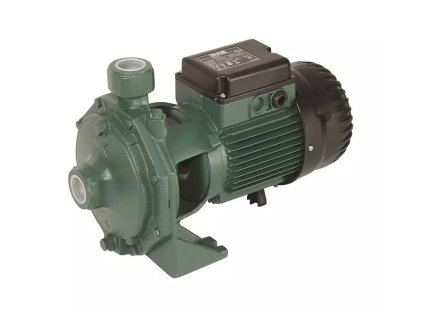

K 40/100 M Centrifugal pump with two opposing impellers

102121032
