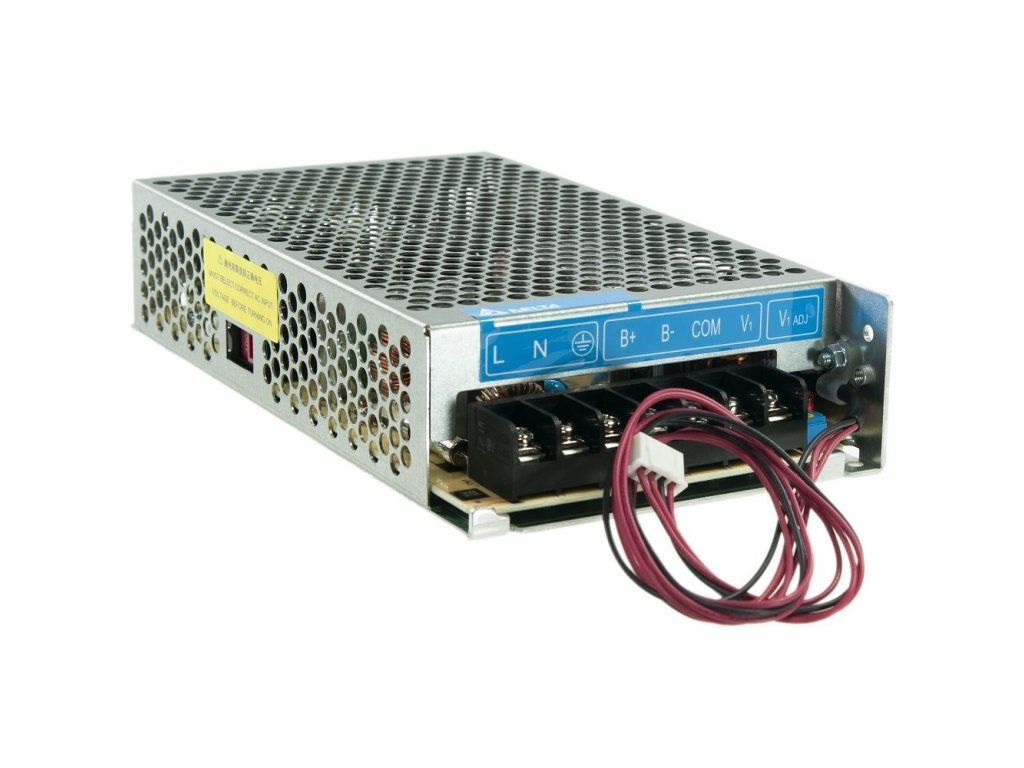

DELTA PMU-13V155WCCA switching power supply with charger function (UPS) 12V, 155W

Product detailed description

The Delta PMU-13V155WCCA is a backup power supply with an output voltage of 13 V (12 - 14 V DC) and a power of approximately 151 W. The device is characterized by high efficiency and reliability. In the event of a power failure, the UPS automatically switches to battery power. The product has numerous protections: against deep discharge against battery over-polarity against too high voltage against overcharging or too high a temperature. The power supply allows you to select the charging current of the battery, the range is: 0.5 - 1.5 A. The offered product has two LEDs indicating power supply (DC OK - green) and reverse battery connection (red), it also allows to connect LEDs indicating AC power supply and low battery charge. The power supply complies with numerous safety standards, featuring a fast switching time from AC to DC. The device is covered by a 5-year warranty. Most important features: - output voltage - about 13 V (12 - 14 V); - output power - 151W; - battery charging current setting - 0,5 - 1,5 A; - deep discharge protection; - power supply meets numerous safety standards; PS: if you want to start the power supply from the battery, you have to short-circuit V+ with B+ (not permanently!!!)
