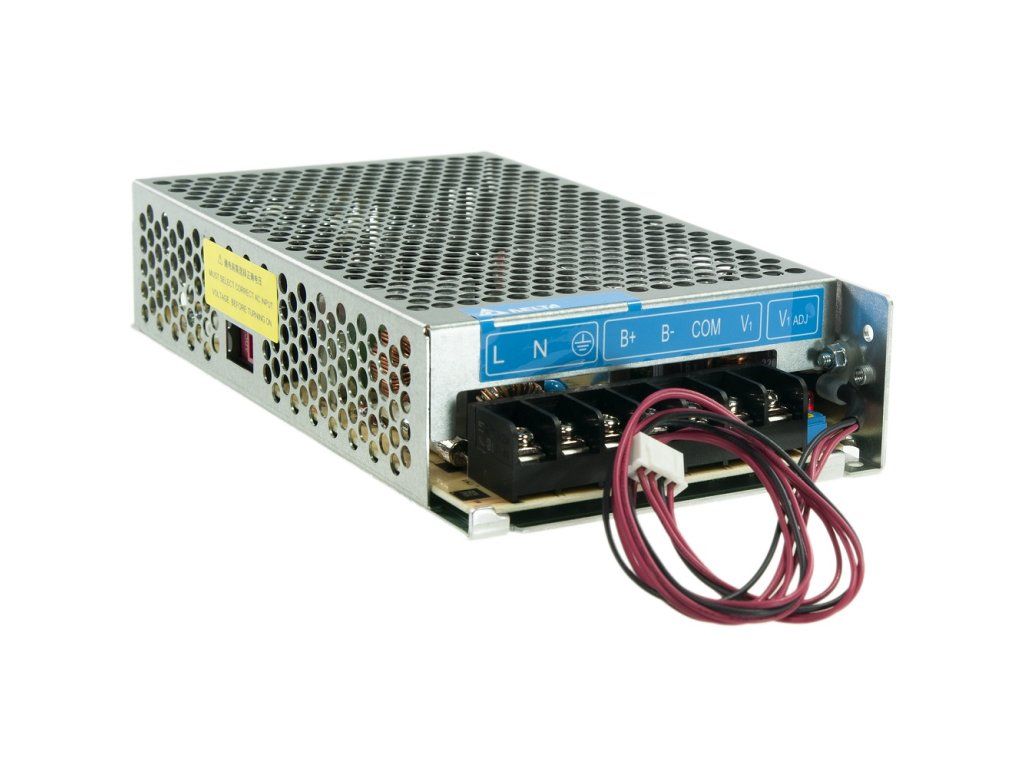

DELTA PMU-27V155WCCA switching power supply with charger function (UPS) 24V, 155W

Product detailed description

The Delta PMU-27V155WCCA is a backup power supply with an output voltage of 27 V (24 - 28 V DC) and a power output of approximately 151 W. The device is characterized by high efficiency and reliability. In the event of a power failure, the UPS automatically switches to battery power. The product has numerous protections: against deep discharge against battery over-polarity against too high voltage against overcharging or too high a temperature. The power supply allows you to select the charging current of the battery, the range is: 0.5 - 1.5 A. The offered product has two LEDs indicating power supply (DC OK - green) and reverse battery connection (red), it also allows to connect LEDs indicating AC power supply and low battery charge. The power supply complies with numerous safety standards, featuring a fast switching time from AC to DC. The device is covered by a 5-year warranty. Most important features: - output voltage - about 27 V (24 - 28 V); - output power - 151W; - battery charging current setting - 0,5 - 1,5 A; - deep discharge protection; - the power supply meets numerous safety standards; PS: if you want to start the power supply from the battery, you have to short-circuit V+ with B+ (not permanently!!!)
