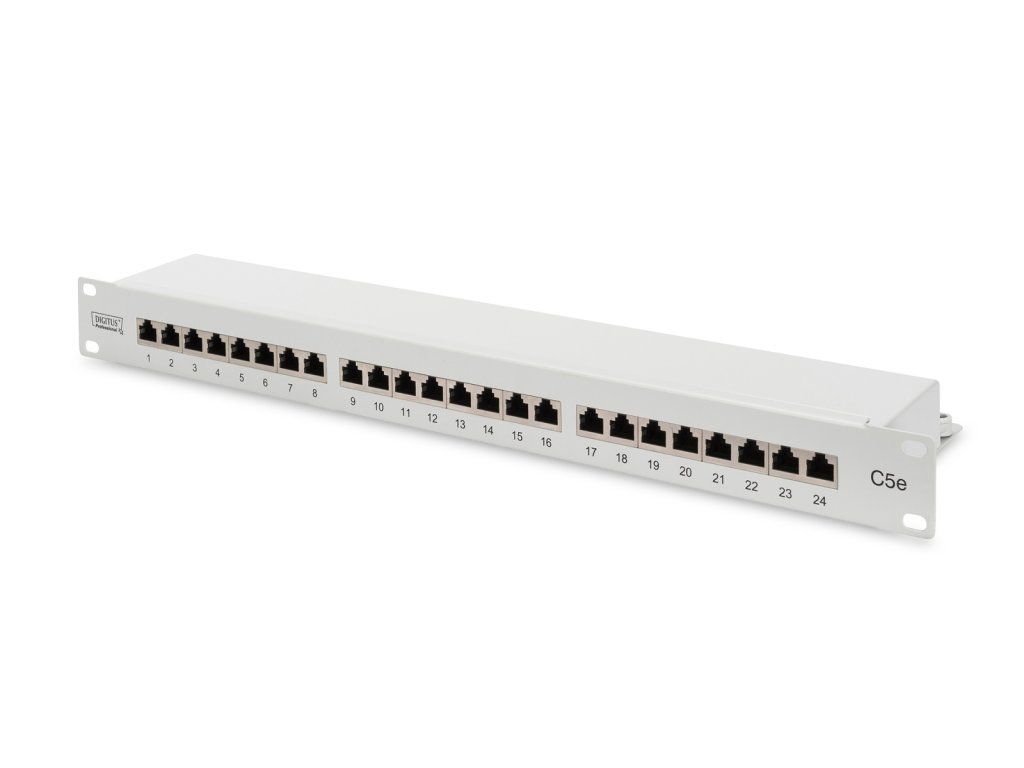

DIGITUS Patch panel DN-91524S, 19'' 24 ports Cat5E, shielded, 1U, grey

Product detailed description

CAT 5e, Class D patch panel, shielded, 24-port RJ45, 8P8C, LSA, 1U, rack mountable, grey, - Transmission Features - Scope: Up to 100 MHz, 10/100Base-T, 1GBase-T - ISO/IEC 11801 3rd edition, EN 50173-1, EIA/TIA 568-C - Suitable for 483 mm (19") rack mounting - RJ45 female, 8P8C - Cable installation using LSA strips, colour coded to EIA/TIA 568 A & B - Cable fixing with intelligent cable ties - Central earthing - 360° shield coverage - Housing material: 1.5 mm cold-rolled galvanic steel, possibly according to EN1.4301, UNS S30400, AISI 304 and LMSAD110 - RJ45 female material: ABS UL 94V-0 - RJ45 female contact: tin-plated phosphor bronze, 0.5 µ gold-plated contact - RJ45 shielding: tin plated bronze - LSA end terminal: Krone LSA+, UL 94V-2, zinc plated phosphor bronze - Ground wire: Not included - Conductor plate: FR4, UL 94V-0 - Insert force: 30N max (IEC 60603-7-5) - Retaining force: 7.7 kg between connector and plug - Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) - Female mating cycles: > 750 ac. according to ISO/IEC 11801, IEC 60603-7-5 - Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 - IDC wire size: 22 - 26 AWG solid and stranded wire - Insulation resistance: > 500 MOhm - Contact resistance: < 20 MiliOhm - Dielectric Strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) - Colour: light grey, RAL 7035 - Ports: 24 - Category: CAT 5e - Depth: 109 - Height: 44 - Width: 482
