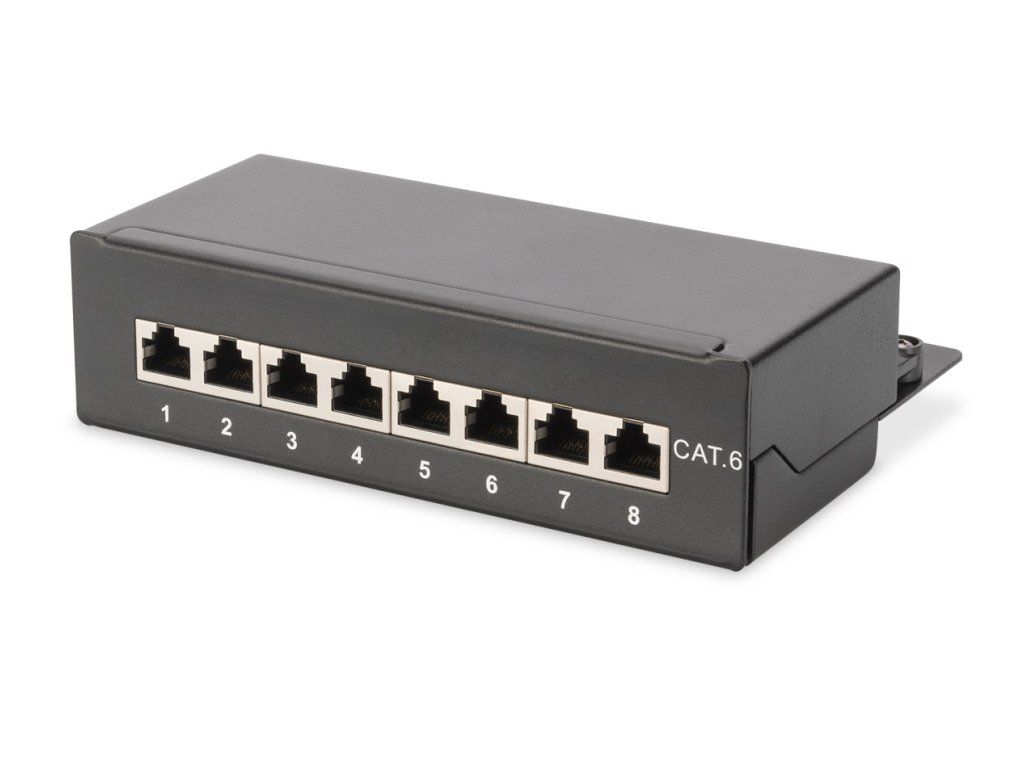

DIGITUS Patch panel DN-91608SD, Desktop, 8 ports Cat6, shielded, RJ45, black

Product detailed description

DIGITUS Desktop CAT 6 patch panel, shielded, class E, 8 ports RJ45, 8P8C, LSA, colour black RAL 9005 DIGITUS® printed circuit boards are the ideal solution for SoHo (Smart Office Home Office) applications. Fully shielded RJ45 sockets provide optimum stability for your cables with the best performance. Category 6 Up to 250 MHz, 1GBase-T ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C compliant Surface mount RJ45 female, 8P8C Cable installation using LSA strips, colour coded according to EIA/TIA 568B Cable fixation with the included cable tie Central shielding 360° shielding coverage Housing and shielding steel, 1.5mm steel Connectors Tinned phosphor bronze, 0.5 µ gold-plated contact For cables: 22 - 26 AWG, wire type Insulation resistance:> 500 MOhm Contact resistance: <20 MilliOhm Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground) CAT 6 Ports: 8 Colour: black, RAL 9005 Dimensions (HxWxD): 44 162 112 mm Package contents: 1x Panel 1x Installation instructions 1x Tightening tapes
