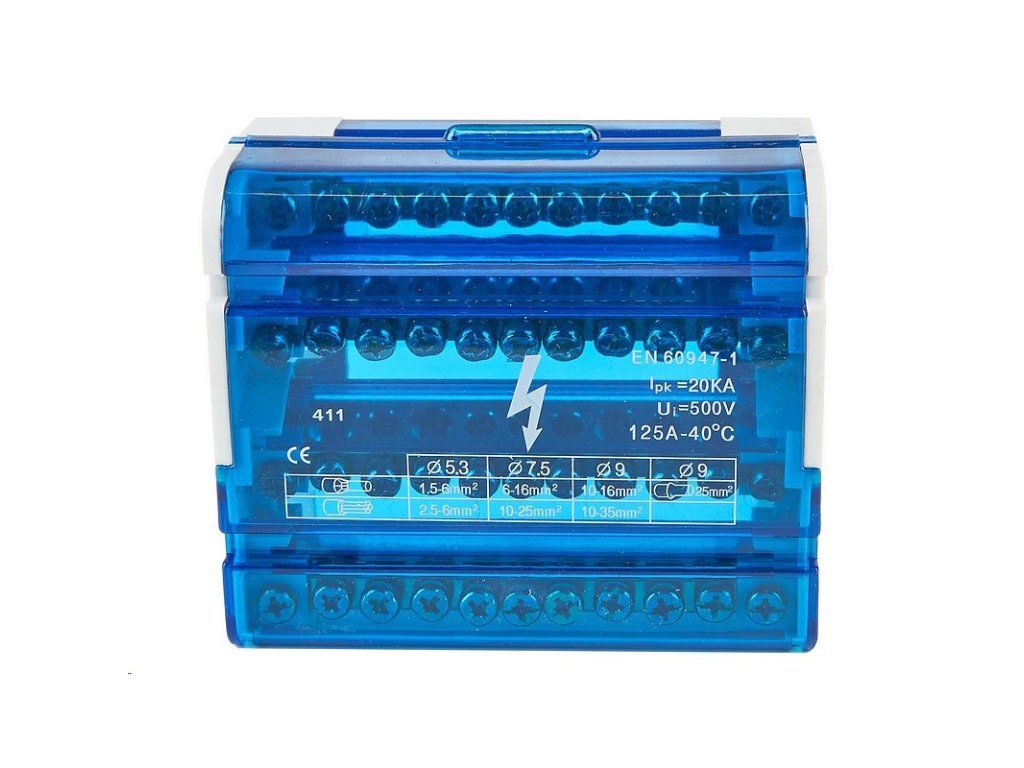

Distribution block VCX BLK 411 / 4 poles / 11 holes / 125A / for DIN rail

Product detailed description

Distribution block VCX BLK 411 / 4 poles / 11 holes / 125A / DIN rail mounted Distribution or distribution block with brass screws for correct and clear cable connection in low voltage distribution rooms. The VCX modular distribution blocks are designed for the distribution of current paths in low-voltage cabinets. They consist of connection terminals that are housed in a plastic housing. The use of the block eliminates weak points in the switchgear, thus reducing the risk of short circuits. The distribution or also called distribution block allows power to be distributed to different circuits. It also allows the separation of phase circuits and the use of cables with different diameters. Advantages of the block - DIN rail mounting TH35 or surface mounting. - Safe and easy installation. - Transparent cover. - Self-extinguishing material. - Possibility to connect wires with or without grommets. TECHNICAL SPECIFICATIONS - number of poles: 4 - rated current: 125 A - lpk (short circuit resistance): 20kA - mounting: on DIN rail TH35 or surface mounting - UI: 500V - cross-section of flexible conductors (mm2): 10-16 - conductor cross-section (mm2): 2,5-6; 10-25; 10-35 - number of holes: 11 - hole diameters: 7xo5,5mm; 2xo7,5mm;2xo9mm - protection class: IP 20 - standard: EN 60947-1 Modular distribution block - what is it used for? The distribution block is used to quickly and smoothly distribute power between the switchgear circuits. Distribution blocks have built-in conductor rails (current rails) to which the conductors supplying the circuits are connected. Types of distribution blocks: - blocks with 1 current rail - blocks with 2 current rails - blocks with 4 rails Use of distribution blocks Distribution blocks enable permanent and seamless connection of conductors such as wires and cables. The current rails are integrated into the interior of the distribution blocks. Mounting holes of various diameters located on the rails allow for the seamless connection of thick and thin conductors. Connecting any cross-section of power cable to the block offers a multitude of possible applications. For example, when connecting a thicker power cable, it is possible to distribute power to the other outgoing conductors. The plastic covers with which the blocks are equipped ensure safety. They ensure that the conductors are sufficiently protected and are not exposed to other components. The modular distribution block brings order to the installation. This component eliminates the need to connect multiple wires under the screw terminal. As a result, additional mounting components and cable glands can be dispensed with. Modular blocks allow for proper arrangement and organization of all wires.
