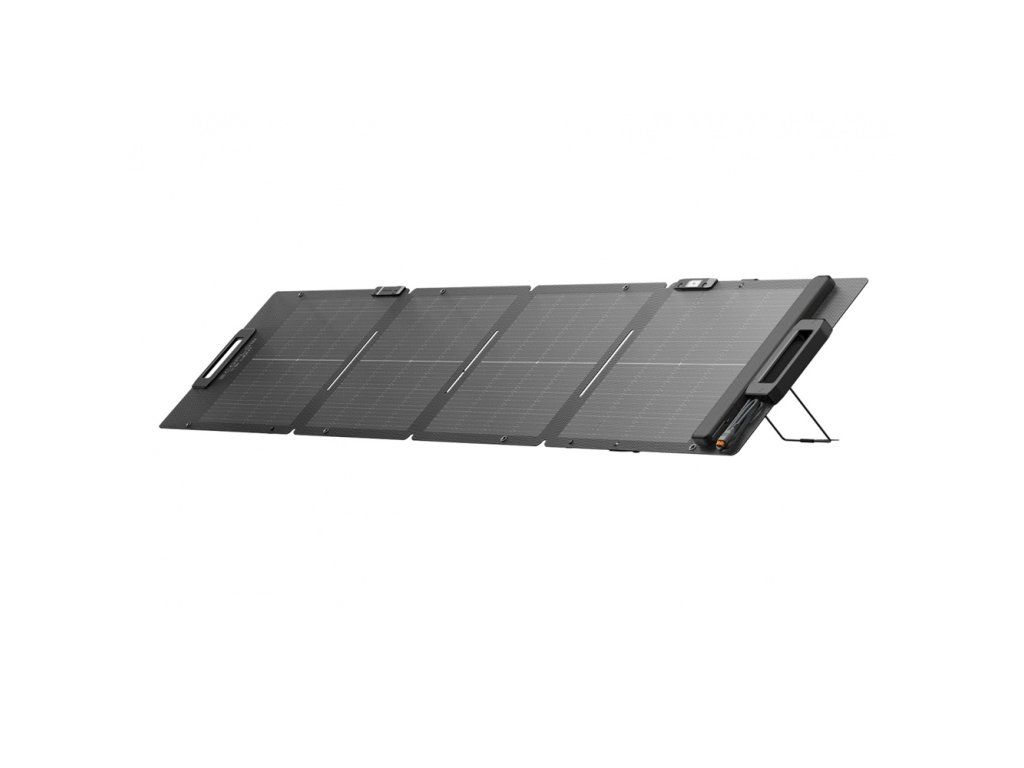

EcoFlow 110W mono solar panel, portable - 2nd generation

Product detailed description

The EcoFlow 110W 2nd generation bifacial folding solar panel brings even more energy from the sun compared to the previous generation. It features not only advanced TOPCon solar cells with higher efficiency, reliability and longer lifetime, but also a built-in sun angle indicator and integrated supports that allow the panel to tilt more conveniently according to the current sun position. The panel is also more portable thanks to its lighter weight. The EcoFlow 110W bifacial lightweight portable panel uses advanced solar cell technology with a high efficiency of 25%. It is easily portable and, thanks to its high durability and low maintenance, is an ideal source of battery recharging for off-grid activities. All-weather durability The panel's solar cells are encapsulated in a durable PCB fibre package with a protective ETFE coating. The IP68 rating ensures durability even in harsh weather conditions. High efficiency of 25% The panel incorporates TOPCon technology, so it can be smaller in size while maintaining performance, making it more portable and portable. TOPCon (Tunnel Oxide Passivated Contact) is an advanced silicon cell technology that helps to reduce losses, increasing the overall efficiency of the panel. Efficient positioning The entire panel design helps to achieve maximum solar energy conversion efficiency. In fact, it includes a built-in sun angle indicator and integrated supports that provide better positioning options. Technical specifications Specifications Model : EF-FOLD-110-LW Rated power : STC : Pm = 110 W, BNPI : Pm = 122 W No-load voltage: STC: Voc = 23.5 V, BNPI: Voc = 23.5 V Short circuit current: STC: Isc = 6.1 A, BNPI: Isc = 6.8 A Rated voltage: STC: Vpm = 19.5, V BNPI: Vpm = 19.5 V Rated current: STC: Ipm = 5.9 A, BNPI: Ipm = 6.5 A Recommended ambient temperature: -20 °C to 85 °C Efficiency: 25% Bifacial coefficient: 80% ±5% Temperature coefficient of rated power: -0.3%/°C Temperature coefficient of breakdown voltage: -0.25 %/°C Short-circuit current temperature coefficient: +0.045 %/°C General Weight: 3.3kg ±0.3kg Dimensions when unfolded: 1 944 mm x 413 mm x 26 mm Dimensions unfolded: 544 mm x 413 mm x 36 mm Battery Cell type: TOPCon monocrystalline silicon Connector type: XT60i - Standard test conditions: 1000 W/m2, AM 1.5, 25 °C. - Standard test conditions for bifacial panels (BSTC/BNPI). - When the temperature is too high or too low, the no-load voltage and short-circuit current of the panel may differ from the above. Package contents 1. EcoFlow solar panel 110W foldable - 2nd generation 2. User manual, safety instructions and warranty card
