Electrometer 3F on DIN DDS024

Product detailed description

Electrometer 3F on DIN DDS024

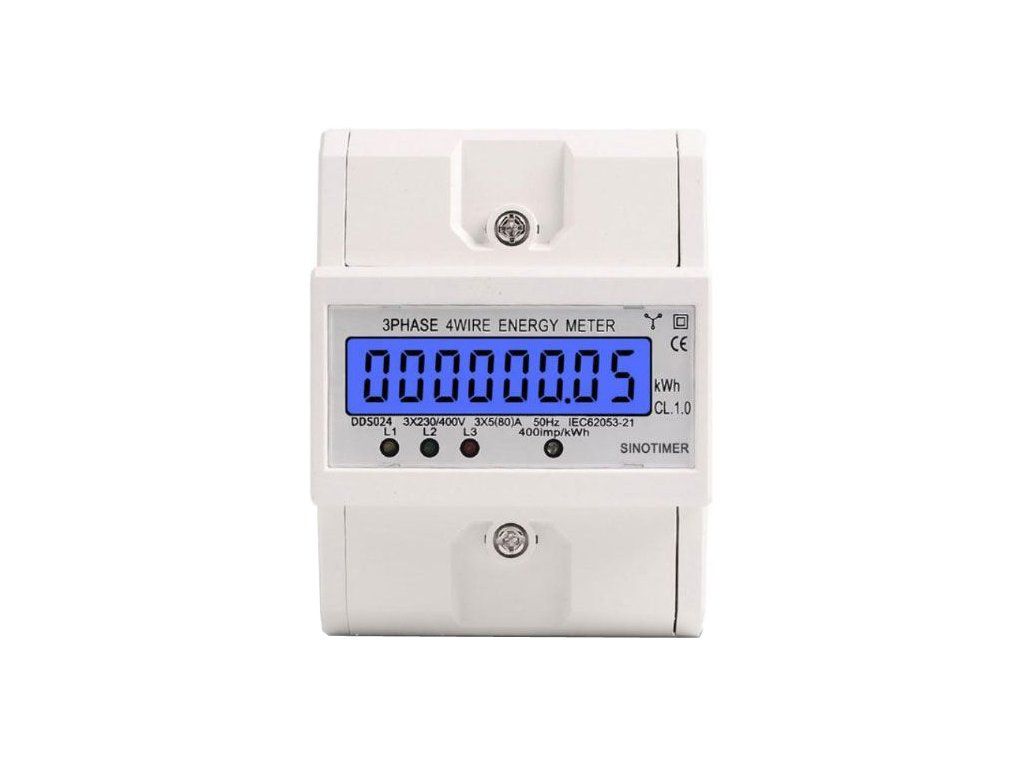

Electricity meter DDS024 3 phase digital on DIN rail


Technical parameters:

Voltage: 3× 230 / 400V
Base current: 3×5A
Maximum current Imax: 80A
Accuracy class: 1.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50-60 Hz
Pulse constant: 400imp/kWh
Display: LCD6 +2
Power consumption: ?2W, 10VA
LCD backlit display
Starting current: 0,004lb
Working temperature: -20°C - 55°C
Deviation: less than 1 pulse when the rated voltage is 115% or the current is no loop.
width: 76mm - 4 modules
current measurement range: 0.04-80A,
Consumption measurement range: 0-99999,9kWh
Pulse output
