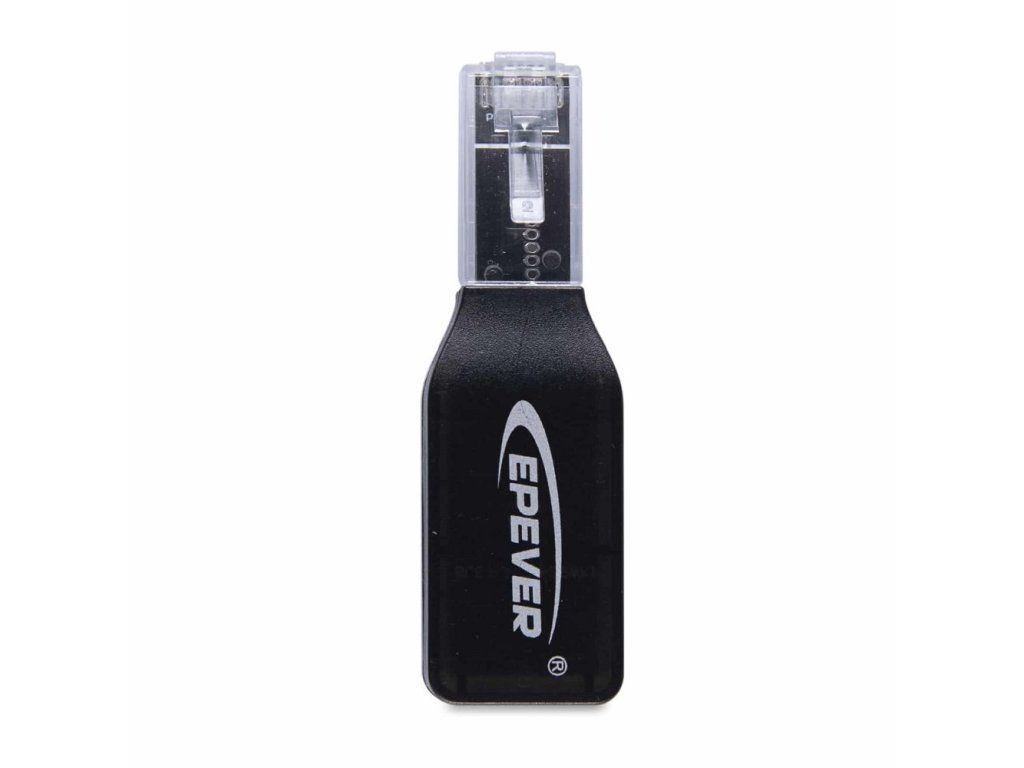

EPever Bluetooth module BLE-RJ45 D

Product detailed description

Bluetooth 5.0 module for EPever solar controllers for XTRA, Tracer-AN and IPower Plus series. It allows remote monitoring and parameter adjustment using the Solar Guardian app. Main features: Solar Guardian app communication support Support for data encryption Simple connection, easy and convenient operation Fast communication, interference resistance Power supply from communication port Technical specifications: Operating voltage: 5V±0.5V (power supply from RJ45 port) Power consumption: average: 5V@10mA; maximum: 5V@60mA Communication distance: ? 10m Serial port baud rate: 115200 bps Communication method: RS485 to Bluetooth Connection port: RJ45 Bluetooth protocol: 5.0 Dimensions (L x W x H): 63mm x 19mm x 13.8mm Operating temperature: -20?~70? Protection rating: IP30 Weight: 8.0g
