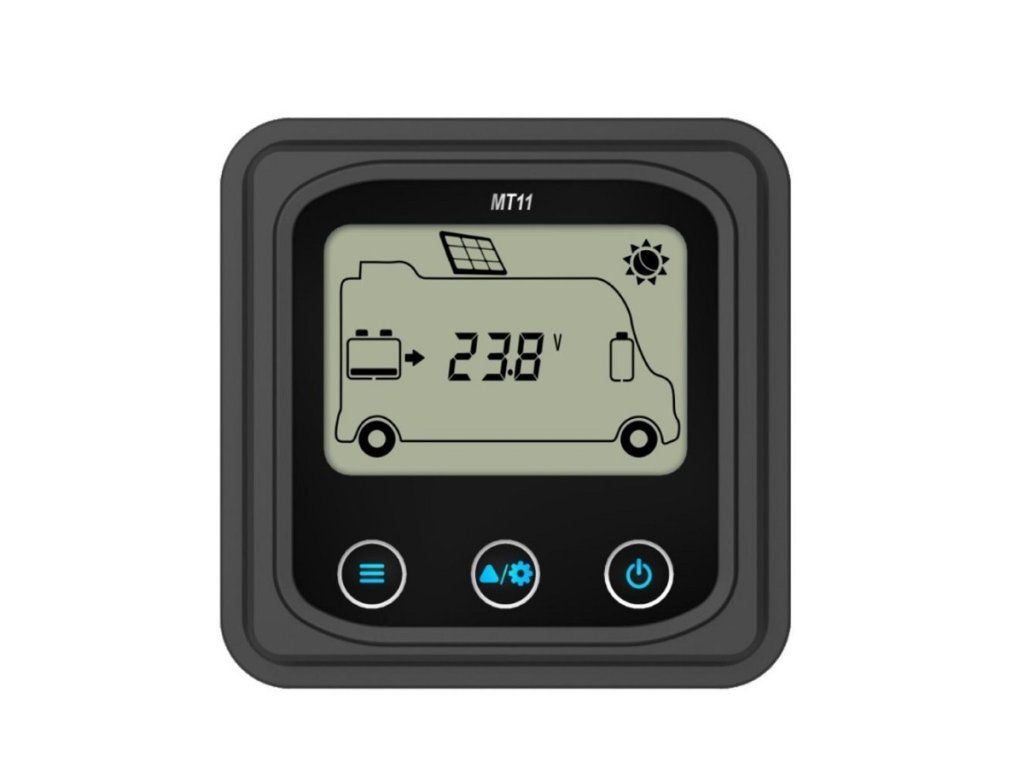

Epever MT11 external display for DuoRacer solar controller

Product detailed description

The MT Series External Display is an accessory that is compatible with DuoRacer Series controllers. You can monitor the operating data and operating status of the controller using the LCD. On the external display, you can browse the controller parameters, set the battery type and temperature unit, and delete the generated energy. It is suitable for RVs, campers, boats, etc. Features: - Automatically identify and display the type, model and relevant controller parameter data. - Display real-time operating data and operating status of connected devices in digital, graphic and text form using the large screen multi-function LCD display. - The three touch buttons are quick and easy to operate. - No external power supply required. The charge controller powers the MT11. - You can scroll through the controller parameters, set the battery type and temperature units, and delete the generated energy. - Display real-time failure information of connected devices. - Remote communication via RS485 port. - Includes 1.5 m UTP communication cable Basic Specifications: Communication interface: RS485 Communication connector: 3.81-4P Protection: IP20 Dimensions: 114 x 114 x 44.41 mm Weight: 0.11 kg Communication cable, length: 1.5 m Designed for: DuoRacer controllers Operating temperature: -20 to +90 degrees C
