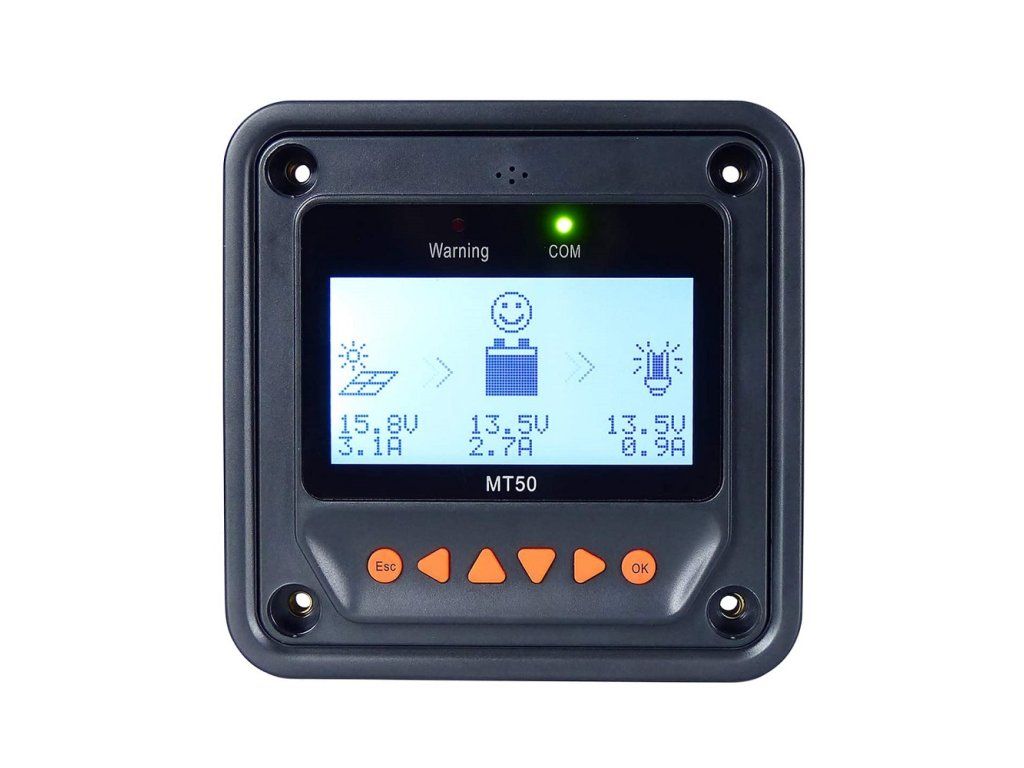

Epever MT50 external display for Tracer and XTRA solar controller

Product detailed description

The new generation of remote controller monitors real-time data on the controller operation and allows its complete setup: switching on/off the load, setting charging parameters and more. The MT50 display is compatible with EPsolar MPPT XTRA series, , MPPT AN series, PWM LS series controllers. Not compatible with DuoRacer series!!! Basic Features: -Automatic controller identification and display of type, model and relevant parameters -Large screen multifunction LCD display shows all system operating data in digital graphic and text form -Six navigation function buttons, operation is convenient and fast -Records real-time energy statistics -No external power supply required -Real-time monitoring and audible alarm -RS485 communication interface Connection between controller and display via cable with crimp terminals (included). Technical specifications Electrical parameter Self-consumption - Backlight ON<23mA - Backlight OFF<15mA Mechanical parameter - Front panel dimensions 98 × 98 × 3.86 mm - Frame dimensions 114 × 114 × 4.49 mm - RJ45 connector type - Meter cable: Standard 2m, Max. 50m - Meter weight: 0.23Kg Ambient temperature: -20°C to +70°C
