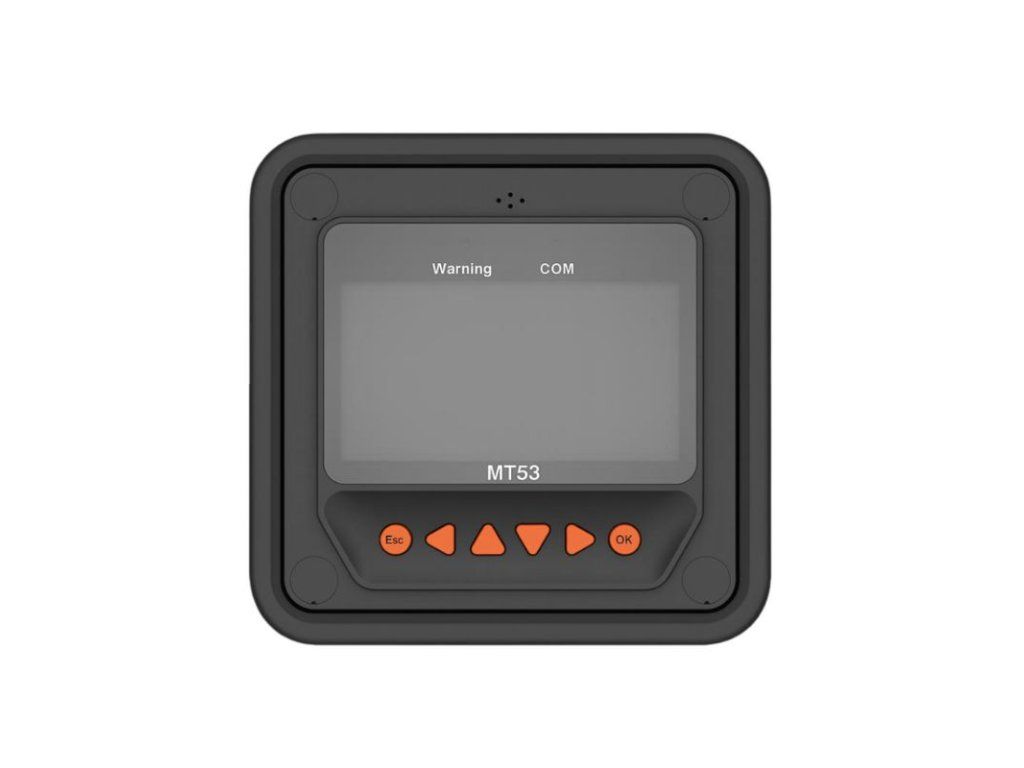

Epever MT53 external display for IT/ET-NC G3 series solar MPPT controllers

Product detailed description

Epever MT53 external display for IT/ET-NC G3 series solar MPPT controllers. It allows monitoring and setting of the controller. This product is required for full control of the solar controller. It is designed for remote management and display of current, voltage and controller status values. The display is designed for wall mounting and allows continuous monitoring of your solar system from the comfort of your living room. Product Features: - Automatic controller identification - Large multifunction display - 6 navigation buttons - Real-time statistics - Power supply directly from the controller - Real-time monitoring and audible alarm for controller failure information - RJ-45 communication interface The display is supplied with mounting accessories and cable. Specifications: - Display: LCD, backlit, monochrome - Interface: RS-485 (RJ-45 connector) - Power supply voltage: DC 5-12 V (via communication port) - Power consumption: 15 mA (without backlight), 23 mA (with backlight) - Operating temperature: -20 °C to +70 °C - Dimensions: 114 × 114 × 48.2 mm (mounting dimension 84 × 84 mm) - Weight: 230 g
