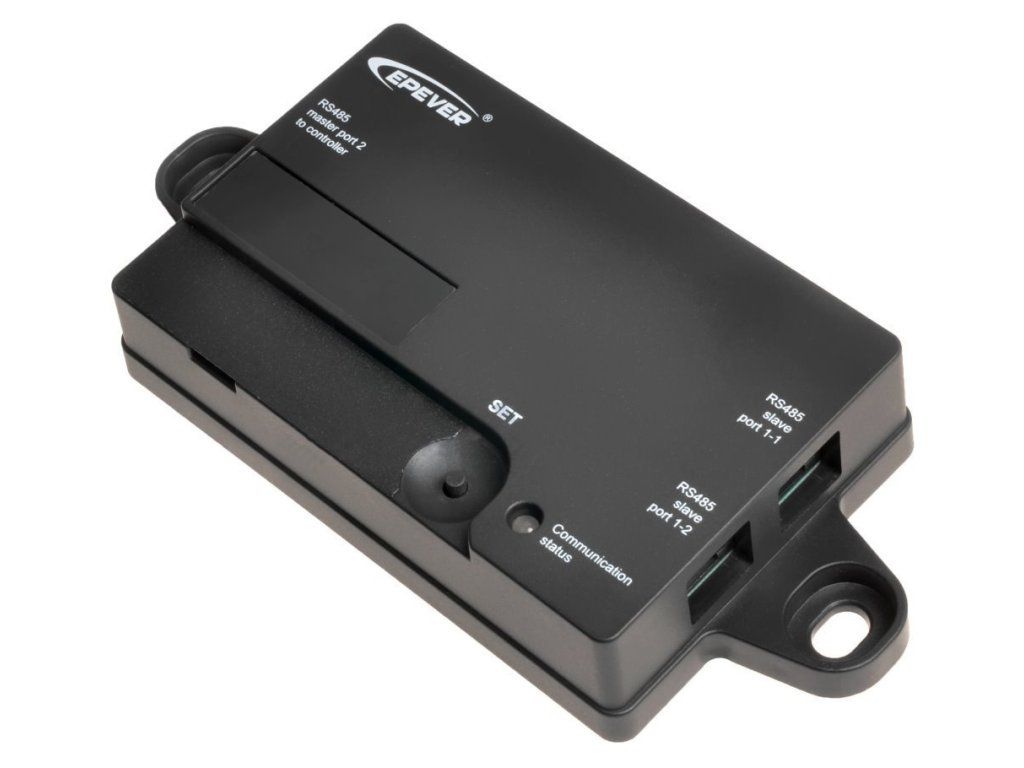

Epever PT Adapter PAL-ADP-50AN

Product detailed description

PAL-ADP-50AN is a parallel adapter for controlling and synchronizing the charging of multiple AN-series MPPT solar controllers connected to a single battery in parallel, which also monitors the charging and operating status in real time. The adapter automatically changes the charging and operating status of the controllers according to the battery status to extend the life of the system. Features: - Unification of multiple controller parameters - Charge balancing function enables intelligent charge control of each controller - Monitor the operating status and intelligently control the connected controllers - Up to 6 parallel connected AN series solar MPPT controllers are supported - Standard Modbus communication protocol and associated monitoring software for pC - One-button baud rate setting of 9600 or 115200 baud - LED operating status indicator A CC-USB-RS485-150U data cable (not included) is required to set up individual controllers for parallel operation, monitoring and parameter setting using a PC. Technical specification: Use for models: MPPT series AN (50-100 A) Input voltage: 5 V DC (power supply directly from the controller) Operating power consumption: 0.25 W Serial port baud rate: 9600 115200 (default) Overall dimensions 151.5×69.9×25.7 mm Mounting size. 6.5mm Operating temperature: -35~55°C Protection: IP30 Weight: 30 g
