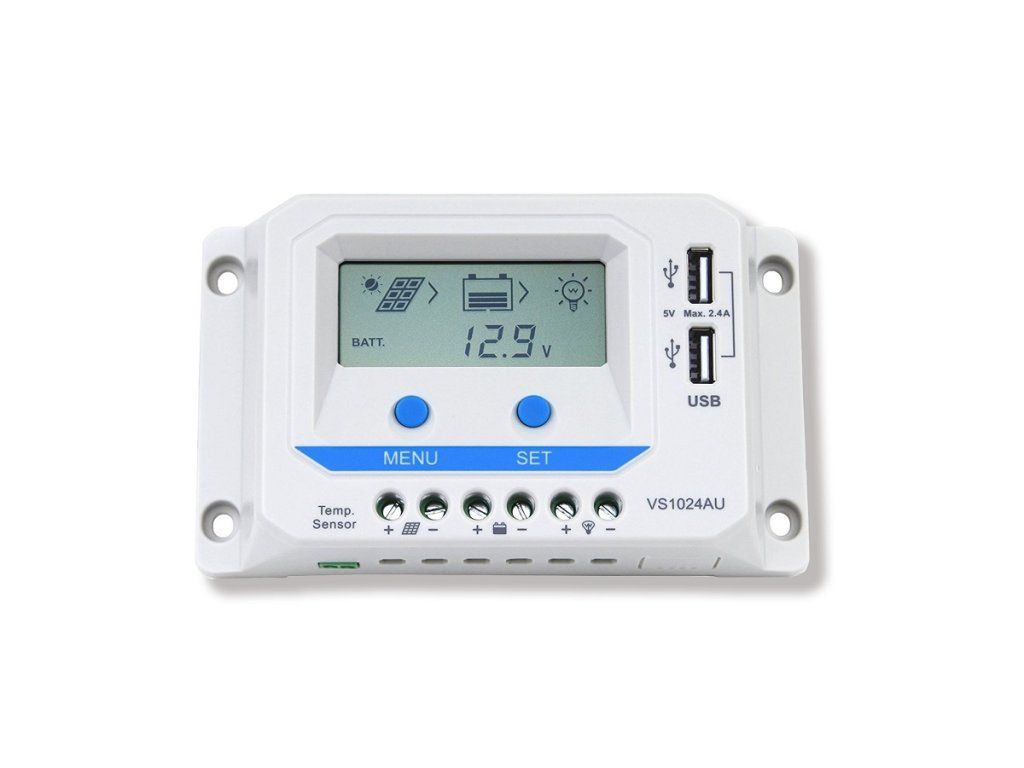

Epever VS1024AU solar PWM controller, 12/24V, 10A with LCD display VS series

Product detailed description

The built-in LCD clear display gives you information about the solar panel voltage and current, battery voltage and charging current, as well as the current draw for DC appliances. It also offers statistical information on the total amount of energy produced and consumed. Using the buttons below the display, you can set one of three types of lead acid battery: sealed, gel or open liquid. Furthermore, this model now offers two USB outputs for charging e.g. mobile phones or other portable electronic devices. The maximum USB output current is 2.4A. Product features: - Automatic detection of 12V or 24V - Overvoltage protection. - 24V, 24V or 24V, 24V or 24V. - Protection against over-polarity of solar panel and battery connection. - Low voltage disconnects the output of the load. - Optional external temperature sensor - Maximum charging and discharging current is 10A - Dimensions: 142x85x41.5mm - Weight: 220g. - Operating temperature: -25°C to +55°C - Maximum size of connection cables: 4mm2 - Designed for indoor installation, wall mounting. - For recharging lead-acid batteries - Protection rating: IP30
