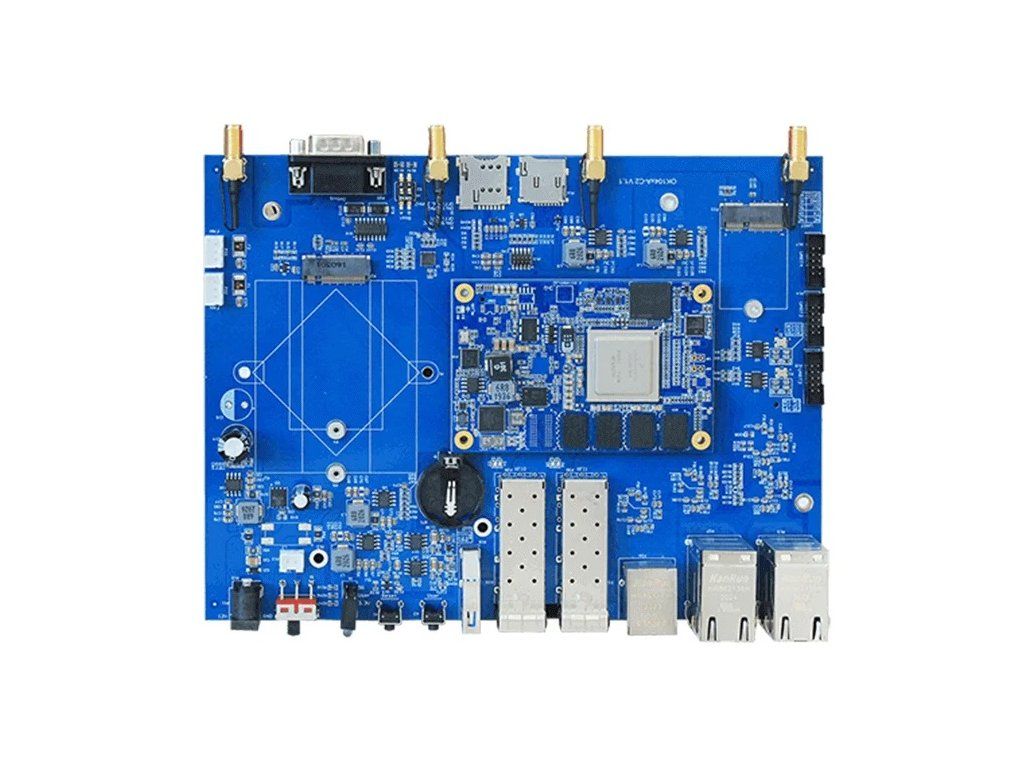

Forlinx OK1046A-C2 Single Board Computer

Product detailed description

OK1046A-C2 is a single board computer/development board LS1046A designed based on NXP Cortex-A72 processor with quad-core processor with frequency up to 1.8 GHz. It consists of a carrier board and a SoM (system-on-module) with a decoupled structure using a COM Expressor connector with a transfer rate of up to 10 GHz. The processor can support 2 native SFP+(10Gb), 5 Gb Ethernet, and also USB 3.0, M.2 (5G), mSATA, M.2 (WiFi), UART and other useful peripheral interfaces are available. From a software perspective, Ubuntu and OpenWRT are well supported. Widely used in industrial routers, IP-PBX, power management, automation and other areas. Product parameters: CPU: NXP LS1046A Architecture: Quad-core, Cortex-A72 RAM: 2GB/4GB DDR4 OS: Ubuntu-18.04.1/OpenWrt v18.06.0-rc2 Operating temperature: -40 to +75 degrees Main frequency: 1.8GHz ROM: 8GB eMMC; 16MB QSPI NorFlash Power supply voltage: 12V Dimensions: 84mm×55mm
