FTTH Fiber optic column, ST-120/27/10 48J, 48x SC simplex

Product detailed description

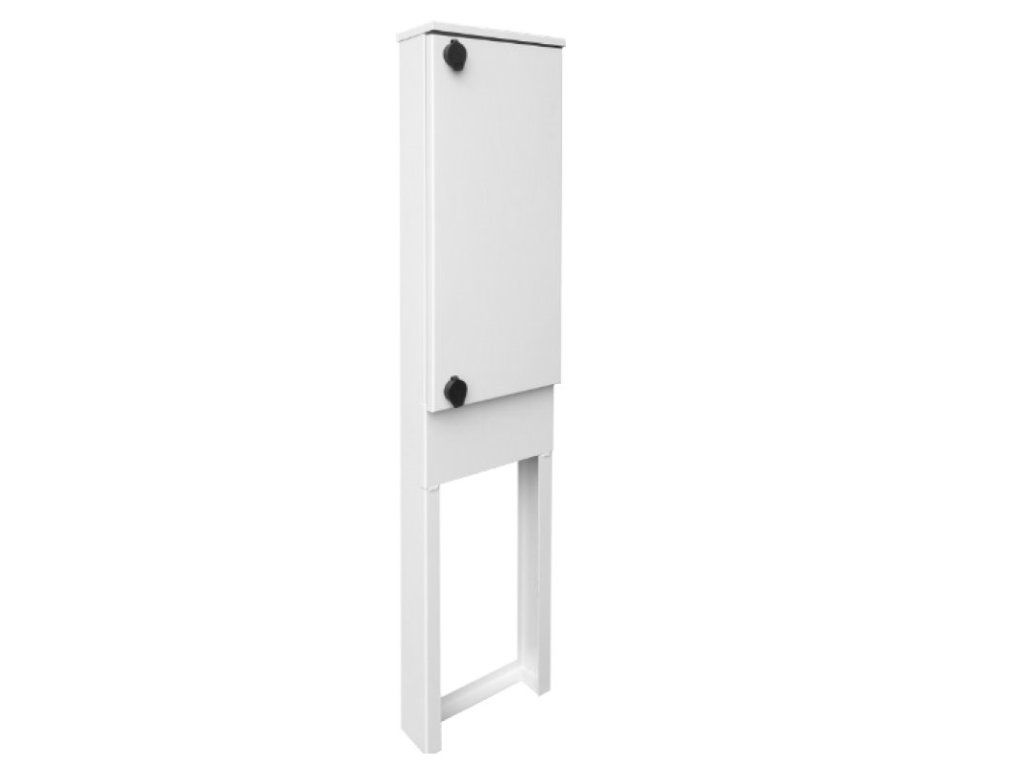

Outdoor FTTH pole with installation in the ground is used for connecting fiber optic cables in front of the house with very easy access. The pole allows the connection of up to 48 optical fibers and the termination of several optical cables. The column has a grey RAL 7035 colour and IP65 protection rating. The dimensions of the post are 120 × 27 × 10 cm and the smaller lower part of the post is buried in the ground (60 cm). The upper part with the optics connection is lockable with 2 locks included in the package. Key features - Capacity for 48 subscribers (up to 48 SC connectors), up to 6 feeder cables - Recessed 60 cm - Organization for hanging cables and microtubes coming out of the ground - Lockable with 2 hermetic locks - RAL 7035 grey - Degree of protection IP 65, vandal protection IK10 - The column is made of sheet metal with a 1mm thick "Magnelis" coating Technical parameters Physical characteristics Degree of protection: IP65 Design: outdoor Connector holes: (48) SC Simplex Antivandal (impact protection): IK10 Width [mm]: 270 Height [mm]: 1200 Depth [mm]: 100 Colour: Grey
