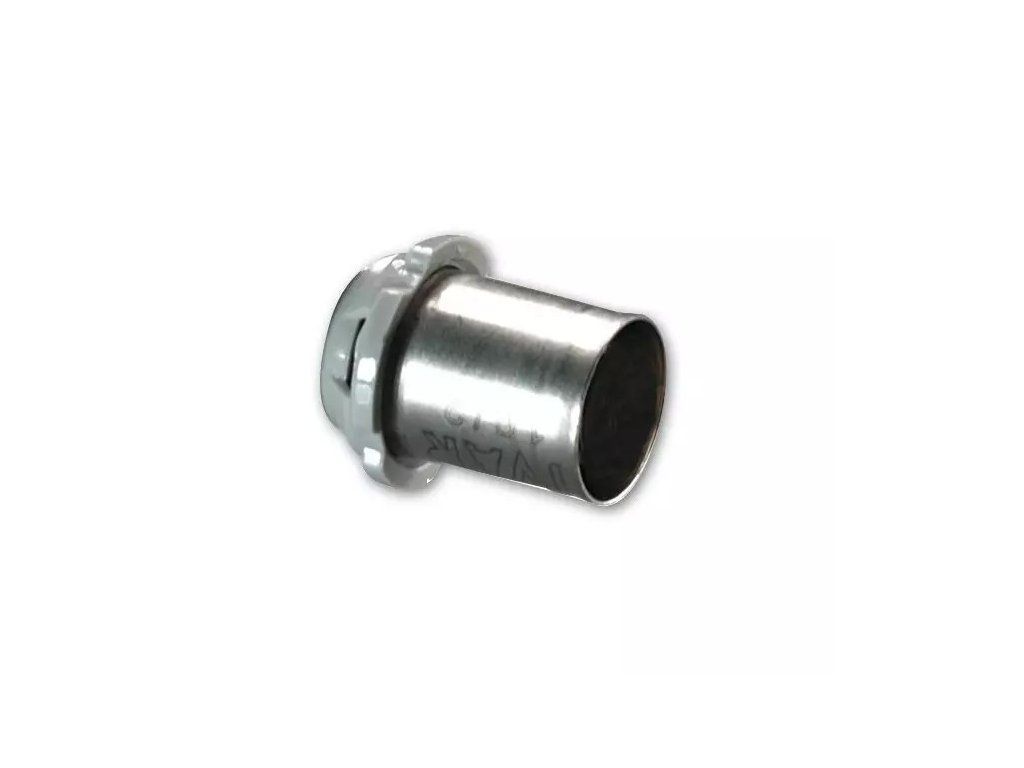

Sleeve - for PRESS fittings brass - 20x2 IVAR.O-PRESS

Product detailed description

Press fitting sleeves are essential components in systems where precision and durability are critical. Installers working in industrial environments, irrigation systems or compressed air applications frequently encounter the need for reliable, corrosion-resistant connections. This sleeve is suitable for dry compressed air systems and industrial applications where potable water is not required. It integrates into systems where long-term stability and resistance to environmental factors are necessary.

The sleeve is commonly used in large-scale irrigation projects, such as those involving permanent irrigation systems, and in industrial facilities where non-potable fluids are transported. It is not suitable for drinking water distribution systems due to material limitations. The stainless steel construction ensures resistance to corrosion and mechanical wear, making it ideal for environments with fluctuating conditions.

Technical parameters

Installation and connection

Installation involves positioning the sleeve over the pipe prior to pressing the fitting. The sleeve must align precisely with the press fitting to ensure a secure connection. The connection size corresponds to the pipe dimensions and must be verified before installation. Installers should check that the sleeve is not damaged and that the surface is free of debris before assembly. Common mistakes include misalignment during pressing and using incorrect sleeve sizes, which can compromise the integrity of the joint.

Compatibility and accessories

This sleeve is compatible with IVAR press fittings designed for ALPEX systems. When assembling the connection, it must be used in combination with the appropriate press fitting and pipe. No additional accessories are required for standard installation. Installers should ensure that all components are from the same system series to maintain compatibility and performance.

Technical background for designers

The sleeve functions as a reinforcement element in press fittings, ensuring a tight and stable connection. The stainless steel material provides high tensile strength and resistance to environmental factors. In system design, the sleeve contributes to the overall mechanical stability of the joint. Long-term performance is influenced by the quality of the press operation, the condition of the pipe surface and the absence of corrosive substances in the transported media.

Service and operation

Regular inspection is recommended to ensure the sleeve remains intact and free from damage. There are no scheduled service intervals specified for this component. During routine checks, installers should look for signs of mechanical stress, corrosion or misalignment. If any issues are detected, the sleeve should be replaced to prevent potential leaks or failures.

Frequently asked questions

Can this sleeve be used in drinking water systems?
No, it is not suitable for potable water distribution. The material is intended for non-potable media only.

What is the maximum operating pressure for this sleeve?
Operating pressure limits depend on the complete fitting system and are specified in the manufacturer’s technical data sheet.

Is this sleeve compatible with all IVAR press fittings?
It is specifically designed for use with press fittings in the ALPEX system. Use only with compatible fittings to ensure proper function.

Can the sleeve be reused after disassembly?
No, once pressed into place, the sleeve cannot be reused. A new sleeve must be used for each installation.
