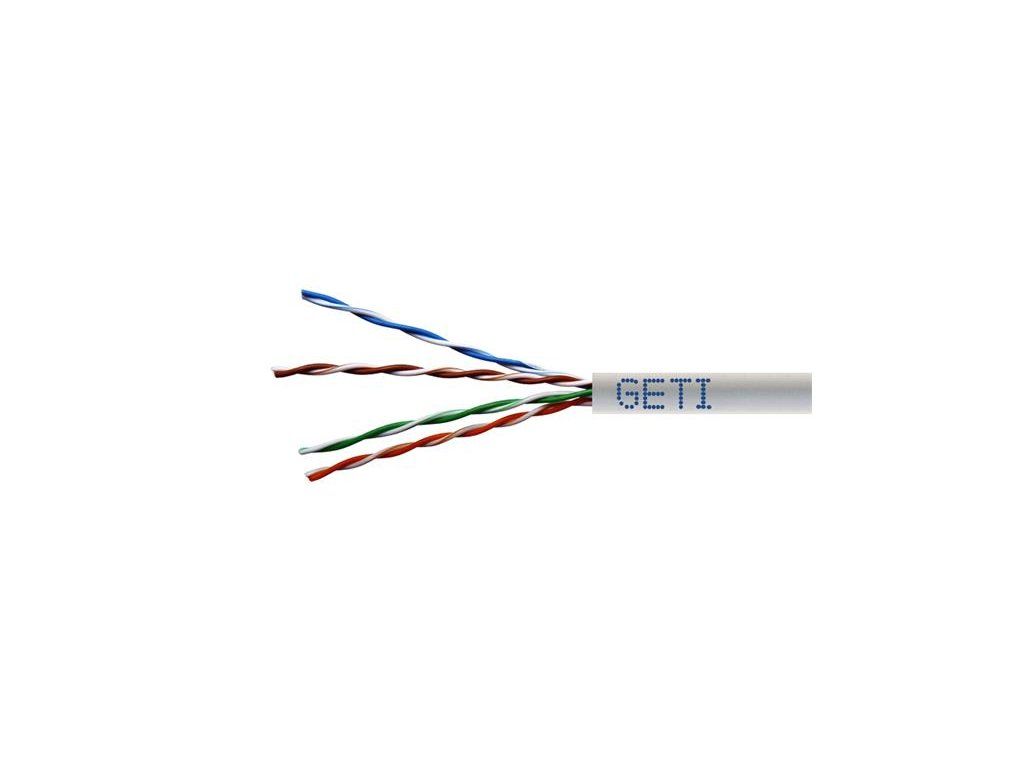

GETI UTP Cat.5e wire 305m
Code: TI_03670011Product detailed description
Geti UTP Cat.5e wire 305mProfessional wire for applications in data transmission structured networks.
Technical parameters:
- inner conductor: pure copper, ø 0.48 mm ± 0.005
- insulation: polyethylene 0,90 ± 0,05 mm
- colour resolution:
1.pair: white-blue, blue
2.pair: white-orange, orange
3.pair: white-green, green
4.pair: white-brown, brown
- conductor resistance: max. 93.8 Ω
- capacitance: 56 pF/m
- the cloak: PVC
- colour: white
- minimum bending radius: 40 mm
- working temperature: -30℃+60℃
- storage temperature: -30°C+70°C
- pack 305m = 1pc
- packing quantity: 305m - unwinding box
-Connector diameter:
Attenuation MHz / dB / 100 m:
- 1MHz - 2dB
- 4MHz - 4.1dB
- 8MHz - 5.8dB
- 10MHz - 6.5dB
- 16MHz - 8.2dB
- 20 MHz - 9,3 dB
- 25 MHz - 10,4 dB
- 31.25MHz - 11.7dB
- 62.5MHz - 17dB
- 100 MHz - 22 dB
Additional parameters
| Category: | Computer wires |
|---|---|
| EAN: | 8595563717943 |
| EAN: | 8595563717943 |
