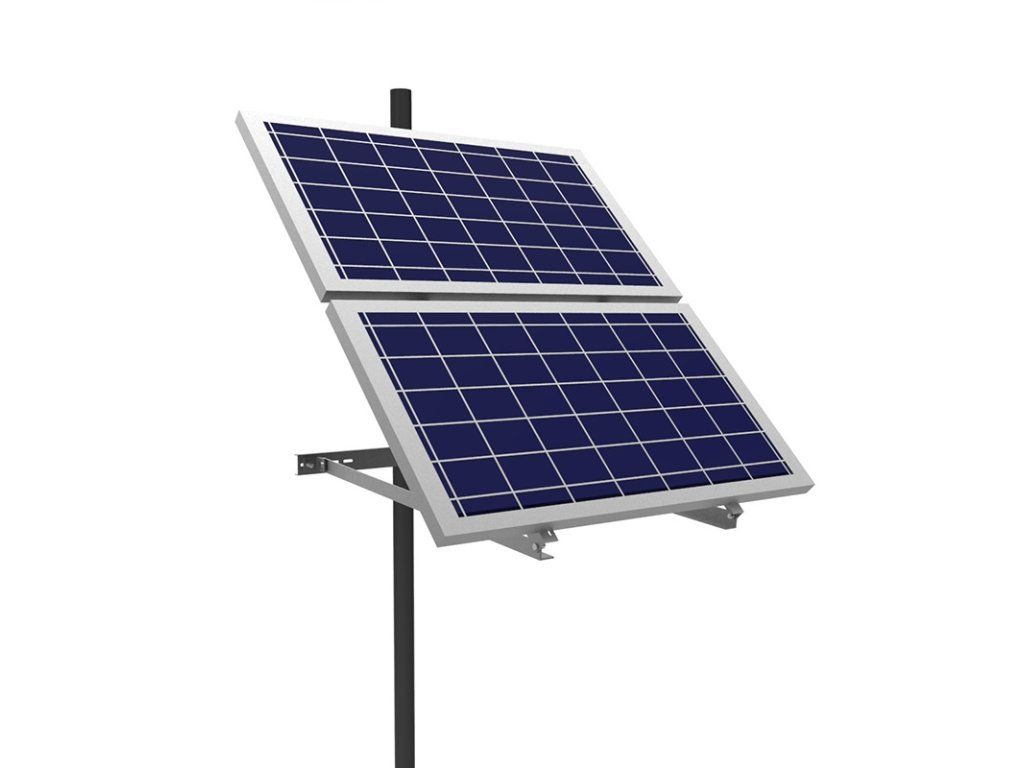

Holder for 2 pieces of solar panels on a mast, pole

Product detailed description

It is used for mounting 2 pieces of solar panels on a mast, pipe or pole etc. For panels with aluminium frame.


Suitable for two solar panels 60W - 150W, or for panels with a maximum width of approx. 680 mm.

Get up to 25% higher solar panel efficiency by tilting the panels towards the sun instead of laying them flat.


Product parameters:

- Tilt angle: 30 - 60 degrees
- Weight: 5 kg
- Material: galvanised steel and anodised aluminium
- Colour: Natural
- Anti-corrosion material: anodized and galvanized
- Installation: outdoor
- For panels with aluminium frame
- Mounting material: included


Dimensions of the assembled holder:
- Length of the longest side:  140 cm
- Length of mounting side at the mast: 78 cm
- Length of connecting rail:  80 cm


Package dimensions: 148 x 9 x 9 cm
Total weight:  5,6 kg


Installation on a mast, column with a diameter of 70mm to 85mm.The dimensions of the pole mounting can be changed by purchasing other types of tie straps.
