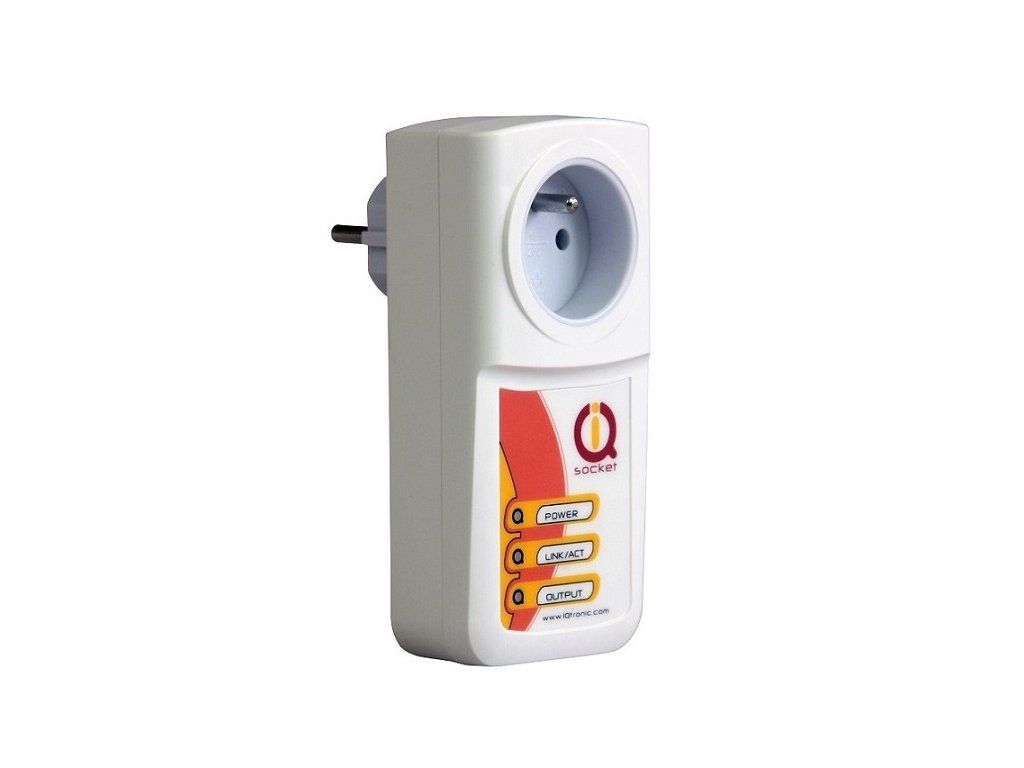

IQtronic IQTS-IP200 Smart Socket IQsocket LAN

Product detailed description

The IQTS-IP200 is a device for automatic monitoring and restarting of devices connected to the 230VAC output, it also allows manual switching on and off of the output socket, or using a scheduler. It features a single Ethernet interface with management via HTTP and SNMP. The output of the device is a 230V socket with a maximum current load of 16A. All changes in the state of the output socket and the events that triggered it are stored in a log. IQsocket IQTS-IP200 offers the following application options: - Manual control of the output socket - Remote control of the output socket using SNMP SET. - Control via HTTP. - Automatic control according to loss assessment. - Automatic control by scheduler. - All events are logged to an internal log. Switching element 30A for switching all types of loads, also capacitive. Innovations compared to IQSW_IP10 are: 1. Ability to add/delete scheduler records using SNMP 2. In the Test rules menu, the option to wait for the tested connection to be restored. 3. Scheduler is extended with restart option. 4. Option to automatically change daylight saving time and standard time. 5. Log capacity is up to 100 events. 6. Added Ethernet surge protection. Product parameters: Input socket: 90 - 250V / 50Hz Power input: 3W Output power socket: 230V/16A/50Hz, switching relay 30A Data Interfaces: 10BaseT Ethernet, RJ-45 Control and configuration: web-based HTTP management interface, SNMPv1.0/2.0, Manual push-button control POWER indicators: red LED LINK/ACT: green LED OUTPUT: yellow LED Security: site administrator account - site management. SNMP community read/write passwords Dimensions: 140 x 65 x 55 mm (92 mm with plug) Humidity: 80% max, non-condensing Weight: 200g
