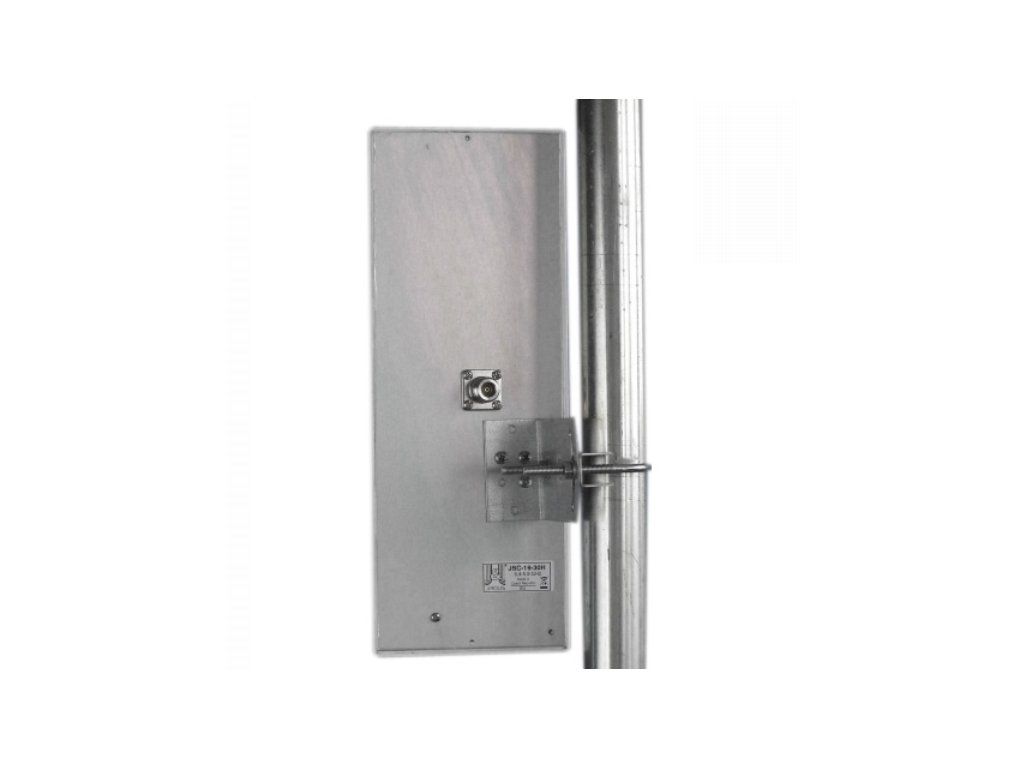

Jirous sector antenna JSC-19-30V 19dBi 5GHz 38°

Product detailed description

5GHz sector panel antenna with H/V radiation pattern 38°/9° and vertical polarization from renowned domestic manufacturer JIROUS at a very reasonable price with guaranteed quality of workmanship, parameters and characteristics. Included in the delivery is a positioning bracket on the mast / bracket. Application: - sector antenna with vertical polarization - suitable for busy areas - for dividing an area into several sectors - Vertical radiation angle allows quality connection for angularly distant clients - suitable as a client antenna with horizontal polarization - suppresses interference Technical parameters: - Frequency band: 4.9 - 6.1 GHz - Gain: 18.6 dBi ± 0.6 - PSF: 1.4 - Beam angle: h-plane 34-38° (-3dB) e plane 8-9° (-3dB) - Polarization: vertical (can also be used horizontal)* - Connector: N - Female - Bonding of covers: \Di-Fix\ technology - lifetime strength guarantee. - Dimensions (without connector): 128 x 326 x 30 mm - Cover: UV stabilized ABS plastic - Back: aluminium alloy sheet + galvanic coating - Connector: gold-plated contact, PTFE (Teflon®) dielectric - Pole mount o19 - 54 mm: infinitely adjustable in both directions * With horizontal polarization, the radiation angle is 8-9° in the horizontal plane and 34-38° in the vertical plane. This position is suitable for clients as it significantly suppresses interference.
