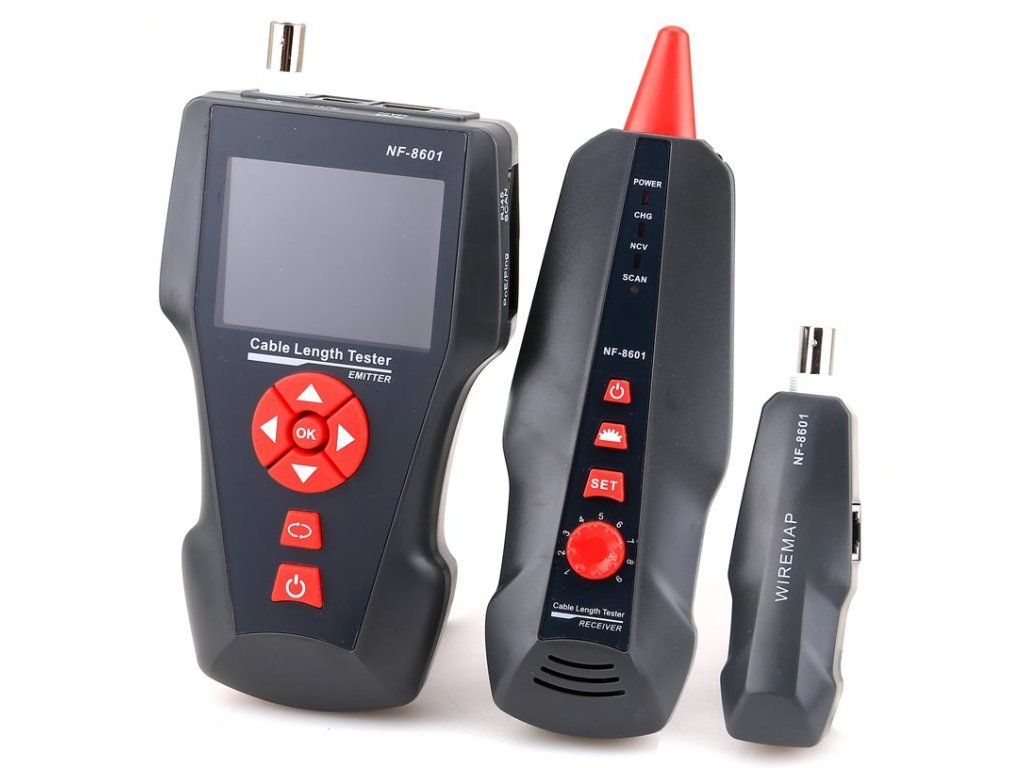

KELUSHI NF-8601 Multifunction Network Audio Cable Tester with LCD, Lithium Battery (UTP/STP,Cat5e/Cat6,BNC)

Product detailed description

KELUSHI NF-8601 Multifunctional Network Audio Cable Tester with LCD, Lithium Battery (UTP/STP,Cat5e/Cat6,BNC) Functions 1. PoE/PING testing. 2. Track targeted cables among many unknown cables; 3. Fault finding for cable with RJ11 / RJ45 / BNC connectors; 4. Accurately measure cable length. 5. Voltage detection function. 6. Memory and data storage, export or upload data from PC. 7. Lithium battery and color screen Advantages 1. Large LCD color display 320*240 2. Storage and memory function 3. Automatic power on and off 4. Low voltage alarm function 5. Lithium battery for more efficient operation Package contents: 1x main tester (NF-8601-M) 1x Receiver (NF-8601-S) 1x Remote Identifier (NF-8601-R) 1x microUSB charging cable 1x 5v/1A adapter 1x RJ45 test cable 1x RJ11 test cable 1x cable clamps 1x Manual EN Technical parameters: Main tester - parameters Indicator: LCD 320x240 mm, with backlight Cable test types: STP/UTP 5E,6E network , telephone , coaxial cable. Max. wiremap distance: 2000 m Max. tracking distance: 2000m Max. cable length distance: 1000m Max. calibration distance: 10m Accuracy: 3% ( after calibration ) Compatible connectors: RJ11,RJ45,Coaxial, PING/POE,BNC Cable Map Indication: LCD (#1-#8) Battery Type: 3.7V lithium battery 1800mAh Dimensions: 173x92x34mm Receiver - parameters Cable test types: RJ11,RJ45, BNC Cable types: 2 cores Battery type: 3.7V lithium battery 1800mAh Dimensions: 183x58x35mm Remote Identifier - Parameters Connector types: RJ11,RJ45, BNC Dimensions: 106x32x30mm
