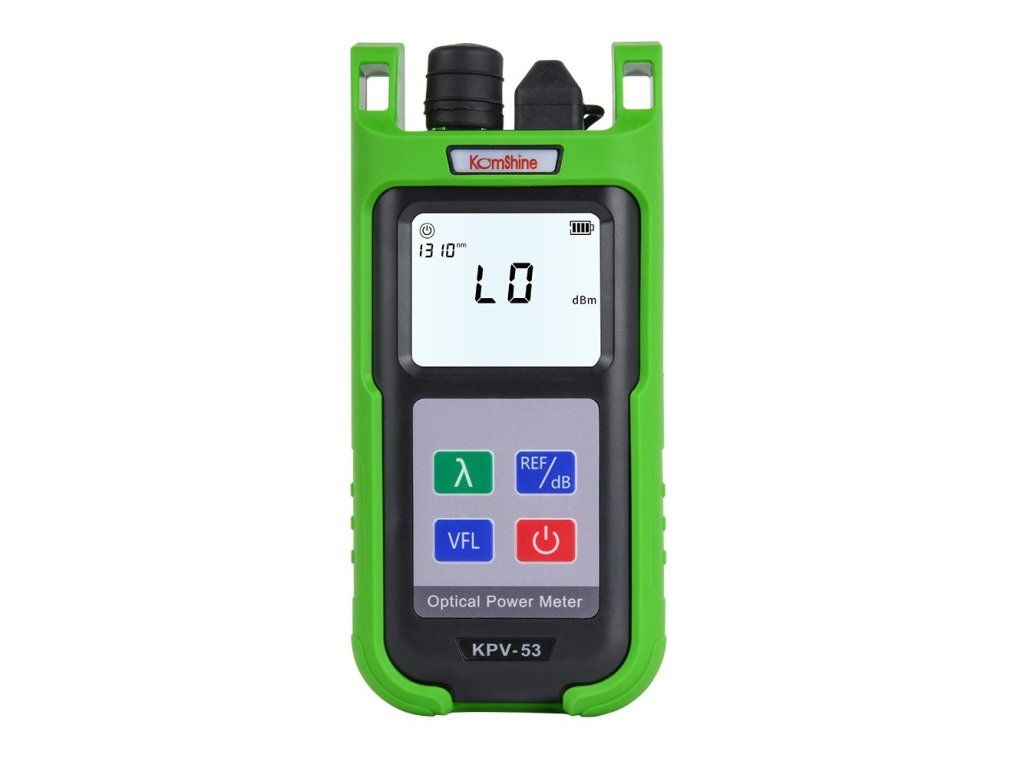

Komshine KPV-53 Optical Power Meter & Visual Fault Locator

Product detailed description

The optical power meter (Power meter) combined with the fiber fault detector (Visual fault locator) allows not only to measure the attenuation on the optical path by direct method, but also to detect faults on the path visually. Designed for all FTTx applications - Integrates optical power meter and visual fault locator. - Reliable basic functions for the most cost-effective testing - The optical power meter can measure dBm, dB and uW in the 850, 980, 1300, 1310, 1490,1550 and 1625nm wavelength bands. - The visual fault locator uses CW mode and modulation mode and helps detect fiber optic cable up to 10km long. Optical power meter (OPM) specifications: - Wavelength (nm): 850/980/1300/1310/1490/1550/1625 - Detector type: InGaAs - Accuracy (dB): ±0.02 - Power range (dBm): +10~-70dBm/-50~+26dBm - Unit display: dB, dBm, µm - Optical Adapter Type: 2.5mm + SC - Dimensions (mm): 88.5 W x 57 H x 19.5 D - Data storage: --- - Data transmission: --- - Auto off (min): 5 Specifications of VFL (Visual fault lovator) - Wavelength (nm): 650 - Compatibility: SM & MM - Power (mW): 10 - Detection distance (km): > 10 - Adapter Type: SC,FC,ST Operating Specifications: - Power supply: 3xAA 1.5V alkaline batteries - Operating Time (h): 50 (typical) - Display: backlit LCD - Operating temperature (°C): 20~75 - Storage temperature (°C): -40~85 - Relative Humidity: 95% RH from 0~40?
