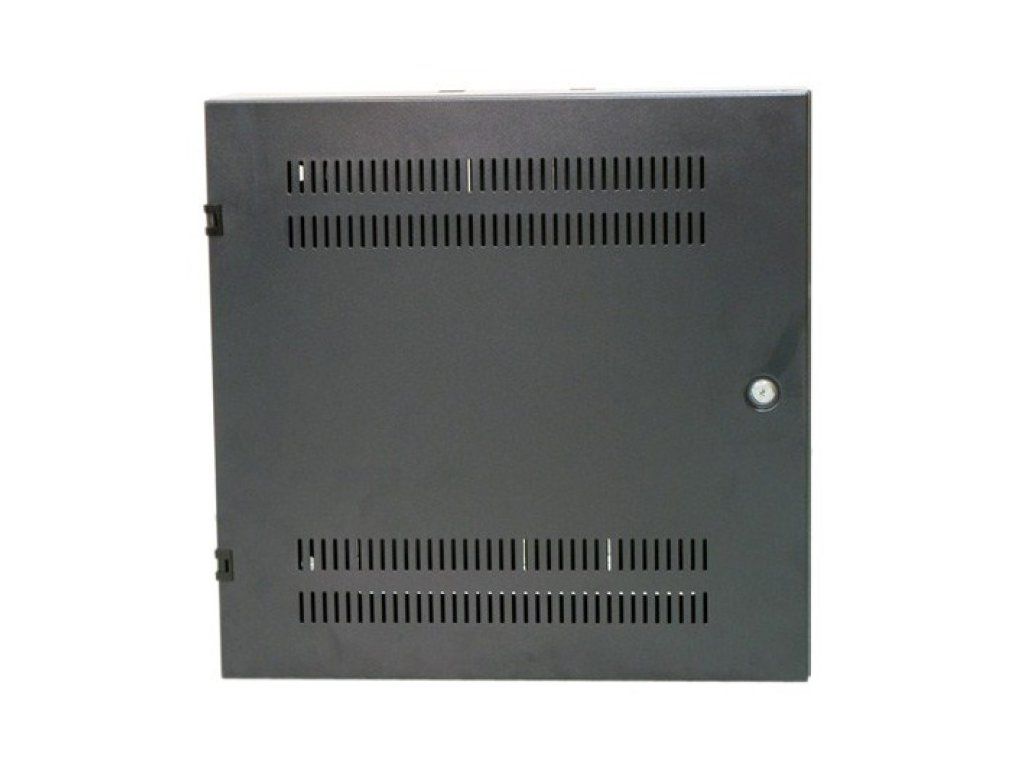

Lexi-Net wall-mounted rack SOHO vertical 19" 2U+4U, depth 170mm, black

Product detailed description

Enclosure designed for indoor installation. Particularly suitable for the installation of 19" equipment or distribution panels with minimal depth. This allows the installation of more powerful 2U Ethernet switches (or up to 3.1U) with distribution panels with a total footprint of 4U. Wall mounting by hanging. Lock Specifications: - Dimensions: - Outer width: 540mm - Outer depth: 150mm (including door 170mm) - External height: 550mm - Usable internal height: 540mm - Enclosure material: rolled steel, 0.8mm thick - Colour: baked enamel, black - The distance of the rail from the ceiling is 260mm and from the bottom 280mm. Maximum dimensions for an active element that can be installed in portrait: 19" width, 140mm device depth (measured from 19" mount), 140mm device height max (mount is for 2U). The maximum depth of the installable patch panel is 95mm.
