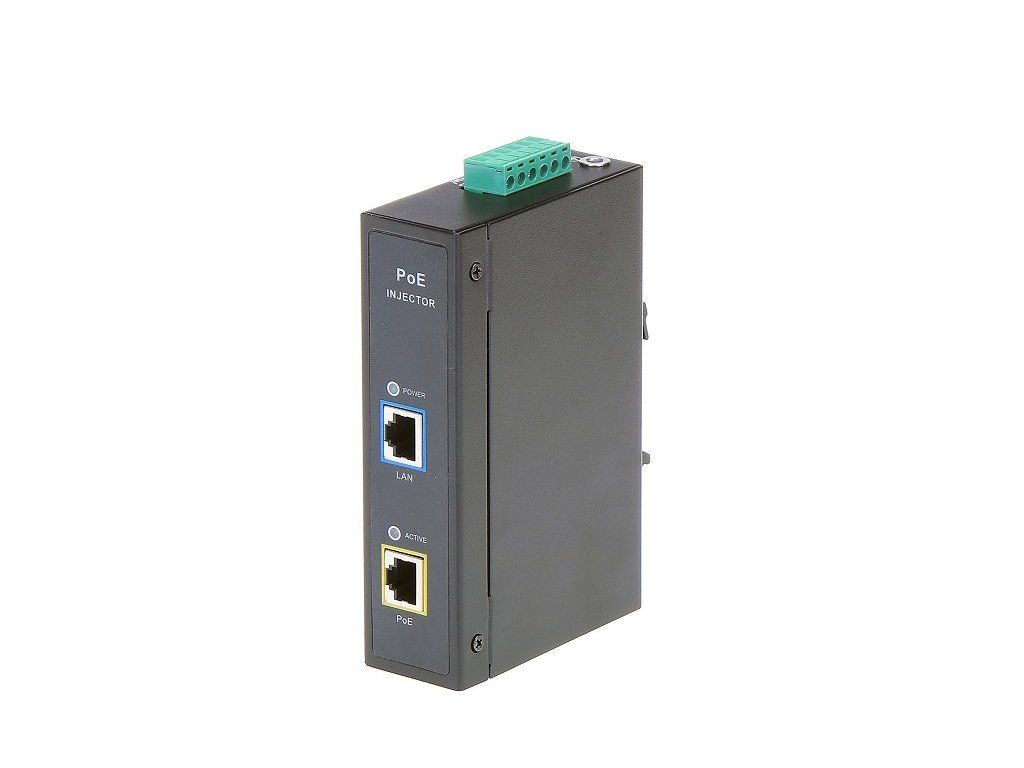

MaxLink DIN30 PoE injector - 12-48VDC, 802.3af/at, 55V, 550mA, 30W, 1Gbit

Product detailed description

The MaxLink MAXPIDIN30 is a DIN rail mounted active PoE injector with 12 to 48V DC input power and a built-in voltage converter. The output of this power supply is a Gigabit port with 802.3af/at PoE (55V) support for WiFi, VoIP or wireless links. PoE is distributed over pins 4,5(+) and 7,8(-). The second Gigabit LAN serves as a data input. The total power of the power supply is 30W. The power supply has the advantage of 6kV (10/700us) surge protection. This PoE injector is suitable for locations where you already have a central power source - either a solar panel or a strong power source. Technical parameters Product Type Physical characteristics Operating temperature [°C]: -40 to 65 Weight [g]: 400 Depth [mm]: 75 Width [mm]: 32 Height [mm]: 115 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power Power on pins: 4.5 (+), 7.8 (-) Output Power - 1port [W]: 30 LED indication: Yes Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 1 Output Voltage [V]: 55
