MaxLink DIN60 PoE injector - 12-48VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit

Product detailed description

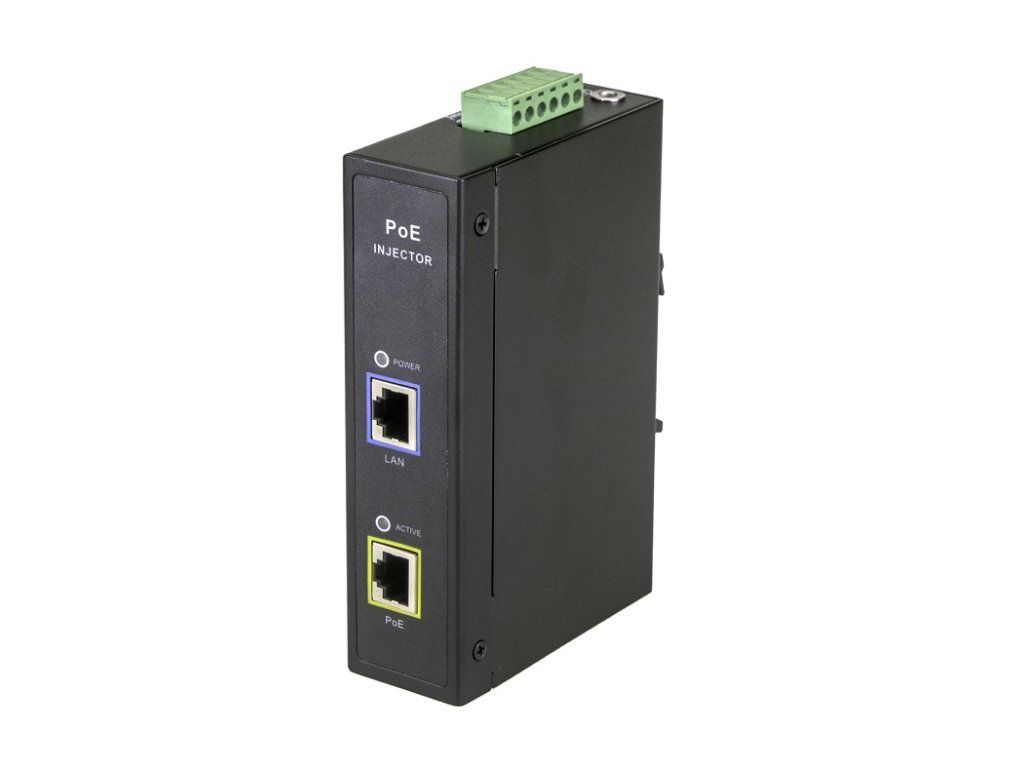

The MaxLink MAXPIDIN60 is a DIN rail mounted active PoE injector with 12 to 48V DC input power and a built-in voltage converter. The output of this power supply is a Gigabit port with 802.3af/at PoE support (55V) designed for WiFi, VoIP or wireless links. PoE is distributed over pins 1,2,7,8 (-) and 3,4,5,6 (+). The second Gigabit LAN serves as a data input. The total power of the power supply is 60W. The advantage of the power supply is 6kV (10/700us) surge protection. This PoE injector is suitable for locations where you already have a central power source - either a solar panel or a strong power source. Technical parameters Physical characteristics Degree of protection: IP40 Operating temperature [°C]: -40 to 65 Weight [g]: 400 Depth [mm]: 95 Width [mm]: 35 Height [mm]: 135 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power Power on pins: 1,2,7,8 (-), 3,4,5,6 (+) Output Power - 1port [W]: 60 LED indication: Yes Supported PoE-Out standards: 802.3af, 802.3at, 802.3bt Number of PoE Out ports: 1 Output Voltage [V]: 55
