MaxLink DIN60F PoE injector - 44-57VDC, 802.3af/at/bt, 55V, 1.1A, 60W, 1xSFP, 1Gbit

Product detailed description

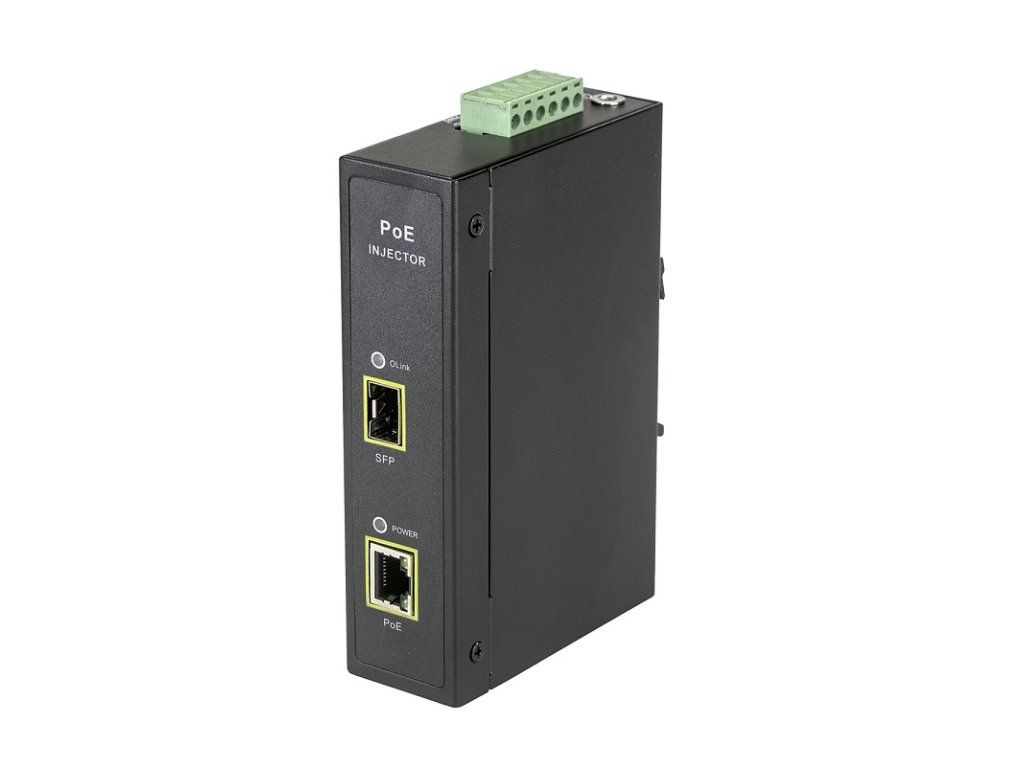

The MaxLink MAXPIDIN60F is a DIN rail mounted active PoE injector with 44 to 57V DC input power and a built-in voltage converter. The injector has one POE LAN output port and one SFP port.The output of this power supply is a gigabit port with 802.3af/at PoE support (55V) for WiFi, VoIP or wireless links. The PoE is distributed over pins 1,2,7,8 (-), 3,4,5,6 (+). The SFP port serves as a data input. The total power of the power supply is 60W. The advantage of the power supply is 6kV (10/700us) surge protection. This PoE injector is suitable for places where you already have a central power source - either a solar panel or a strong power source. Technical parameters Physical characteristics Operating temperature [°C]: -40 to 65 Weight [g]: 485 Depth [mm]: 86 Width [mm]: 35 Height [mm]: 145 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Optical interface: (1) 1000Mbps Power Power supply on pins: 1,2,7,8 (-), 3,4,5,6 (+) Output Power - 1port [W]: 60 LED indication: Yes Supported PoE-Out standards: 802.3af, 802.3at, 802.3bt Number of PoE Out ports: 1 Output Voltage [V]: 55
