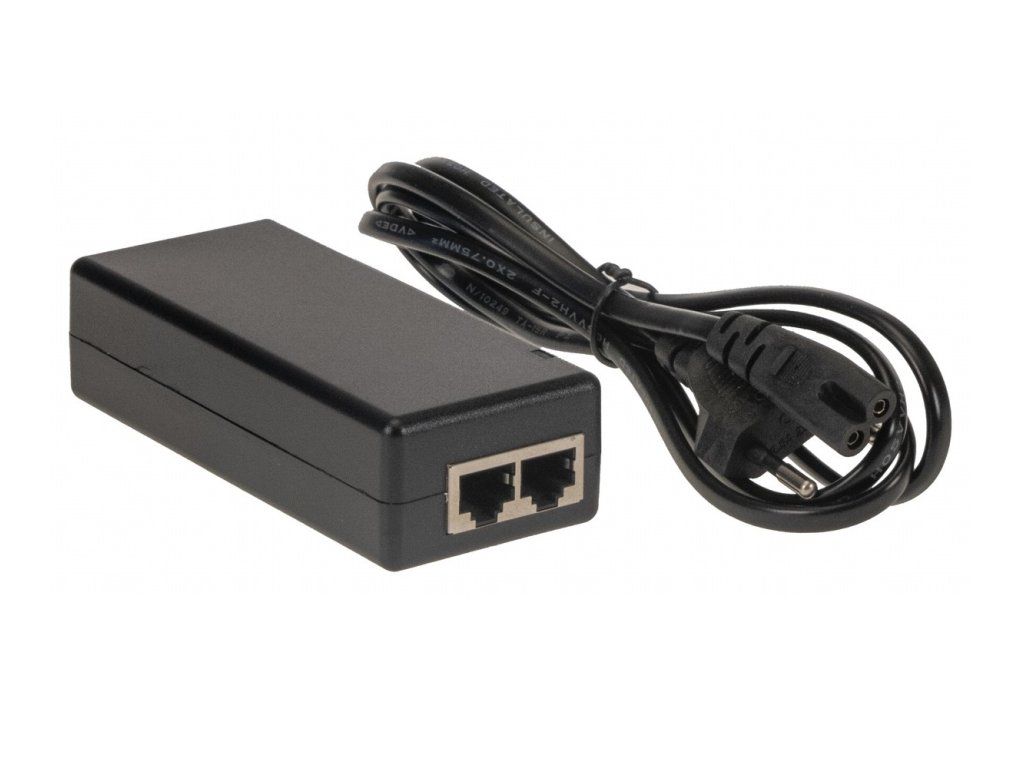

MaxLink MAXPI15FE PoE injector - 802.3af, 24W, 10/100Mbps

Product detailed description

The MaxLink MAXPI15FE is a very simple 100Mbps PoE injector with one POE output port for powering 802.3af-enabled devices with a maximum power consumption of up to 24W, 48V output voltage and 0.5A current. The maximum claimed power of 24W is a compromise between 802.3af (15.4W/port) and 802.3at (30W/port) standards, which is optimal for devices with a maximum power consumption of around 18-20W. The power supply is routed over wires 1,2 (+) and 3,6 (-) and the power injector is especially suitable for powering IP cameras, VoIP phones, etc. A 2-pin power cable is also included. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100 Power supply Output power - 1port [W]: 24 Power on pins: 1,2 (+), 3,6 (-) Supported PoE-Out standards: 802.3af Number of PoE Out ports: 1 Output Voltage [V]: 48 Physical characteristics LED indication: Yes Operating temperature [°C]: 0 to 40 Width [mm]: 44 Height [mm]: 29 Depth [mm]: 114
