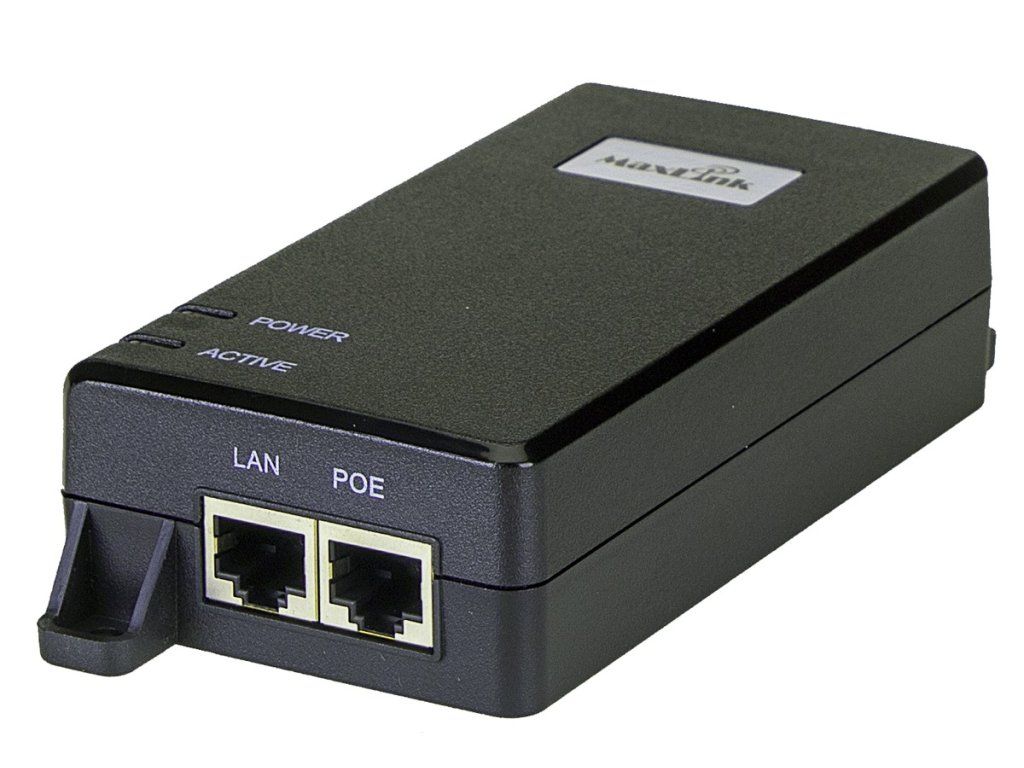

MaxLink MAXPI60-10G PoE injector - 802.3af/at, 52V, 580mA, 60W, 10Gbit

Product detailed description

The MaxLink PI60-10G is a high quality 10Gb POE injector with one POE output port for powering 802.3af/at enabled devices with a maximum power consumption of up to 60W. For better current load distribution, the power supply runs over all four pairs of wires. A power cord is included. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000/2500/5000/10000 Power supply Output power - 1port [W]: 60 Power on pins: 1,2,7,8 (-), 3,4,5,6 (+) Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 1 Output Voltage [V]: 55 Physical characteristics LED indication: Yes Operating temperature [°C]: 0 to 40 Weight [g]: 255 Width [mm]: 66 Height [mm]: 146 Depth [mm]: 34
