MaxLink MAXPI60EXT1x2 Industrial PoE Extender - 802.3af/at, 60W, 1Gbit, 2xPoE

Product detailed description

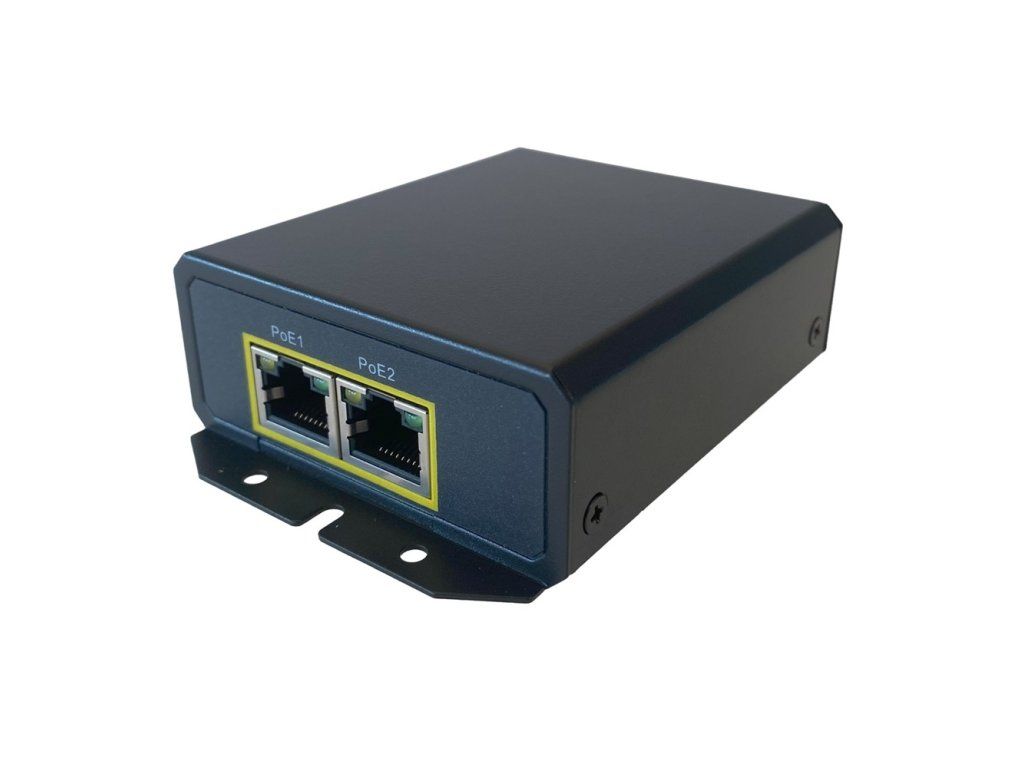

The MaxLink PI60 EXT 1x2 is an industrial PoE extender with three 10/100/1000 Mbps ports, including: 1x 802.3bt/PoE++ PoE input port with 60W or higher up to a maximum of 95W, and 2x PoE output ports, each providing up to 30W of power with 6KV surge protection. It is housed in a shock-resistant metal enclosure and IP40 rated. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 30 Power on pins: 4.5 (+), 7.8 (-), 1.2 (-), 3.6 (+) Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 2 Output Voltage [V]: 55 Physical characteristics LED indication: Yes Operating temperature [°C]: -40 to 65 Weight [g]: 210 Width [mm]: 70 Height [mm]: 99 Depth [mm]: 30
