MaxLink MAXPI60W2x2 PoE injector - 802.3af/at, 55V, 1.1A, 60W, 1Gbit, 2xLAN, 2XPoE

Product detailed description

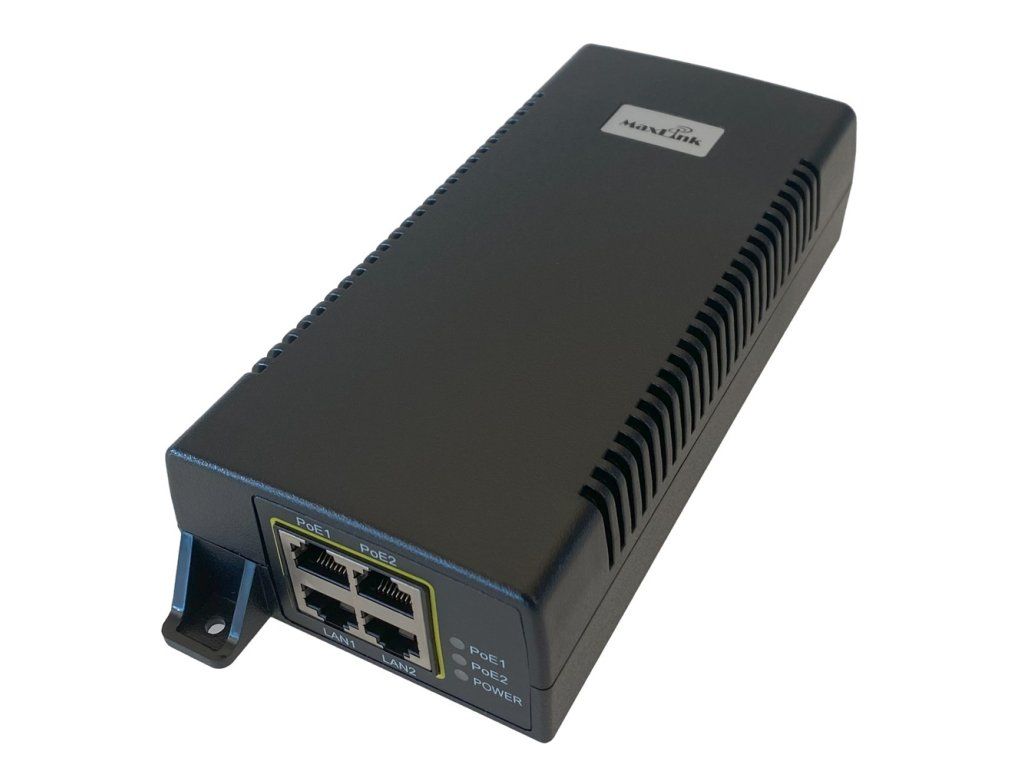

The MaxLink PI60 2x2 is a dual PoE injector that is equipped with 2 LAN inputs and 2 PoE outputs supporting 802.3af/at standard with a total PoE budget of 60W. It can power 1 device with full 60W or 2 devices up to max 30W. The maximum ETH port speed is 1 Gb and when using Cat5e/Cat6 cables, the PoE injector range is 100 meters. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 60 Power on pins: 1,2,7,8 (-), 3,4,5,6 (+) Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 2 Output Voltage [V]: 55 Physical characteristics LED indication: Yes Operating temperature [°C]: -30 to 55 Weight [g]: 460 Width [mm]: 85 Height [mm]: 208 Depth [mm]: 46
