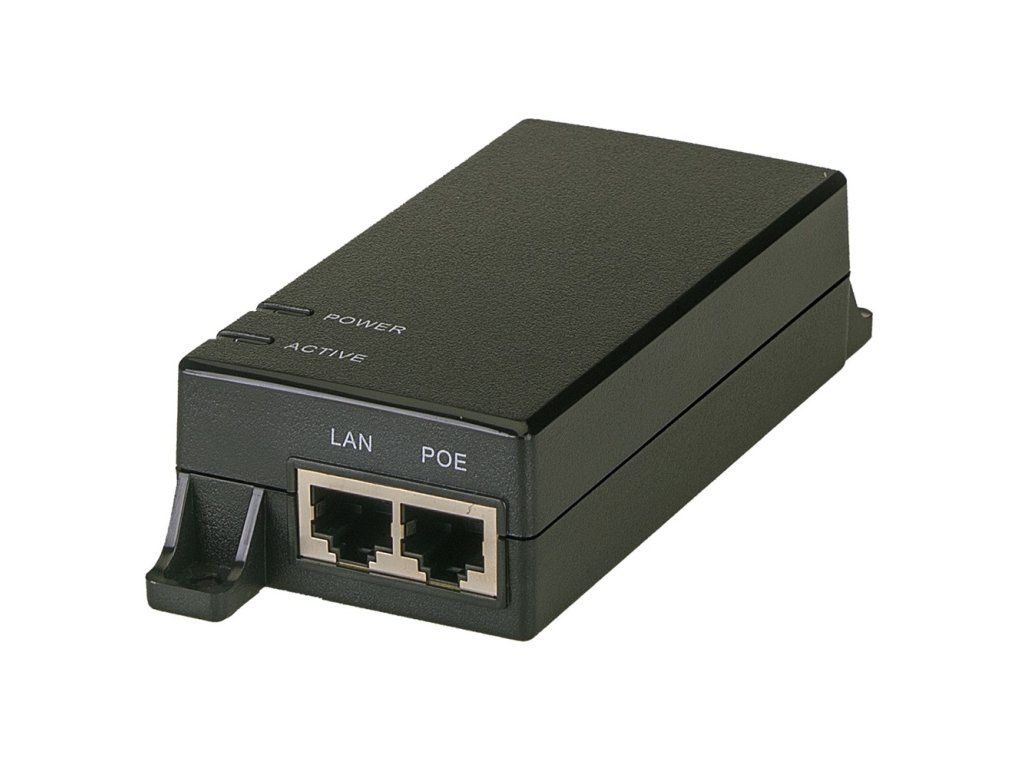

MaxLink PI15 PoE injector - 802.3af, 48V, 0.32A, 15.4W, 1Gbit, power cable

Product detailed description

MaxLink PI15 is a high quality Gigabit POE injector with one POE output port for powering 802.3af-enabled devices with a maximum power consumption of up to 15.4W. The power supply is routed over wires 4.5 (+) and 7.8 (-). The power injector is especially suitable for powering IP cameras, VoIP phones, etc. The power cable is included in the package. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 15.4 Power on pins: 4.5 (+), 7.8 (-) Supported PoE-Out Standards: 802.3af Number of PoE Out ports: 1 Output Voltage [V]: 48 Physical characteristics LED indication: Yes Operating temperature [°C]: -5 to 45 Weight [g]: 151 Width [mm]: 56 Height [mm]: 33 Depth [mm]: 134
