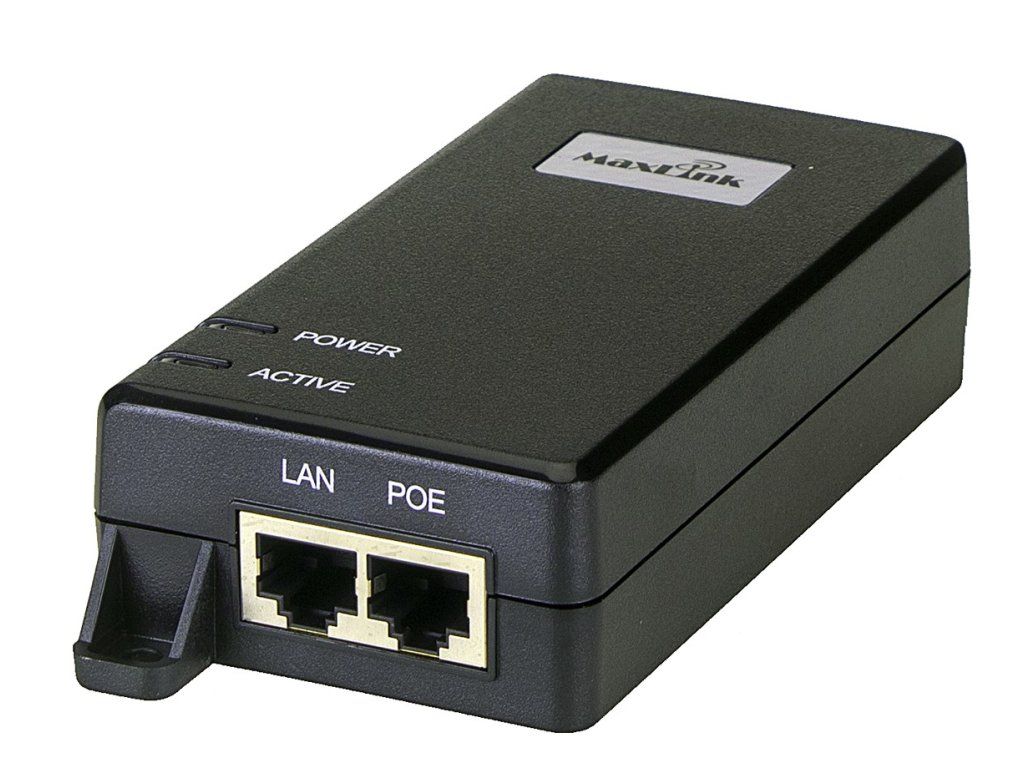

MaxLink PI30 PoE injector - 802.3af/at, 55V, 550mA, 30W, 1Gbit

Product detailed description

MaxLink PI30 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at enabled devices with a maximum power consumption of up to 30W. The power supply is routed over wires 4.5 (+) and 7.8 (-). The power injector is especially suitable for powering IP cameras, VoIP phones, etc. The power cable is included in the package. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 30 Power on pins: 4.5 (+), 7.8 (-) Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 1 Output Voltage [V]: 55 Physical characteristics LED indication: Yes Operating temperature [°C]: -5 to 45 Weight [g]: 200 Width [mm]: 63 Height [mm]: 33 Depth [mm]: 140
