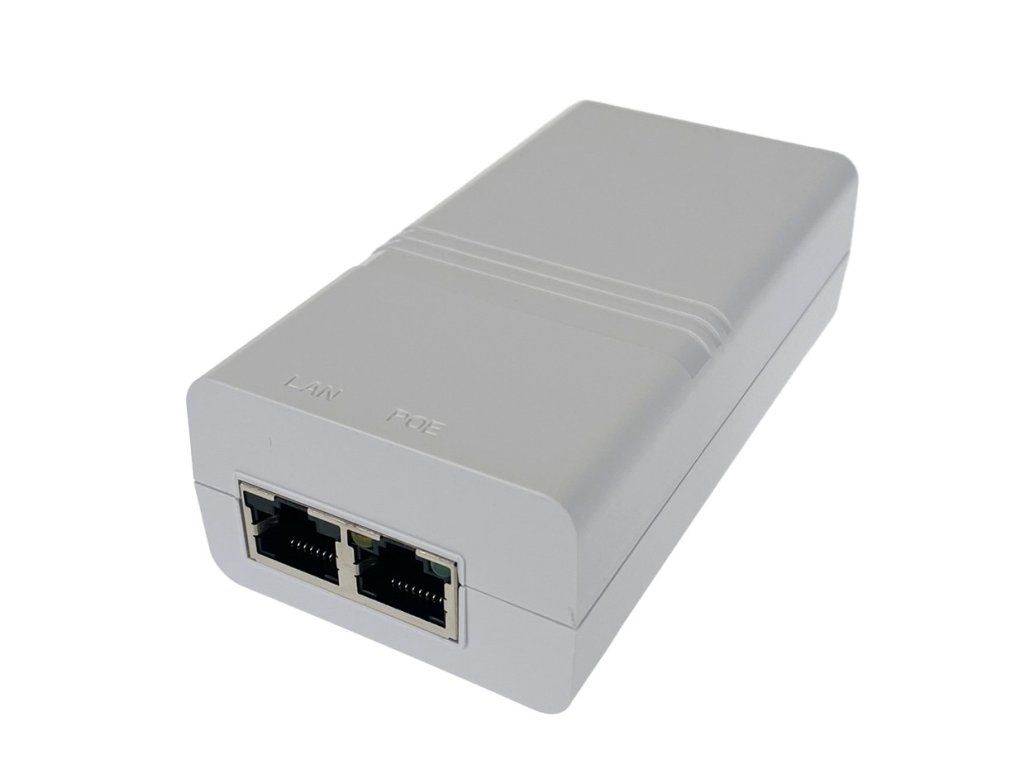

MaxLink PI30W PoE injector - 802.3af/at, 52V, 580mA, 30W, 1Gbit, white

Product detailed description

The MaxLink PI30W is a high quality white Gigabit POE injector with one POE output port for powering 802.3af/at enabled devices with a maximum power consumption of up to 30W. The power supply is routed over wires 4.5 (+) and 7.8 (-). The power injector is especially suitable for powering IP cameras, VoIP phones, etc. The power cable is included in the package. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 30 Power on pins: 4.5 (+), 7.8 (-) Supported PoE-Out standards: 802.3af, 802.3at Number of PoE Out ports: 1 Output Voltage [V]: 52 Physical characteristics LED indication: Yes Operating temperature [°C]: 0 to 40 Weight [g]: 185 Width [mm]: 56 Height [mm]: 34 Depth [mm]: 107
