MaxLink PI60v2 PoE injector - 802.3af/at/bt, 55V, 1.1A, 60W, 1Gbit, power cable

Product detailed description

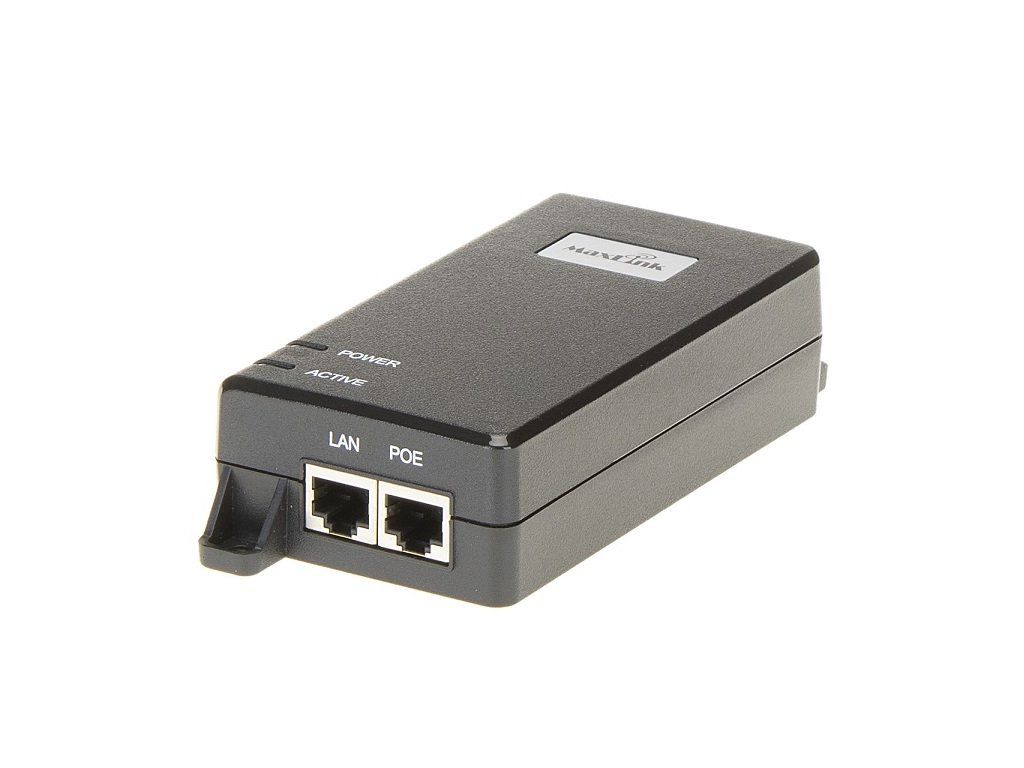

MaxLink PI60v2 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt enabled devices with a maximum power consumption of up to 60W. For better current load distribution, the power supply runs over all 4 pairs of wires. A power cord is included. Technical parameters Product Type Physical characteristics Operating temperature [°C]: -10 to 45 Weight [g]: 255 Depth [mm]: 146 Width [mm]: 66 Height [mm]: 34 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power Power on pins: 1,2,7,8 (-), 3,4,5,6 (+) Output Power - 1port [W]: 60 LED indication: Yes Supported PoE-Out standards: 802.3af, 802.3at, 802.3bt Number of PoE Out ports: 1 Output Voltage [V]: 55
