MaxLink PI90 PoE injector - 802.3af/at/bt, 55V, 1.75A, 95W, 1Gbit, power cable

Product detailed description

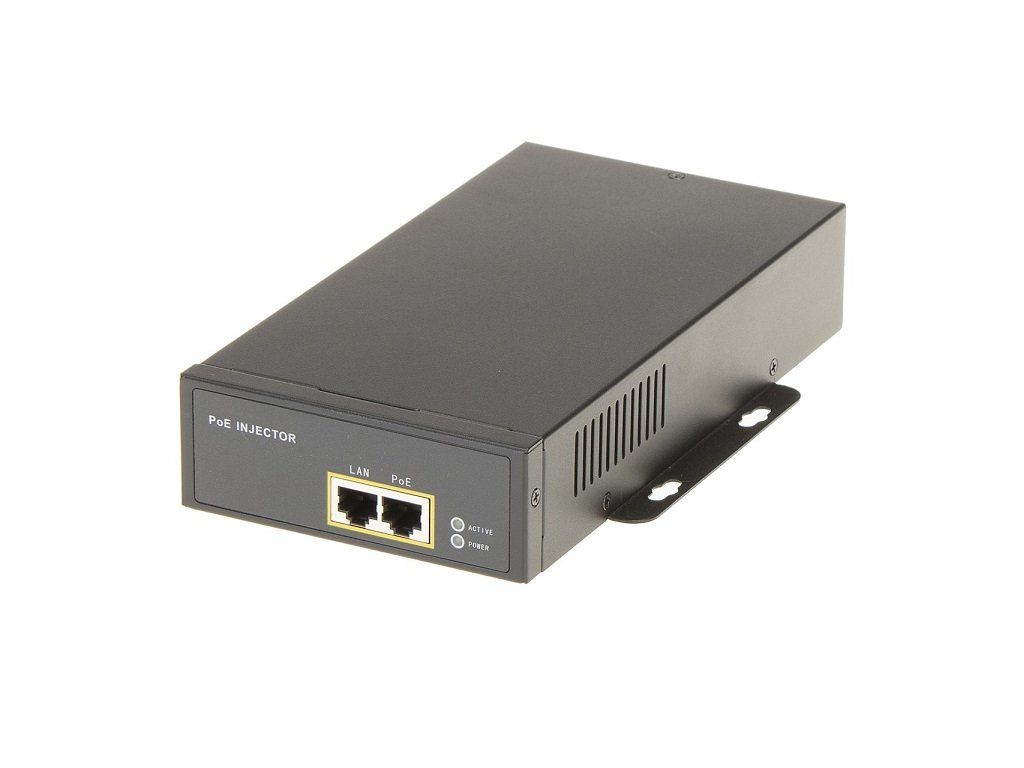

MaxLink PI90 is a high quality Gigabit POE injector with one POE output port for powering 802.3af/at/bt enabled devices with a maximum power consumption of up to 95W. For better current load distribution, the power supply runs over all 4 pairs of wires. Can also be installed in outdoor cabinets due to the wide temperature operating range. A power cord is included in the package. Technical parameters Product Type Physical characteristics Operating temperature [°C]: -40 to 65 Weight [g]: 1070 Depth [mm]: 214 Width [mm]: 134 Height [mm]: 41 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power Power on pins: 1,2,7,8 (-), 3,4,5,6 (+) Output Power - 1port [W]: 95 LED indication: Yes Supported PoE-Out standards: 802.3af, 802.3at, 802.3at - ultra PoE (60W), 802.3bt Number of PoE Out ports: 1 Output Voltage [V]: 55
