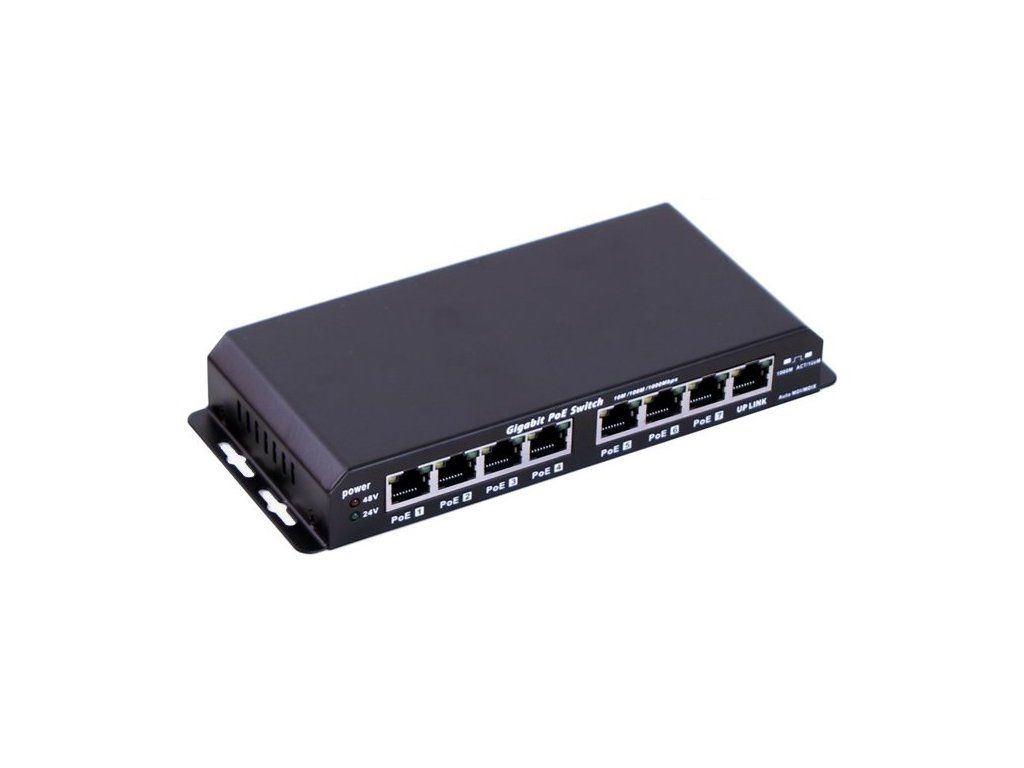

MaxLink POESG-8-7P, 8x GLAN, 7x PoE + power adapter 24V 2.5A

Product detailed description

We would like to introduce a very versatile, very compact desktop (rack mount option) non-manageable PoE switch called POESG-8-7P. This switch has 8x 10/100/1000Mbps ports, and you can use the PoE Out function on seven ports to connect/power any active PoE-enabled device. Features 8-port 10/100/1000Mbps switch 7 ports with PoE capability - Mode A or Mode B Mode A uses conductors 1,2,3,6 for power conduction Mode B uses cores 4,5,7,8 for power conduction Current protection on each port - Mode A (650 mA/port), Mode B (1000 mA/port) Maximum total current 2.5A Wide range of input/output voltage - 18V - 56V DC (24V adapter included), output voltage is the same for both modes Option to select POE Mode A / Mode B / OFF for each port separately Specifications Output voltage: 18 to 56 V, max 90 W Supported standards: Passive (24 and 48 V) Power cores: 1, 2 and 3, 6 (Mode A), 4, 5 and 7, 8 (Mode B) Data rate: 10/100/1000 Mbps Connectors: 8x RJ45 Operating temperature: 0 to 40°C (32 to 104°F) Storage temperature: -40 to 70°C Operating Humidity: 10% to 80% Storage Humidity: 5% - 90% Certification: CE & FCC Chassis: metal Dimensions: 192 × 82 × 27 mm Package contents Device Power adapter 24V / 2.5A Power cable
