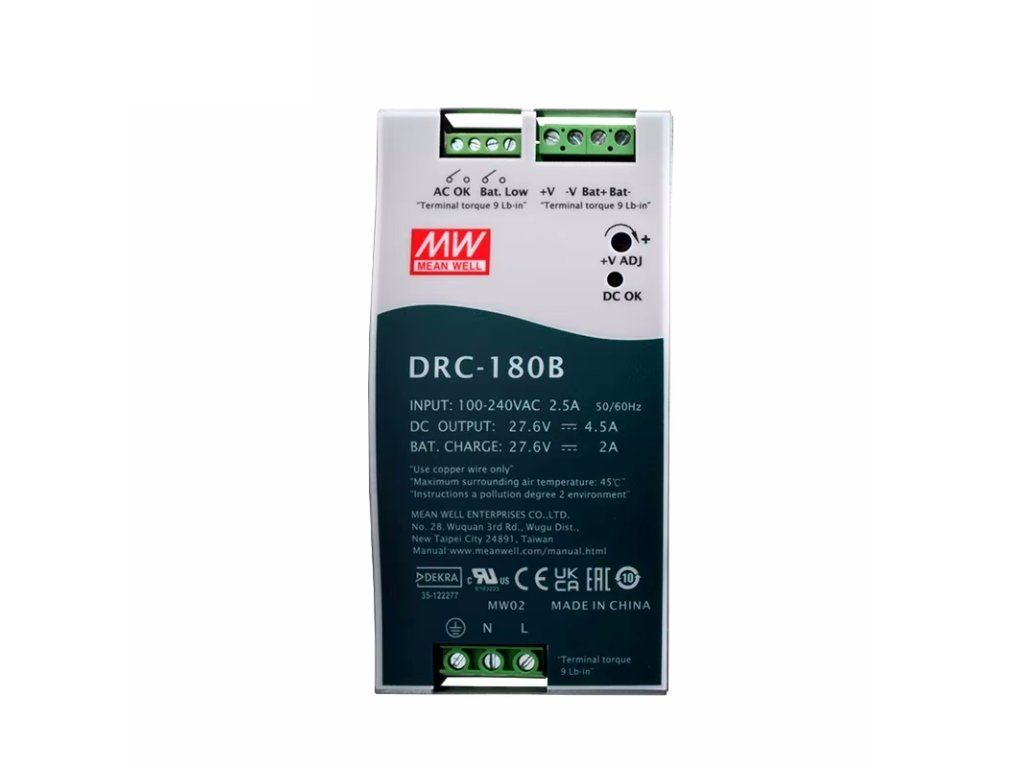

MEAN WELL DRC-180B Power supply with 24V DIN rail charger function

Product detailed description

MeanWell professional switching power supply with DIN rail charging function with extended operating temperature range and 24V output voltage for active elements with corresponding power range. Main features: - 90% efficiency - Operating temperature: -20 ~ +70°C - Protection: overtemperature protection, overvoltage protection, overload protection - MTBF: 1536.3 Khrs min. - Dimensions: 63 x 125.2 x 115 mm - Weight: 0.71 kg - Active PFC function - LED indicator - Can be used for DIN TS-35/7.5 or 15 Use for security systems, alarms, UPS systems, central monitoring systems, etc Technical parameters: - Power supply type: switching - Power supply type: DIN rail mounted, buffered - Power: 0.18kW - Output voltage: 27.6V DC - Output voltage 2: 27.6V DC - Output current: 4.5A - Output current 2: 2A - Electrical connection: terminal block - Mounting: on DIN rail - External dimensions: 63x125,2x115mm - Number of outputs: 2 - Operating temperature: -20...70°C Protection: - OCP - Over Current Protection - OPP - Over Power Protection - OVP - Under Voltage Protection - SCP - Short Circuit Protection - OTP - Over Temperature Protection - BOP - Brown-Out Protection - Battery polarity, overload protection OPP, over discharge protection, over temperature protection OTP, over voltage protection OVP, short circuit protection SCP
