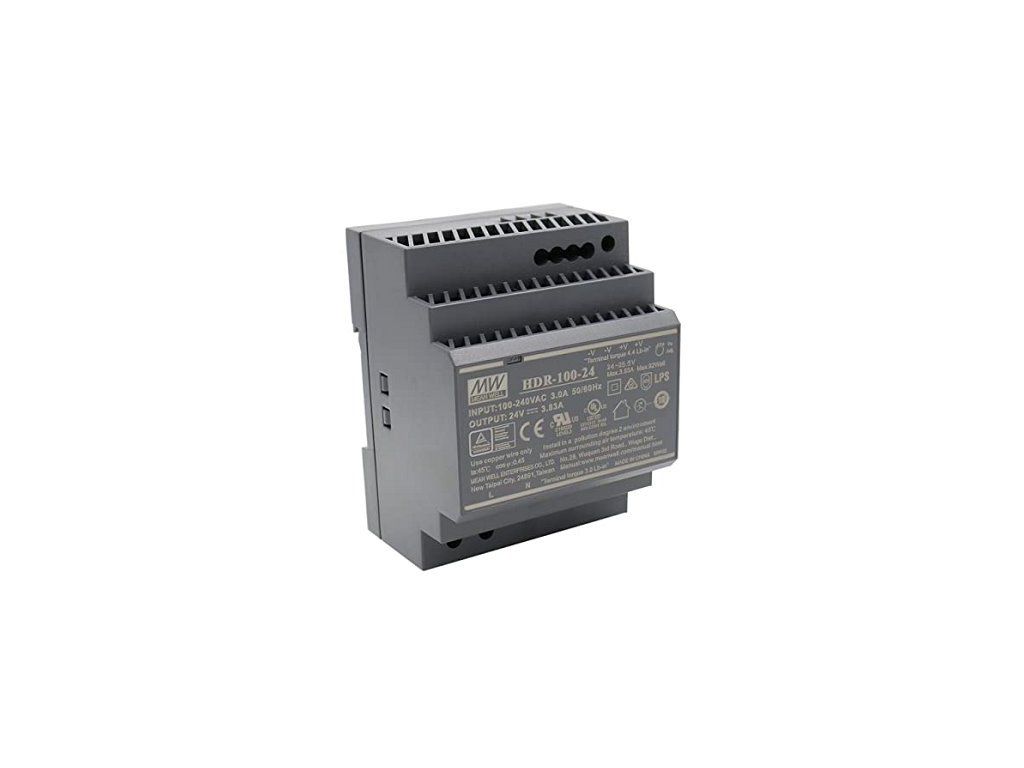

MEAN WELL HDR-100-24 industrial power supply 24V 3,83A on DIN rail

Product detailed description

The HDR-100 series are affordable ultra-thin power supplies. The HDR-100-24 model provides a DC output voltage of 24V with an adjustable range of 21.6V - 29V. It mounts on both TS-35/7.5 and TS-35/15 DIN rails, where it takes up 70mm in width (equivalent to 4SU). The power supply is ready for a wide input voltage range from 85VAC to 264VAC and complies with the European standard EN 61000-3-2. The outer casing of the power supply is made of plastic, which effectively protects against electric shock. With an efficiency of up to 90%, the power supply is capable of operating in a temperature range of -30°C to 70°C. Thanks to the constant current supply and overload protection, it has a wide range of applications in both domestic and industrial installations.
