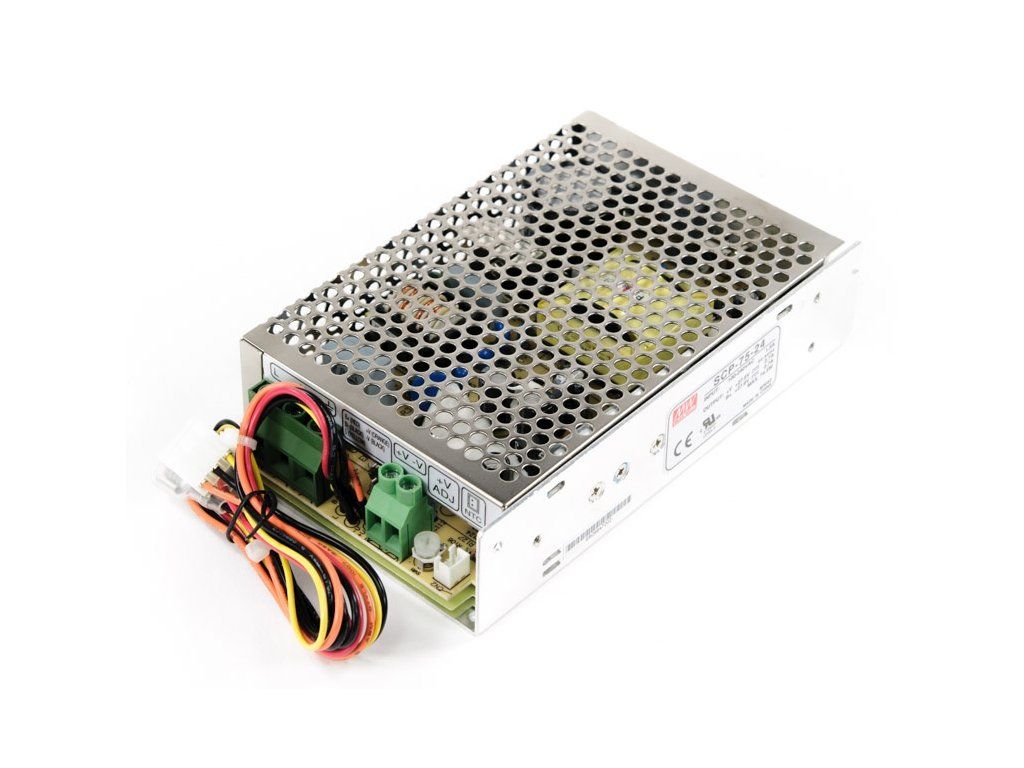

MEAN WELL SCP-75-24 Switching power supply with charger function (UPS) 75W 27,6 V, box

Product detailed description

Backup power supply 75W 24V with wide input voltage range. High reliability (MTBF 461200 hours)!! The power supply is used to power 24V appliances and also powers a 24V lead acid battery (not included). In case of power failure, the appliance is powered by the battery. Since the battery is connected directly to the appliance, zero switching time is guaranteed. Ideal for powering DC devices such as wifi, security devices, alarms, etc. TECHNICAL PARAMETERS Output: 27.6V DC, adjustable between +15% and -5% Output current: 2.7A Ripple: 200mVp-p Output power: 74.5W Input Voltage: 85-564VAC (47-63Hz) or 120-370VDC Efficiency: 85% Input current: 1.5A (115VAC), 0.9A (230VAC) Operating temperature -20- +60°C (-4- +60°F) Humidity: 20-90% non-condensing Safety and standards please see datasheet Mean Time Between Failure (MTBF): 461,200 hours ...approx. 54 years Dimensions: 159/97/38mm Weight: 0.5Kg Technical parameters Physical characteristics Construction Power input and output Operating Temperature [°C]: -20 to 60 Weight [g]: 500 Power supply Charging function: Yes Power [W]: 75 Output voltage [V]: 27.6 Output current [A]: 2.7 Efficiency [%]: 85
