MHPower active 10G PoE injector with 802.3af/at/bt support

Product detailed description

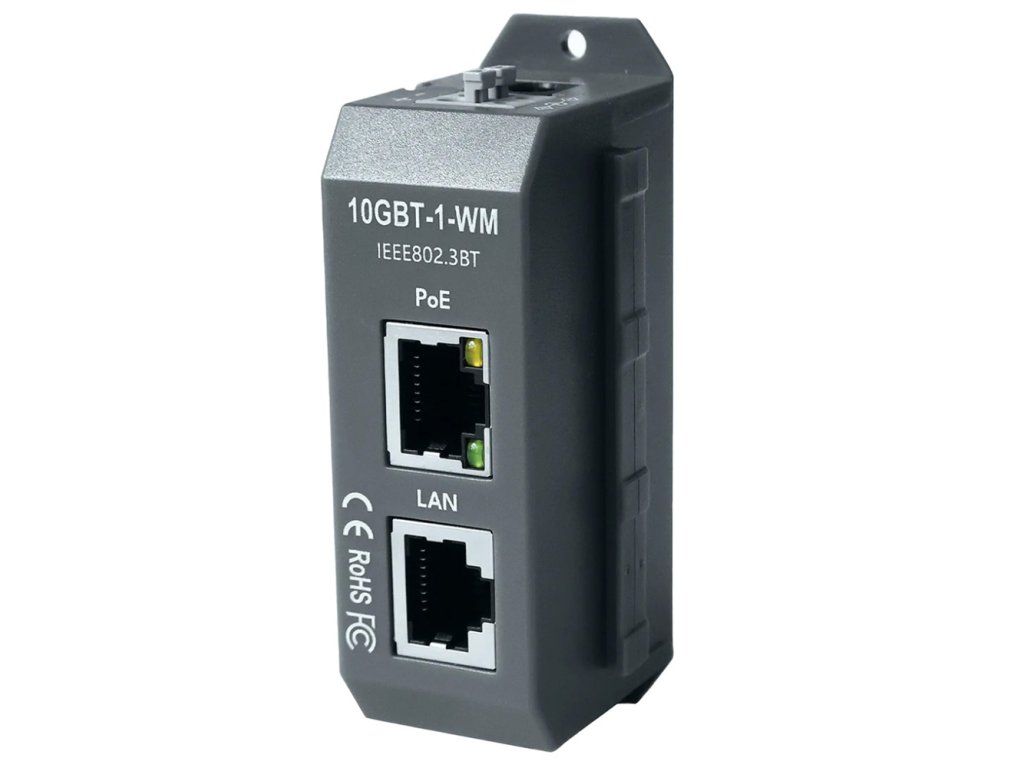

The MHPower 10GBT-1-WM is a simple active PoE injector with support for 802.3af/at/bt standards as well as 10G Ethernet (10/100M/1/2.5/10G). It is equipped with a pair of shielded Ethernet connectors (1x input, 1x output) and power is supplied in 4 pairs (2-pair power is supported). The injector is not equipped with a voltage converter, the output voltage is identical to the input voltage. Using an input voltage of 56V, the injector is capable of delivering up to 90W of power. The current limit per port is max. 1.61 A. Power can be supplied via a standard 5.5/2.1mm DC connector or via a terminal block that accommodates AWG16-20 gauge wires. Thanks to the ingenious design, the injectors can be combined into compact units and mounted not only on the wall but also on a DIN rail. A DIN rail bracket is included. Technical parameters Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000/2500/10000 Gigabit LAN: Yes Power supply Output power - 1port [W]: 90 Power on pins: 1,2,4,5 (+), 3,6,7,8 (-) Supported PoE-Out standards: 802.3af, 802.3at, 802.3bt Number of PoE Out ports: 1 Output Voltage [V]: 48 .. 57V DC 24 VDC - 50 VDC - 50 VDC - 50 VDC - 100 VDC Physical characteristics LED indication: Yes Operating temperature [°C]: 0 to 50 Width [mm]: 30 Height [mm]: 88 Depth [mm]: 42
