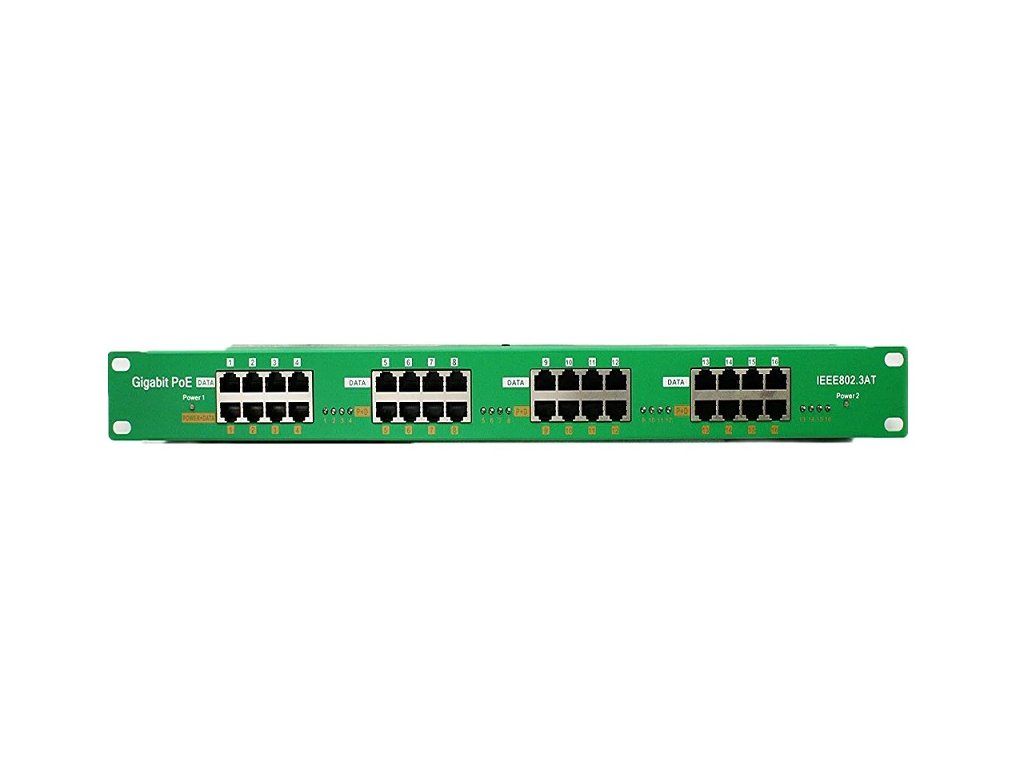

MHPower POE-PAN16-GB-AF/AT Gigabit shielded 16-port PoE panel, 802.3af/at

Product detailed description

Panel integrating sixteen gigabit shielded active POE injectors with a power range of 48V (802.3af) - 57V (802.3at). A versatile solution for remotely powering multiple active elements with an integrated extractor over UTP cabling. Power input via two standard 2.1mm power jacks or via panel connectors with terminal block. If a power adapter is connected to only one of the power inputs, all 16 ports are powered. If power adapters are connected to both power inputs, ports 1-8 are powered from the first input and ports 9-16 are powered from the second input. Maximum power output 30W per port. By adding this pass-through panel to the rack, you get a power center that simply plugs in between an existing switch and a patchpanel that already leads to a powered device (IP camera, IP phone, wireless elements, etc.). Power pairs: 3.6 (positive pole) / 1.2 (negative pole) Interface: 16x shielded RJ45 connector for LAN (Data) connection 16x shielded RJ45 connector for merged output (Data+Power) LED indication: 16x LEDs for each pair of ports indicating the connected active element (blue) 2x LEDs indicating connection on PoE power inputs (48V - green, 56V - yellow) Current protection: - 315mA current fuse on each port when using 802.3af active elements - 650mA current fuse on each port when using active 802.3at elements Power supply is not included, power supply selection and performance parameters should be optimized according to the respective power consumption of the powered elements and their configuration. Maximum allowed power supply input power values to the POE panel: 48/56V 220W Technical specifications: Input : 2x jack 44-57V DC 2.1MM Maximum input voltage : 57V/input Maximum input power: 220W/input Output : 44-57V (max 550mA per port) Data: 1/2&3/6&4/5&7/8 Power: 3/6 & 1/2 Data In :Connects PC/HUB/Switch Weight : 200g Dimensions : 180mm×62mm×25mm Ethernet : TIA/EIA 568 Cat5E, Cat6E Data rate : 10/100/1000Mbps Supported standards : 802.3af/at, NFPA standard 79 RJ-45 connector type Operating temperature range : 0°C ~ +50°C Storage temperature range : 0°C ~ +50°C Humidity (operating) : 5% ~ 90% non-condensing Compliance: CE certified
