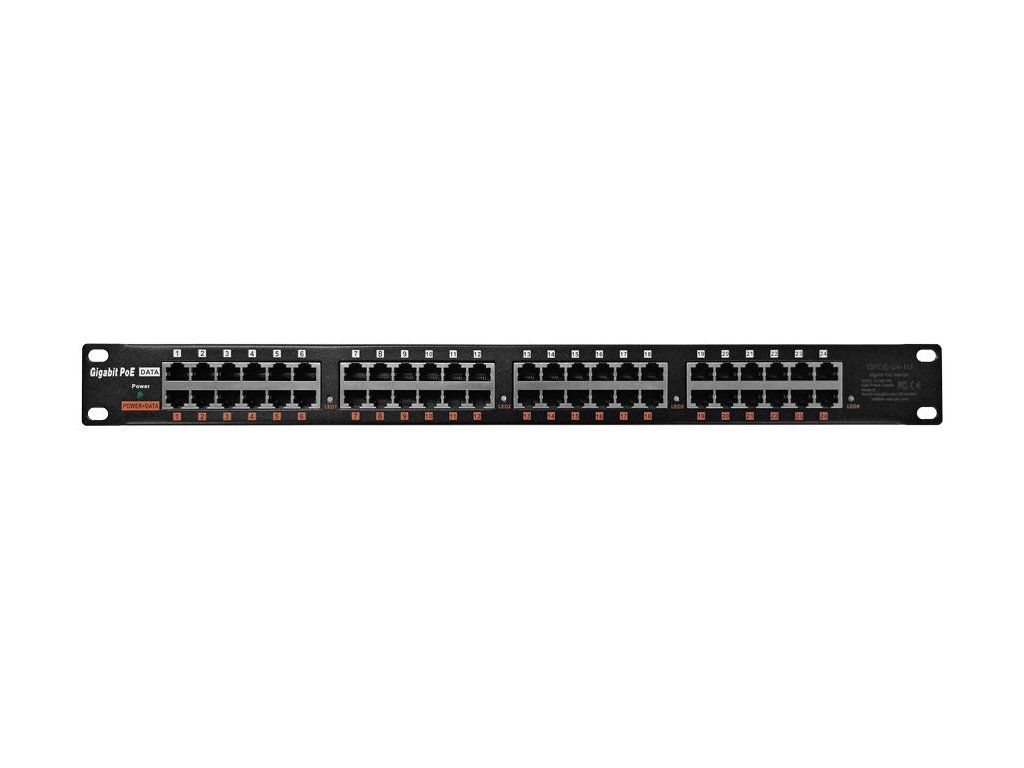

MHPower POE-PAN24-GB Gigabit Shielded 24-Port POE Panel

Product detailed description

Panel in a 19" rack integrating 24 gigabit shielded passive POE injectors with a power range of 24 - 56V. Universal solution for remote power supply of multiple active elements with integrated extractor over UTP cabling. Reversible current fuse up to 650mA (+/-15%) on each port, grounding led to casu. Three-stage LED indication of current values on four groups of ports: - 0 - 20mA (no load) - 20 - 400mA (green led) - Higher than 400mA (red led) Adding this pass-through panel to the rack provides a power center that simply plugs between an existing switch and a patchpanel that already leads to the device to be powered (IP camera, IP phone, wireless elements, etc.). Power input via two 2.1mm 60V jacks. If a power adapter is connected to only one of the power inputs, all 24 ports are powered. If power adapters are connected to both power inputs, ports 1-12 are powered from the first input and ports 13-24 are powered from the second input. The PoE panel operates in B mode: The panel is therefore compatible with active elements with integrated POE injector using pins 4/5+ and 7/8- for power supply (such as active elements MIKROTIK, UBIQUITI). (It does not support powering active elements using pins 1/2- and 3/6+ for power supply, such as IP, cameras, IP phones, CISCO active elements, etc.) The power supply is not included in the scope of delivery, the choice and power parameters of the power supply must be optimized according to the respective power consumption of the powered elements and their configuration. Maximum allowed power input to the POE panel: 24V: 576W (24A) 48V: 1152W (24A) Warning: You cannot combine the wiring of Ubiquiti 100Mbps products requiring a 24V supply and products requiring a 48V supply due to the different POE port behavior of Ubiquiti devices powered by 24V from, for example, the port behavior of MikroTik products. Functions and Features: - 19" design - 24 ports with passive PoE support - LED indicator light to detect a working power adapter - Reversible current fluctuation protection (OCP protection 650mA) on each port - 2 power input connectors - standard 2.1/5.5mm jack - Input voltage 24-56V, maximum power 150W - Max. output current per port 30W Technical specifications - Input: 24-56V/ 150W (2x 2.1 60V power jack) - Data: 1/2 & 3/6 & 4/5 & 7/8 - Power: A) 1/2- & 3/6+ B) 4/5+ & 7/8- - Weight: 1.4Kg - Dimensions: 482.6mm×44.3mm×52mm - Ethernet: TIA/EIA 568 Cat5E, Cat6E - Standards: passive PoE - Data rate: 10/100/1000Mbps - Connectors: 24x shielded GB RJ-45 - Operating Temperature: 0°C ~ 50°C - Storage Temperature: -40°C ~ +70°C - Operating Humidity: 10% ~ 80%RH - Storage Humidity: 5% ~ 90%RH - Certifications: CE
