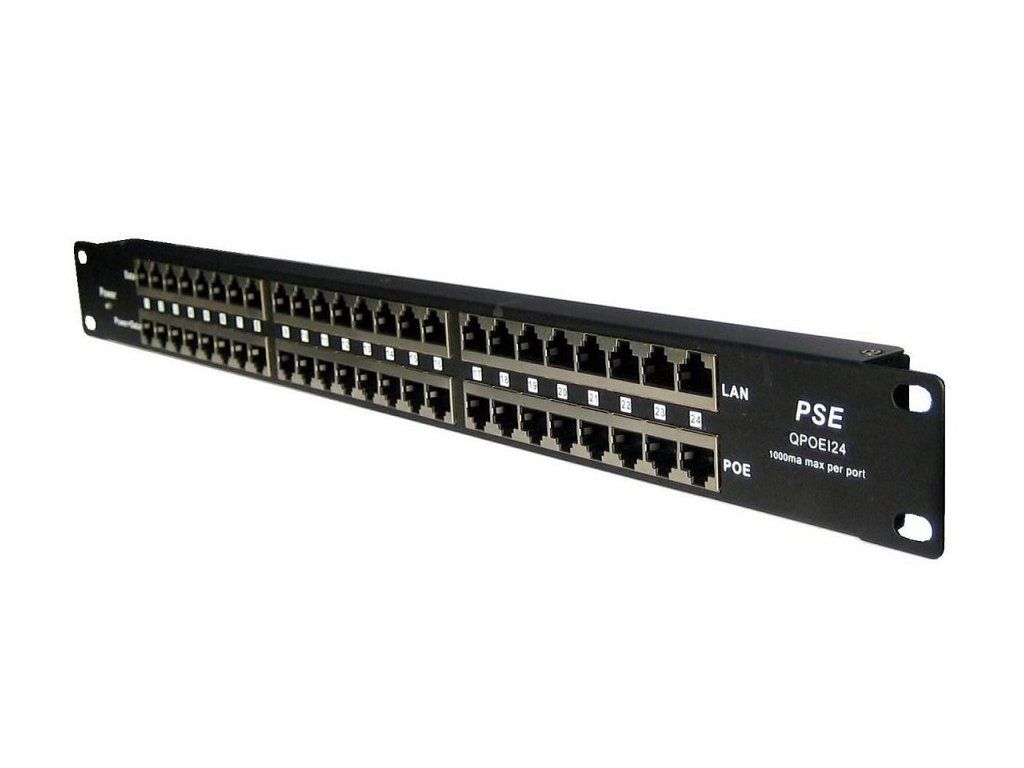

MHPower POE-PAN24 shielded 24-port passive POE panel

Product detailed description

Panel integrating 24 passive PoE injectors into a single 19"/1U panel suitable for powering up to 24 devices. Professional solution for remote power supply of multiple active devices with passive PoE support. Important features - 19" design - 24 ports with passive PoE support - LED indicator light to detect a working power adapter - Ground screw on back panel for surge suppression - Reversible current swing fuse (OCP protection 650mA) on each port - Power input connector - standard 2.1/5.5mm jack Usage The RJ45 connectors labeled "DATA" on one side are used to connect Ethernet ports without power (e.g. switch) and the opposite side "POWER + DATA" is used to connect devices using power over the Ethernet cable. POE-PAN24 is compatible with active elements using pins 4/5+ pins7/8- for power supply. Especially suitable for MikroTik and Ubiquiti brand elements. Power supply performance optimized according to the devices used and their configuration.
