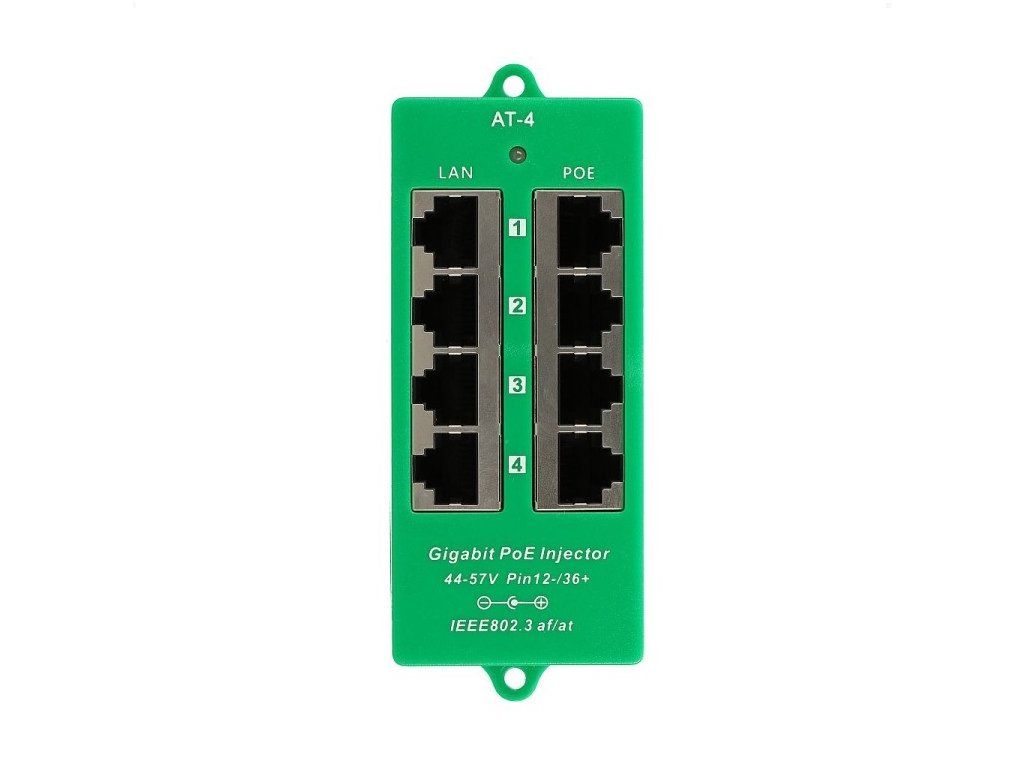

MHPower POE-PAN4-GB-AF/AT Gigabit Shielded 4-port PoE Panel, 802.3af/at

Product detailed description

Panel integrating four gigabit POE injectors with a power range of 44-57V and a maximum current of 550mA/port with support for 802.3af/at. Universal solution for remote power supply of multiple active elements with integrated extractor over UTP cabling. Power input via standard 2.1mm power jack. Adding this pass-through panel to the rack gives you a power center that simply plugs between an existing switch and a patchpanel that already leads to the powered device (IP camera, IP phone, wireless elements, etc.). Power pairs: 3.6 (positive pole) / 1.2 (negative pole) Interface: 4x shielded RJ45 connector for connection to LAN (Data) 4x shielded RJ45 connector for merged output (Data+Power) LED indication: Power OFF -- no signaling 4/5 (V+),7/8 (V-) -- green The power supply is not included, the choice and power parameters of the power supply must be optimized according to the respective power consumption of the powered elements and their configuration. Technical specifications: Input : 44-57V DC 2.1MM Output : 44-57V (max 550mA per port) Data: 1/2&3/6&4/5&7/8 Power: 3/6 & 1/2 Data In :Connects PC/HUB/Switch Weight : 70g Dimensions : 115mm×45mm×25mm Ethernet : TIA/EIA 568 Cat. 5 Data rate : 10/100/1000Mbps 802.3af/at standard Connector type : RJ-45 Operating temperature range : 0°C ~ +50°C Storage temperature range : 0°C ~ +50°C Humidity (operating) : 10% ~ 80% RH Humidity (storage) :5% ~ 90% RH Certification : CE , FCC
