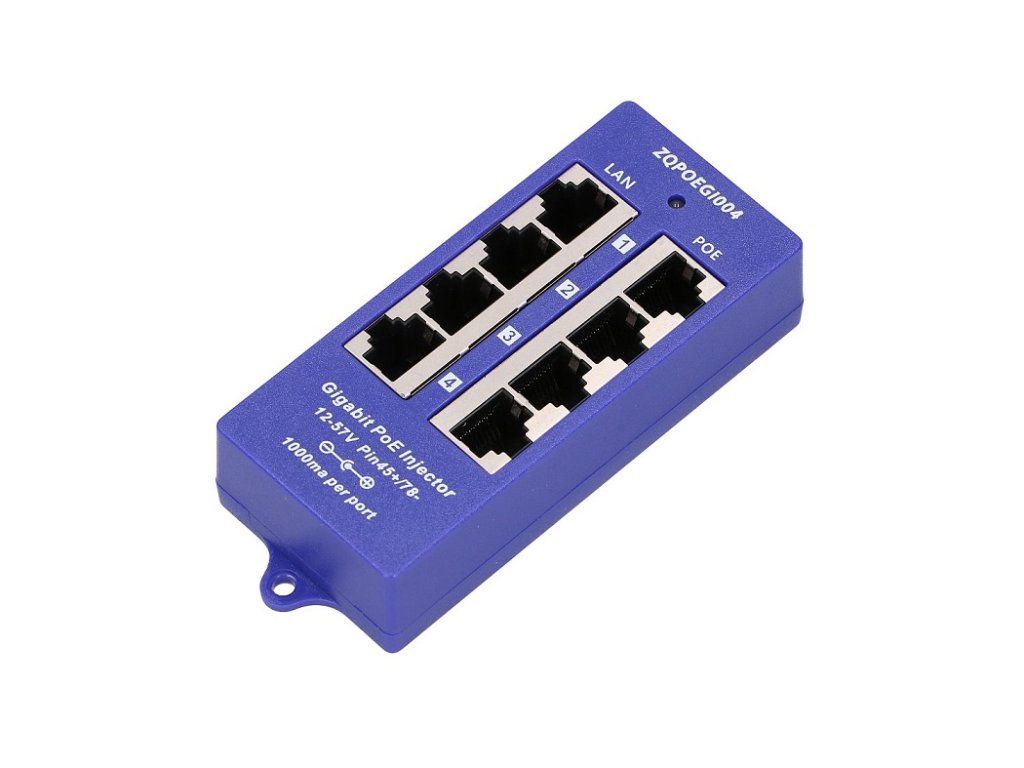

MHPower POE-PAN4-GB Gigabit Shielded 4-port PoE Panel

Product detailed description

Panel integrating four gigabit passive POE injectors with a power range of 12-57V and a maximum current of 1000mA/port. Universal solution for remote power supply of multiple active elements with integrated extractor over UTP cabling. Power input via standard 2.1mm power jack. Adding this pass-through panel to the rack gives you a power center that simply plugs between an existing switch and a patchpanel that already leads to the powered device (IP camera, IP phone, wireless elements, etc.). Two unused pairs of Ethernet cable are used for power supply. Power pairs: 4.5 (positive pole) / 7.8 (negative pole) Interface: 4x shielded RJ45 connector for LAN (Data) connection 4x shielded RJ45 connector for merged output (Data+Power) LED indication: Power OFF -- no signaling 4/5 (V+),7/8 (V-) -- green 4/5 (V-),7/8 (V+) -- red The power supply is not included in the scope of delivery, the choice and power parameters of the power supply must be optimized according to the respective power consumption of the powered elements and their configuration. Technical specifications: Input : 12-57V DC 2.1MM/Phoenix DC connector Output : 12-57V (max 1A per port) Data: 1/2&3/6&4/5&7/8 Power: 4/5 & 7/8 Data In :Connects PC/HUB/Switch Weight : 85g Dimensions : 115mm×45mm×25mm Ethernet : TIA/EIA 568 Cat. 5 Data rate : 10/100/1000Mbps Connector Type : RJ-45 Operating temperature range : 0°C ~ +40°C Storage temperature range : -40°C ~ +70°C Humidity (operating) : 10% ~ 80% RH Humidity (storage) :5% ~ 90% RH Certification : CE , FCC
